Stamina 1725 Owner's Manual

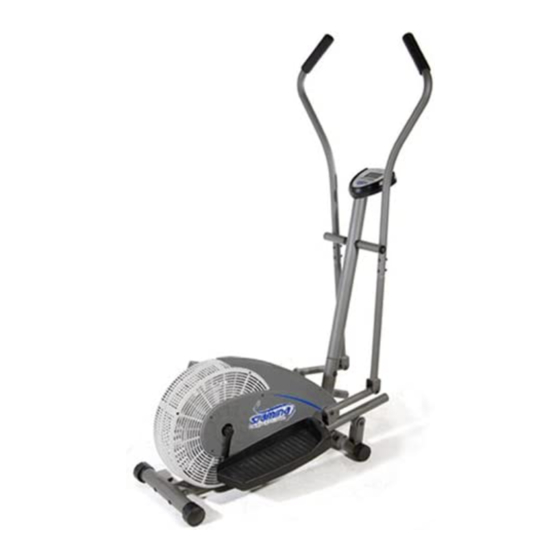

Air cross trainer elliptical
Hide thumbs Also See for 1725:
Table of Contents

Advertisement

Quick Links

Download this manual
CAUTION:
Weight on this product should not exceed 250 lbs.
2009, 05
This Product is Produced Exclusively by
2040 N. Alliance, Springfield, MO 65803
Customer Service
1 (800) 375-7520
www.staminaproducts.com
Owner's
Manual
WARNING
Exercise can present a health
risk. Consult a physician
before beginning any exercise
program with this equipment.
If you feel faint or dizzy,
immediately discontinue use
of this equipment. Serious
bodily injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur if
all instructions are not followed.
Keep others and pets away
from equipment when in use.
Always make sure all bolts and
nuts are tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify the
following number :
Model#: 55-1725
STAMINA PRODUCTS
MADE IN CHINA
Product May Vary Slightly
From Pictured.
2009 Stamina Products, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1725 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stamina 1725

Summary of Contents for Stamina 1725

  • Page 1 MADE IN CHINA Weight on this product should not exceed 250 lbs. Product May Vary Slightly From Pictured. This Product is Produced Exclusively by 2040 N. Alliance, Springfield, MO 65803 Customer Service 1 (800) 375-7520 www.staminaproducts.com 2009, 05 2009 Stamina Products, Inc.

  • Page 2: Table Of Contents

    The Air Cross Trainer 1725 Elliptical should not be used by persons weighing over 250 pounds. The Air Cross Trainer 1725 Elliptical should be used by only one person at a time. The Air Cross Trainer 1725 Elliptical is for consumer use only. It is not for use in public or semipublic facilities.

  • Page 3: Customer Service

    Air Cross Trainer 1725 Elliptical To help you get started, we have pre-assembled most of your Air Cross Trainer 1725 Elliptical at the factory with the exception of those few parts left unassembled for shipping purposes. Simply follow the few assembly instructions set forth in this manual.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for choosing the Air Cross Trainer 1725 Although Stamina constructs its products with the Elliptical. We take great pride in producing this finest materials and uses the highest standards of quality product and hope it will provide many hours...

  • Page 5: Equipment Warning & Notice Labels

    EQUIPMENT WARNING & NOTICE LABELS This chart is provided to help identify the warning & notice labels on the Air Cross Trainer 1725 Elliptical. Please take a moment to familiarize yourself with all of the warning & notice labels. Label is larger than actual size...

  • Page 6: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 7: Assembly Instructions

    STEP 2 Attach the REAR STABILIZER(3) to the MAIN FRAME(1) with CARRIAGE BOLTS(M8x1.25x65mm)(64), ARC WASHERS(M8)(89), LOCK WASHERS(M8)(91), and ACORN NUTS(M8x1.25)(87). NOTE: You can adjust the LEVELING CAPS(63) on the REAR STABILIZER(3) to keep the Air Cross Trainer 1725 Elliptical stable.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 3 Plug the SENSOR WIRE(35) firmly into the SENSOR CONNECTION WIRE(34). Plug the LOWER CONTROL WIRE(99) firmly into the CONTROL WIRE(98). CAUTION: Be careful not to damage the SENSOR WIRES(34, 35) and CONTROL WIRES(98, 99) when assembling the UPRIGHT(6). STEP 4 Insert the UPRIGHT(6) into the MAIN FRAME(1) and secure with BUTTON HEAD BOLTS(M8x1.25x15mm) (65), ARC WASHERS(M8)(89), and LOCK WASHERS(M8)(91).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5 NOTE: 1. There is an “L” decal on the LEFT PEDAL ARM(4), and an “R” decal on the RIGHT PEDAL ARM(5). 2. The RIGHT PEDAL SHAFT(46) has right hand threads and is tightened by turning clockwise. The LEFT PEDAL SHAFT(45) has left hand threads and is tightened by turning counterclockwise.
  • Page 10 ASSEMBLY INSTRUCTIONS Look down from the top Pivot Tube Shaft Pivot Tube STEP 7: There is a "L" decal on the LEFT HANDLEBAR(7), and a "R" decal on the RIGHT HANDLEBAR(8). To assemble the RIGHT HANDLEBAR(8), place a SPACER(56) and a LARGE WASHER(M16)(57) onto the right side of the SHAFT on the UPRIGHT(6).
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 10 Install four AA batteries into the METER(33). Four batteries are included. See page 14 for detailed battery installation instructions. Connect the SENSOR CONNECTION WIRE(34) and the CONTROL WIRE(98) to the EXTENSION WIRES on the METER(33). Push the excess wires back into the UPRIGHT(6). Attach the METER(33) to the plate on the UPRIGHT(6) with ROUND HEAD SCREWS(M5x0.8x15mm)(77).

  • Page 12: Set Up Instructions

    SET UP INSTRUCTIONS Place the Air Cross Trainer 1725 Elliptical in the area where it will be used. It is recommended that the Air Cross Trainer 1725 Elliptical be placed on an equipment mat. The maximum operation dimensions of the Air Cross Trainer 1725 Elliptical are approximately 41 1/2 inches long x 21 1/4 inches wide x 57 3/4 inches tall.

  • Page 13: Operational Instruction

    EXERCISE WORKOUT To start using the Air Cross Trainer 1725 Elliptical simply stand on the foot pedals with the front of your shoes close to the front edge of the pedal cap. Place your hands at a comfortable position on the handlebars.

  • Page 14: Operational Instructions

    OPERATIONAL INSTRUCTIONS USING THE FITNESS MONITOR OR METER POWER ON: Pedal movement or press any button. Automatic shut off after 4 minutes of inactivity. POWER OFF: Resets all values to zero. FUNCTION BUTTONS: / UP: Press to increase the level of the workload in anytime during workout.

  • Page 15: Storage

    Grasp the pivot tubes on the HANDLEBARS(7, 8) and REAR STABILIZER(3) to move the Air Cross Trainer 1725 Elliptical, two people are required for moving. Do not use the PEDAL ARMS(4, 5) to move the Air Cross Trainer 1725 Elliptical.

  • Page 16: Conditioning Guidelines

    CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs.

  • Page 17: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place Stretching Stretching while your muscles are warm after a proper warm-up and again after your strength...

  • Page 18: Product Parts Drawing

    PRODUCT PARTS DRAWING FRONT BACK...

  • Page 19: Parts List

    PARTS LIST PART# PART NAME Main Frame Front Stabilizer Rear Stabilizer Left Pedal Arm Right Pedal Arm Upright Left Handlebar Right Handlebar Lower Pivoting Arm Linkage Pulley and Axle Bearing (6003Z) Bearing Washer (M17) C Ring (17mm) V-Ribbed Belt Idler Arm Idler Wheel Idler Wheel Spacer (ø10.4 x ø16 x 16.5mm) Tension Spring...
  • Page 20 PARTS LIST PART# PART NAME Right Pedal Cap Round Plug (35mm) Plastic Washer (M8 x ø18 x 2mm thick) Round Plug (28.6mm) Handlebar Bushing Spacer Large Washer (M16 x 0.5mm thick) Dome Plug (38mm) Foam Grip Roller Roller Spacer Endcap (50.8mm) Leveling Cap (50.8mm) Carriage Bolt (M8 x 1.25 x 65mm) Bolt, Button Head (M8 x 1.25 x 15mm)

  • Page 21: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071, or email us at customerservice@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 22: Notes

    NOTES...

  • Page 23: Fax/Mail Ordering Form

    FAX/MAIL ORDERING FORM Please do not return the product. For your convenience, Stamina's Customer Service Department can be reached by email at customerservice@staminaproducts.com or toll free at 1-800-375-7520 (in the U.S.). Should a part be missing or a defective part found, please call us from 7:30 A.M. to 5:00 P.M. Central Time, Monday through Thursday and 8:00 A.M.
