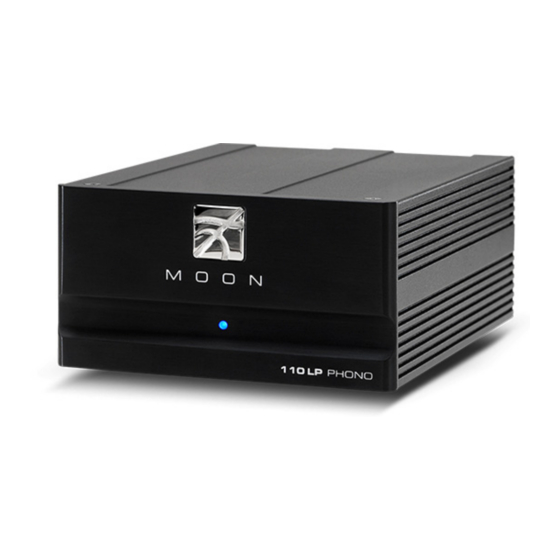

- Page 1 Owner’s Manual MOON Series 110LP Phono Preamplifier...
-
Page 2: Important Safety Instructions
MOON 110LP Phono Preamplifier Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 3 To prevent shock hazard, all three connections must ALWAYS be used. Connect the MOON 110LP only to an AC source of the proper voltage; Both the shipping box and rear panel serial number label will indicate the correct voltage. Use of any other voltage will likely damage the unit and void the warranty.
-
Page 4: Table Of Contents
MOON 110LP Phono Preamplifier Table of Contents Congratulations ..........5 Unpacking and Warnings ........5 Introduction ............ 6 Installation & Placement ........6 Circuit Board Layout ......... 7 Internal Adjustments ........8 Rear Panel Connections ........9 Operating the 110LP ........10 Specifications ..........10... -
Page 5: Congratulations
MOON audio components are so musically satisfying. The performance of your 110LP will continue to improve during the first 300 hours of listening. This is the result of a “break- in”... -
Page 6: Introduction
Low operating temperature for a longer than normal life expectancy. Installation & Placement The MOON 110LP should be placed on a solid level surface. You should avoid placing it near a heat source or inside a closed You should never cabinet that is not well ventilated as this could compromise this component’s performance and reliability. -
Page 7: Circuit Board Layout
MOON 110LP Phono Preamplifier Circuit Board Layout Figure 1: MOON 110LP Circuit Board layout Available Adjustments: A – Capacitance loading jumper B – Resistance loading jumper C – Gain level jumper ____________________________________________________________________________________ Circuit Board Layout... -
Page 8: Internal Adjustments
There are two (2) different settings available for each the resistive load and capacitive load; One for moving magnet (MM) cartridges and moving coil cartridges (MC). The 110LP has a factory default setting for an MM cartridge (refer to figure 2). -
Page 9: Rear Panel Connections
“18VDC INPUT” for use with the included power supply. All rear panel connectors on the MOON 110LP have been chosen because they provide the best possible connections for your unit. A poor contact will degrade the signal substantially, and plugs and sockets should all look clean and free of dirt and corrosion. -
Page 10: Operating The 110Lp
In the event that you plan to be away from your home for a few days, powering off the Phono Preamplifier may not be a bad idea. Once fully “broken-in”, please keep in mind that your 110LP will require several hours of playing time IMPORTANT: A turntable with a functional before it reaches its peak performance after you’ve powered it up again.
