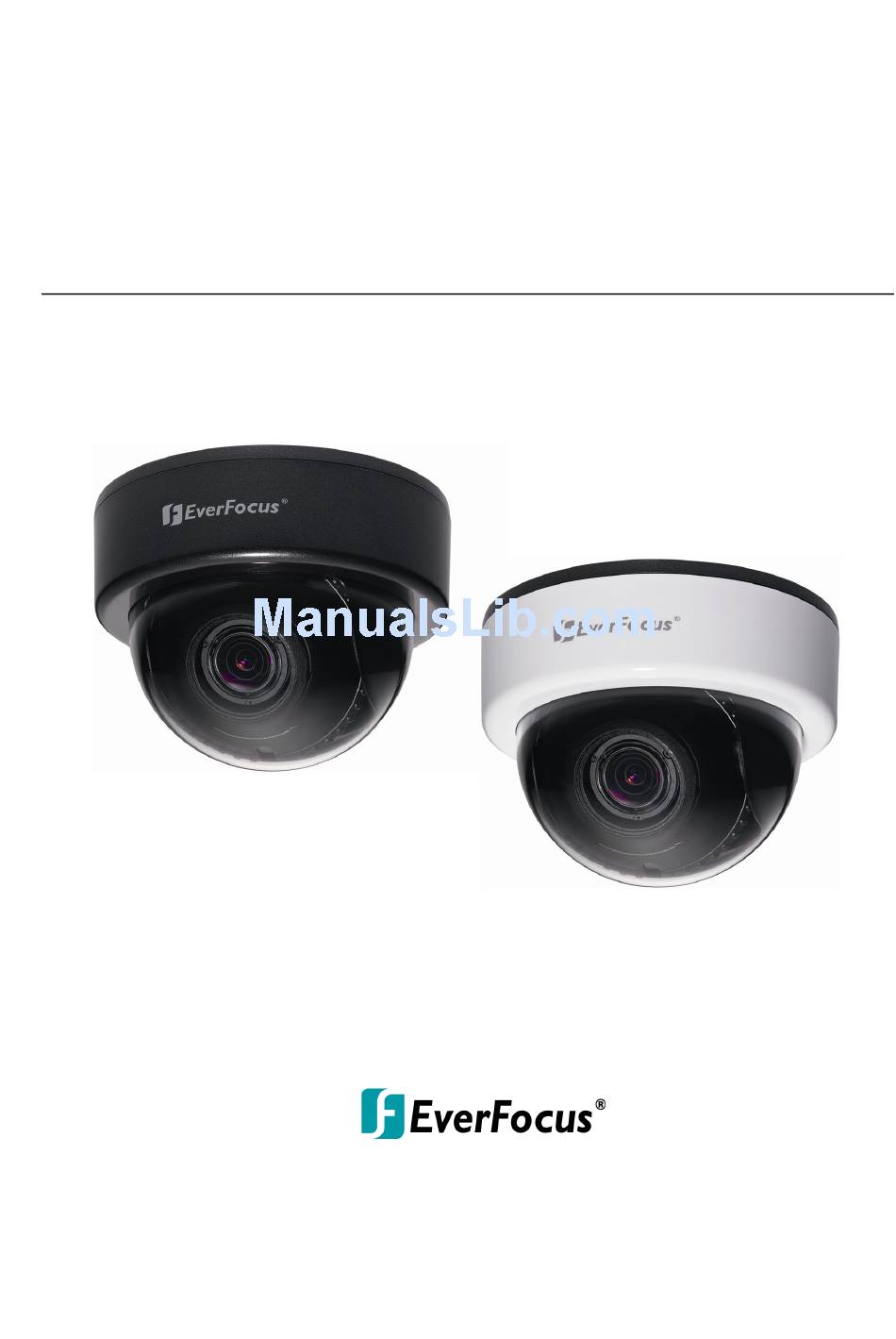

- Page 1 ED310e Indoor Dome Camera 700TVL 3-Axis High Resolution Compact User’s Manual Copyright © EverFocus Electronics Corp, Release Date: June, 2012...
-
Page 2: Table Of Contents
Cautions Do not install the camera near electric or magnetic fields. 2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. Try to avoid facing the camera toward the sun. Keep the power cord away from water and other liquids and never touch the power cord with wet hands. -
Page 3: Introduction
ED310e Indoor Dome 1. INTRODUCTION The ED310e delivers amazing 700 TVL video by using 1/3” Sony Exview HAD CCD II 960H sensor. Advanced surveillance features like Motion Detection and Privacy Mask benefit from Sony Effio-E platform. Stylish design and low profile luxury color accompany with the extraordinary video performance of ED310e. -
Page 4: Package Contents
ED310e Indoor Dome PACKAGE CONTENTS ED310e camera x 1 Mounting template x 1 • • User Manual x 1 Accessory kit x 1 (containing mounting • • Power adapter pigtail x 1 screws and plastic ahchors) • DIMENSIONS... -
Page 5: Specifications
ED310e Indoor Dome 2. SPECIFICATIONS Pickup Device 1/3" SONY Exview HAD CCD II (960H) Video Format NTSC or PAL (depends on model selected) Picture Elements 1020 x 508 (NTSC), 1020 x 596 (PAL) Horizontal Resolution 700 TVL Sensitivity 0.03 Lux / F=1.2 S/N Ratio Over 48dB (AGC off) Electronic Shutter 1/50 (1/60) ~1/100,000 sec. Video Output BNC 1.0 Vp‐p ,75ohm Gamma Correction 0.45 Lens Type Vari‐focal DC Iris Lens 2.8‐10.5mm Back Light Compensation On / Off Auto Gain Control Yes White Balance Auto / Indoor / Outdoor / Manual / Push Auto Sync. Mode Internal Sync. Day & Night Yes Yes (English / Japanese / German / French / Russian / Portuguese OSD menu / Spanish / Simplified Chinese) DNR ... -
Page 6: Installation & Operation
ED310e Indoor Dome 3. INSTALLATION & OPERATION Remove the dome cover from the main body by loosening the screw that securing the dome cover. Camera Image Adjustment: • Adjust camera to any direction by using Pan, Tilt, and Rotate mechanism. - Page 7 ED310e Indoor Dome Adjusting the Function Control Board 1 IR Board WEFER 3 POWER/VIDEO (CAMERA) 5 DAY IN 2 OSD KEY 4 POWER/VIDEO (DC/ BNC) Connect the video output to the monitor or other video device through a 75 Ohms type coaxial cable and the DC-Jack or AC/ DC-Terminator to the power source.
-
Page 8: Osd Menu
ED310e Indoor Dome 4. OSD MENU Main Menu Display OSD Setup Menu page 1 LENS AUTO↲ SHUTTER/ AGC AUTO↲ WHITE BAL BACKLIGHT ↲ PICT ADJUST ↲ NEXT↲ EXIT↲ SAVE ALL OSD Setup Menu page 2 DAY/ NIGHT AUTO* PRIVACY MOTION DET... -
Page 9: Osd Main Menu Description
ED310e Indoor Dome OSD Main Menu Description 4.2.1 LENS: MANUAL /AUTO selectable. LENS: MAUNAL No adjustment LENS: AUTO TYPE：DC AUTO MODE：AUTO/ OPEN /CLOSE SPEED：000~255 AUTO: Camera automatically controls the lens. OPEN: Lens fully opens. CLOSE: Lens fully closed. - Page 10 ED310e Indoor Dome SHUTTER/AGC: MANUAL MODE：SHUT+AGC SHUTTER： NTSC：1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 MANUAL PAL：1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 AGC：6.00、12.00、18.00、24.00、30.00、36.00、42.00、 44.80 SHUTTER: Fixed electronic shutter speed. AGC: Fixed AGC gain control. 4.2.3 WHITE BAL ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK selectable.
- Page 11 ED310e Indoor Dome WHITE BAL.: PUSH LOCK The function will detect the Color Temperature to save into the camera. 4.2.4 BACKLIGHT: BLC / HLC / OFF selectable. BACKLIGHT.: BLC Enable the function of Back Light Compensation, using BLC Smart detection method.
- Page 12 ED310e Indoor Dome 4.2.8 NEXT: ↲ Enter MAIN MENU, page 2. 4.2.9 EXIT: ↲ Exit OSD to select the option list. 4.2.10 SAVE ALL: When you change the OSD menu settings, before leaving the OSD item option SAVE ALL. Press ENTER key to change the memory settings for the OSD.
- Page 13 ED310e Indoor Dome DAY/NIGHT: EXT1 DN_IN 0[h]: Night mode 1[h]: Day mode DAY/NIGHT: EXT2 DN_IN 0[h]: Day mode 1[h]: Night mode 4.2.12 PRIVACY: ON / OFF selectable. PRIVACY: ON AREA SEL Max. 8 000~244 (NTSC) / 000~288(PAL)
- Page 14 ED310e Indoor Dome 4.2.13 MOTION: ON / OFF selectable. MOTION DET: ON DETECT SENSE 000~127 BLOCK DISP ON / OFF / ENABLE MONITOR AREA ON / OFF AREA SEL 000~244 (NTSC) / 000~288(PAL) BOTTOM 000~244 (NTSC) / 000~288(PAL) 600TVL：000~378 (NTSC)、000~370 (PAL) LEFT 700TVL：000~474 (NTSC)、000~468 (PAL)
- Page 15 ED310e Indoor Dome 4.2.14 CAMERA ID: ON / OFF selectable. A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 - ! ” # $ % & ’...
- Page 16 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 631 436 5070 TEL: +1 626 844 8888...
