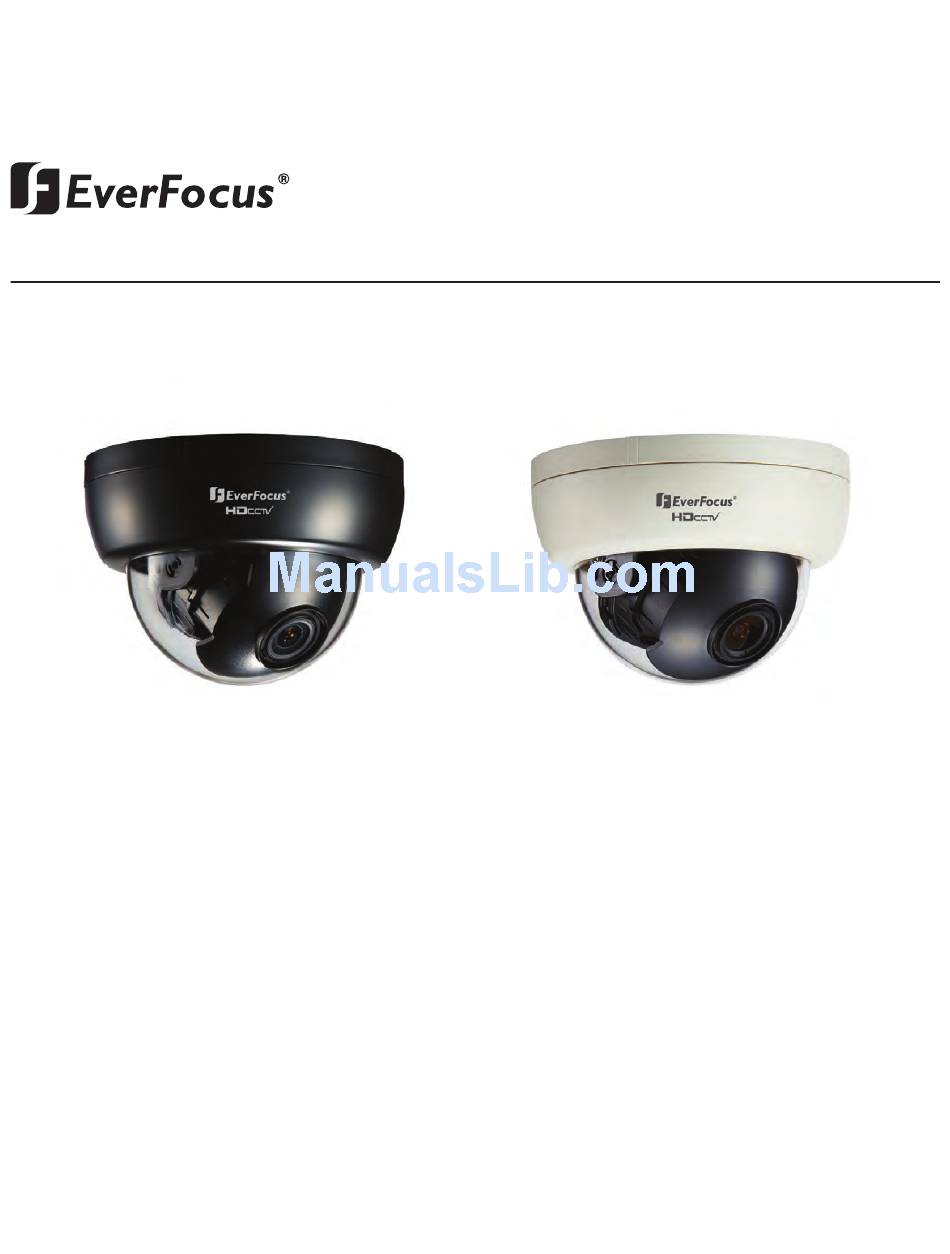

- Page 1 EDH5210B(W)-00 Operation Instruction EDH5201B EDH5201W HDcctv 1080p Indoor 3-Axis Dome Camera EDH5210B EDH5210W...
-
Page 2: Operation Instruction
The manufacturer reserves the right to revise and improve its products. All specifi cations are therefore subject to change without notice. All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. - Page 3 PRECAUTIONS 1. Do not install the camera near electric or magnetic fi elds. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fi elds generated from these devices may distort the video image or otherwise interfere with camera operation.
- Page 4 ATTENTION! This is a class A product which may cause radio interference in a domestic environment; in this case, the user may be urged to take adequate measures. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Table Of Contents
Table of Contents 1. PRODUCT OVERVIEW ..............1.1 FEATURES ....................1.2 ACCESSORY PARTS LIST ..............1.3 SPECIFICATIONS ................... 1.4 DIMENSIONS ..................2. CAMERA COMPONENT DESCRIPTION ........3. INSTALLATION ................4. OSD Structure................ -
Page 6: Product Overview
Chapter 1. Product Overview The EDH5201 is an HDcctv indoor 3-axis dome camera with Day/Night capability available in your choice of white or black plastic housing to match or contrast with the décor. Based on a 1/2.8” Sony 2.43 megapixel progressive scan sensor and varifocal 3.6~16mm megapixel lens for HD 1080p resolution 100% digital images, it delivers vastly superior video quality compared to traditional CCTV images. -
Page 7: Accessory Parts List
If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. If any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer Service. The shipping carton is the safest container in which the unit may be transported. Save it for possible future use. -
Page 8: Specifications
1.3 Specifi cations Pickup Device 1/2.8” Sony 2.43 Megapixel Color Progressive CMOS sensor Image Pixels 1920(H)x1080(V) with 2.8μx 2.8μ pixel size HDcctv Image Area Dimensions 5.38mm (H) x 3.02 mm(W); ø 6.17 mm area diagonal Sensitivity 0.1lux/F=1.2 (Sens-Up OFF) S/N Ratio More than 50dB Video Format Main Output HDcctv... -
Page 9: Dimensions
1.4 Dimensions Inches: Ø 3.94" Ø 5.31"... -
Page 10: Camera Component Description
Chapter 2. Camera Component Description Far/Near Adjustment K nob Tele/Wide Adjustment K nob OS D M enu Sw i tch S e r vice Vide o Co nne c tor OSD Menu Switch RI GH T L E F T : M enu up / down •... -
Page 11: Installation
Chapter 3. Installation PART NAME Mounting Template Base Pan Adjust Tilt Adjust Rotate Adjust Cover Housing Cover Dome Cover... - Page 12 Connections DC12V Adapter DC12V In (Black) BNC Female (HDcctv Jack) HDcctv DVR or other HDcctv Signal Equipment EDH5210 Handheld *Service Video Connector Monitor NTSC Video In Test Cable * NOTE When installing the camera, make sure that all cable ends and connectors are protected from humidity and other outdoor environments.
-
Page 13: Osd Structure
4. OSD Structure Chapter SETUP EXPOSURE WHITE BALANCE WDR / BLC DAY & NIGHT IMAGE SPECIAL SYSTEM Reset Date All Main Sub Menu Sub Menu BRIGHTNESS 0 ~ 20 AE MODE NORMAL AE / INDOOR LENS(IRIS) MANUAL / AUTO 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500, LEVEL MANUAL / 1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K. - Page 14 4. OSD Structure Main Sub Menu Sub Menu SHARPNESS 0 ~ 10 FLIP OFF, H FLIP, V FLIP, HV FLIP LENS SHADING OFF, ON IMAGE DZOOM 1x, 2x, 4x, 6x, 8x, 10x, 12x, 14x, 16x, 18x, 20x RESET DATA BACK / DEF. RETURN BACK / EXIT.
- Page 15 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, USA 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 626 844 8888 TEL: +1 631 436 5070...
