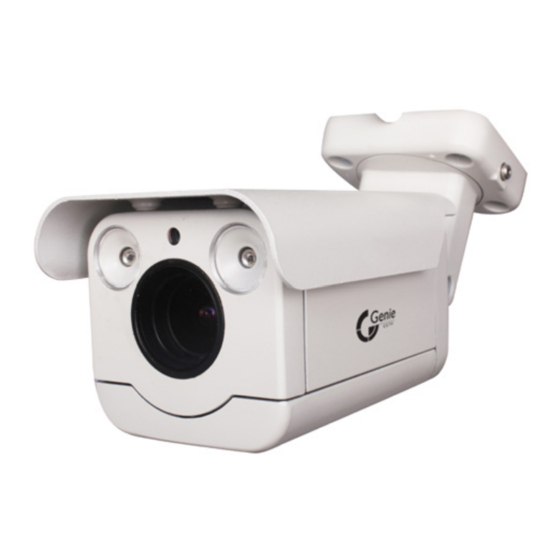

- Page 1 • W70SBIR, W70MBIR & W70LBIR • • • Vandal Resistant IR Bullet Camera • • • User Manual...
- Page 2 • Safety Precautions • DO NOT ATTEMPT TO DISASSEMBLE THE CAMERA. Risk of Electric Shock, Do Not Open CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSON • This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. • This symbol is intended to alert the user to the presence of important operation and maintenance instructions in the literature accompanying the appliance. • Vandal Resistant IR Bullet Camera...
- Page 3 Warning 1. This product is patented for configuration, appearance and design; copying is not permitted. • 2. If this product fails to operate normally contact your authorised distributor or service centre. Never disassemble or modify the product in any way. Problems caused by disassembly, modification or repair invalidates the product warranty. • 3. Electromagnetic fields at specific frequencies may cause image interference. • 4. Only use a standard regulated power adapter. Using any other adapter could result in fire, electric shock or damage to the product. • 5. Incorrectly connecting the power supply may result in fire, electric shock or damage to the product. • 6. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire. • 7. Securely plug the power cord into the power receptacle. A loose connection may result in fire. • 8. When installing the camera on a wall or ceiling, fasten it safely and securely. A falling camera may cause personal injury. • 9. Do not place conductive objects (e.g. screwdrivers, coins etc.) on top of the camera. • 10. Do not install the unit in humid, dusty locations. • 11. If any unusual smell or smoke comes from the unit, please stop using the product. In such cases, please immediately disconnect the power source and contact your local authorised distributor or service centre. Cautions 1. Do not drop objects on the products or apply strong shocks to it. Keep it away from locations subject to excessive vibration or magnetic-field interference.
- Page 4 Important Safety Instructions 1. Read these instructions • 2. Keep these instructions for later use. • 3. Pay attention to all warnings and adhere to them. • 4. Follow all instructions. • 5. Do not immerse this product in water. • 6. Clean only with a lint free dry cloth. • 7. Do not block any ventilation openings. • 8. Do not install near any heat sources such as radiations, heat registers, or other products (including amplifiers) that produce heat. • 9. Protect the power cord from being walked on or being pinched, especially at power receptacles, and the point where they exit from the camera. • 10. Only use accessories specified by the manufacturer. • 11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power. • 12. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power supply cord or plug is damaged, it does not operate normally, or has been dropped.
-
Page 5: Table Of Contents
• Contents Chapter 1 - W70SBIR Overview..............6 • Specification........................6 • Features........................6 • Product Parts........................7 • Operating Instructions....................7 • Installation........................8 • Adjusting the Monitoring Direction................9 Chapter 2 - W70MBIR Overview..............10 • Specification........................10 • Features........................11 • Package........................11 • Product Parts......................11 • Operating Instructions....................12 • Installation........................13 • Adjusting the Monitoring Direction................14 Chapter 3 - W70LBIR Overview..............15 • Specification........................15 • Features........................16 • Package........................16 • Product Parts......................16 •... -
Page 6: Chapter 1 - W70Sbir Overview
Chapter 1 - W70SBIR Overview Specification Model Number W70SBIR Image Sensor CMOS Video Format Effective Pixels 720 (H) x 576 (V) Horizontal Resolution 700 TVL Minimum Illumination 0.1Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time Auto Day & Night IR Cut Filter with Auto Switching Sync System Internal Video Output 1Vp-p Composite Output (75Ω/BNC) S/N Ratio > 50dB Lens 3.6mm IR 1.3MP Angle of View 70° Mount IR Light 2 Piece LED Array (2W Each) IR Range 15m in Ideal Conditions Weatherproof IP66 Power Supply DC12V Power Consumption Max. 2W (Max. 6W with IR LED’s ON) Operating Temperature - 20°C ~ 50°C... -
Page 7: Product Parts
Product Parts • Fixing Base • Locking Ring • IR LED Array • Photovaristor • Bracket Screw 1. Fixing Base • Fixes the camera to the ceiling or wall • • Side Screw 2. Locking Ring • Locks the Camera Body to the Base • 3. IR LED Array • Provides light source at night time • 4. Photovaristor • Photocell to turn on or turn off the IR LED’s • 5. Bracket Screw • Adjust and fix the horizontal angle of view • 6. Side Screw •... -
Page 8: Installation
Installation Before Installation • Read the cautions before installation: 1. Make sure the installation location can support 5 times the total weight of the bullet camera. 2. Make sure the cable doesn’t get jammed inappropriately or allow the cable insulation to get damaged during installation. This may result in a malfunction or a fire hazard. • 3. Make sure that nobody is beneath the installation location. Installing the Camera • The installation process is described below: • Step 1 Place the dielectric paper on the wall / ceiling (this is to protect the camera from damage by conducted currents). Then, fix the camera base to the wall / ceiling with the 3 screws provided. *Pay attention to the cable trough. Point it in the direction of the power supply if cables exit there. Step 2 Attach the camera body to the fixing base. • • • • • • • • Step 3 Fasten the camera body tightly using the gearing on the locking ring. The installation is complete. • Cable Trough Cautions for Installation: 1. Allow the cable to pass through the hole in the middle before mounting the camera to the base. •... -
Page 9: Adjusting The Monitoring Direction
Adjusting the Monitoring Direction 1. Loosening the bracket screw allows you to rotate the camera body and bracket 180° in a horizontal direction. • • • • • • • • • • • • • 2. Loosening the side screw allows you to rotate the camera body or bracket in a vertical direction. • • • • • • 360° • • • • • • • • 3. By rotating the camera body or bracket downward 90° in a vertical direction (as above left picture), the camera body or bracket can be rotated 360°. • Note: The camera body or bracket can be rotated 360° only when in the position indicated in the above left photo •... -
Page 10: Chapter 2 - W70Mbir Overview
Chapter 2 - W70MBIR Overview Specification Model Number W70MBIR Image Sensor Sony 1/3” Super HAD II CCD Video Format Effective Pixel 976 (H) × 494 (V) Scanning System 2:1 Interlace Sync System Internal / External Resolution 650TVL (Colour), 700 TVL (B&W) Video Output BNC 1.0Vp-p 75Ω Burst Level 0.286Vp-p S/N Ratio >52dB Minimum Illumination 0.01Lux @ F1.2 (Colour), 0.001Lux @ F1.2 (B&W) Electronic Shutter Auto / Manual AES / DC Drive Auto Iris / Video Drive Auto Iris Exposure Control Auto / Manual / AIS White Balance ATW / Push / USER1 / User2 / Manual / Push Lock Auto / Manual Yes (Adjustment Inside Cover) D/N Switch Auto / Colour / Black & White / EXT1/ EXT2 Smart IR OFF / BLC / HLC Image Mirror / Lightness / Contrast / Sharpness / Colour / Gain Digital WDR OFF / ON 128 x WDR (52dB) Motion Detection OFF / ON Privacy Masking... -
Page 11: Features
Features • Built-in 2.8-12mm IR Corrective Lens • Built-in ICR • Easy Adjustment of Lens Focal Length • 2 Piece IR LED Array • Visible Range up to 25m in Ideal Conditions • 3-Axis Vertical / Horizontal / Rotational • Vandal Resistant • Weatherproof IP66 Package Check the contents of the package. The following items are included: • • 1x User Manual • 1x IR Bullet Camera • 4x Fixing Screws with Dielectric Covers • 1x Dielectric Paper • 1x L-type Screwdriver • Product Parts • Fixing Base • Sunshield Screw • Sunshield • Photovaristor •... -
Page 12: Operating Instructions
• Holder Screw • Connector Screw • Lens Zoom Cover • Lens Focus Lever • OSD Setup • Video Out Port 10. Holder Screw • Adjusts and sets the monitoring direction 11. Connector Screw • Adjusts and sets the monitoring direction 12. Lens Zoom Lever • Adjusts the zoom ratio of the Lens 13. Lens Focus Lever • Adjusts the focal length of the Lens 14. OSD Setup • Sets the available OSD functions 15. Video Out Port • Test Monitor connector for checking the image locally Operating Instructions Connection 1. Connect one end of the BNC Cable to the terminals of a monitor or recording device. 2. Connect the other end of the BNC Cable to the camera VIDEO OUT terminal. -
Page 13: Installation
Installation Before Installation • Read the cautions before installation: 1. Make sure the installation location can support 5 times the total weight of the bullet camera. 2. Make sure the cable doesn’t get jammed inappropriately or allow the cable insulation to get damaged during installation. This may result in a malfunction or a fire hazard. 3. Make sure that nobody is beneath the installation location. Installing the Camera The installation process is described below: Step 1 Place the dielectric paper on the wall / ceiling (this is to protect the camera from damage by conducted currents). Then, fix the camera base to the wall/ceiling with the four screws provided. *Pay attention to the cable trough. Point it in the direction of the power supply if cables exit there. • Cable Trough Step 2 Attach the camera body to the fixing base. Step 3 Fasten the camera body to the fixing base. The installation is now complete. Cautions for Installation: 1. Allow the cable to pass through the hole in the middle before mounting the camera to the base. • 2. If passing through the side, the cable must be put in the cable trough first before the camera is mounted. • Vandal Resistant IR Bullet Camera... -
Page 14: Adjusting The Monitoring Direction
Adjusting the Monitoring Direction • Holder Screw • Bracket Screw • Connector Screw The W70MBIR has a 3-axis gimbal design. Loosen the holder, bracket and connector screws, then adjust the camera to the appropriate monitoring position. After one direction is set, tighten the relevant fixing screw. Fully tighten all screws when all adjustments are completed. Changing Camera Functions Loosen the bottom cover screw to open the bottom cover. 1. Use the video out port for connecting a test monitor to the camera to locally check the image output. 2. Set the required functions using the OSD setup. 3. Rotate the IR Illumination adjustment to adjust the IR intensity; appropriate to the application. 4. Adjust the focal length with the lens zoom and focus levers to obtain the correct field of view. Once a clear and focused image is achieved, fully tighten the thumb screws. 5. After all adjustments are completed lock and tighten the bottom cover using the bottom cover screw. • Vandal Resistant IR Bullet Camera... -
Page 15: Chapter 3 - W70Lbir Overview
Chapter 3 - W70LBIR Overview Specification Model Number W70LBIR Image Sensor Sony 1/3” Super HAD II CCD Video Format Effective Pixel 976 (H) x 582 (V) Scanning System 2:1 Interlace Sync System Internal / External Resolution 650TVL (Colour), 700 TVL (B&W) Video Output BNC 1.0Vp-p 75Ω Burst Level 0.286Vp-p S/N Ratio >52dB Minimum Illumination 0.01Lux @ F1.2 (Colour), 0.001Lux @ F1.2 (B&W) Electronic Shutter Auto / Manual AES / DC Drive Auto Iris / Video Drive Auto Iris Exposure Control Auto / Manual / AIS White Balance ATW / Push / USER1 / User2 / Manual / Push Lock Auto / Manual Yes (Adjustment Inside Cover) D/N Switch Auto / Colour / Black & White / EXT1/ EXT2 Smart IR OFF / BLC / HLC Image Mirror / Lightness / Contrast / Sharpness / Colour / Gain Digital WDR OFF / ON 128 x WDR (52dB) Motion Detection OFF / ON Privacy Masking... -
Page 16: Features
Features • Built-in 2.8-12mm IR 2MP Lens • Built-in ICR • Easy Lens Focal Length Adjustment • 2 Piece IR LED Array, Total Power 7W • Visible Range up to 30m in Ideal Conditions • 3-Axis Vertical/Horizontal/Rotational • Vandal Resistant • Weatherproof IP66 Package Check the contents of the package. The following items are included: • • 1x User Manual • 1x IR Bullet Camera • 3x Fixing Screws with Dielectric Covers • 1x Dielectric Paper • 1x L-type Screwdriver Product Parts • Fixing Base • Locking Ring • Bracket Screw • Sunshield Screw • Sunshield •... -
Page 17: Operating Instructions
• Side Screw • Bottom Cover • Video Out Port • IR Illumination Adjustment • OSD Setup • Lens Zoom Lever • Lens Focus Lever 9. Side Screw 12. IR Illumination Adjustment • Adjusts and fixes the monitoring direction • Adjusts the IR LED intensity • • 10. Bottom Cover 13. OSD Setup • Seals and protects the Focus and OSD • Sets the available OSD functions controls • • 14. Lens Zoom Lever 11. Video Out Port • Adjusts the zoom ratio of the Lens •... -
Page 18: Installation
Installation Before Installation • Read the cautions before installation: 1. Make sure the installation location can support 5 times the total weight of the bullet camera. 2. Make sure the cable doesn’t get jammed inappropriately or allow the cable insulation to get damaged during installation. This may result in a malfunction or a fire hazard. 3. Make sure that nobody is beneath the installation location. Installing the Camera The installation process is described below: • Cable Trough Step 1 Place the dielectric paper on the wall / ceiling (this is to protect the camera from damage by conducted currents). Then, fix the camera base to the wall/ceiling with the three screws provided. *Pay attention to the cable trough. Point it in the direction of the power supply if cables exit there. Step 2 Attach the camera body to the fixing base. Step 3 Fasten the camera body tightly using the gearing on the locking ring. The installation is complete. Cautions for Installation: 1. Allow the cable to pass through the hole in the middle before mounting the camera to the base. • 2. If passing through the side, the cable must be put in the cable trough first before the camera is mounted. • Vandal Resistant IR Bullet Camera... -
Page 19: Adjusting The Monitoring Direction
Adjusting the Monitoring Direction 1. Before tightening the locking ring you can rotate the whole Camera Body to the required surveillance position. 2. Loosen the bracket screw and you can rotate the Camera Body horizontally according to your surveil- lance need. Tighten the bracket screw after you finish the adjustment. 3. Loosen the side screw and you can rotate the camera body vertically, according to surveillance need. Tighten the side screw after you finish the adjustment. Changing Camera Functions Loosen the bottom cover screw to open the bottom cover. 1. Use the video out port for connecting a test monitor to the camera to locally check the image output. 2. Set the required functions using the OSD setup. 3. Rotate the IR Illumination adjustment to adjust the IR intensity; appropriate to the application. 4. Adjust the focal length with the lens zoom and focus levers to obtain the correct field of view. Once a clear and focused image is achieved, fully tighten the thumb screws. 5. After all adjustments are completed lock and tighten the bottom cover using the bottom cover screw. • Vandal Resistant IR Bullet Camera... -
Page 20: Chapter 4 - Typical Ccd Phenomena
Chapter 4 - Typical CCD Phenomena The following effects on the monitor screen are characteristics of CCD cameras. They do not indicate any fault with the camera. Smear This can occur when the camera is pointed toward a very bright object, such as electrical lighting, the sun, or a strong reflection. This phenomenon is caused by an electric charge induced by infrared radiation deep in the photosensor. It appears as a vertical smear because the CCD imaging element uses an interline transfer system. Vertical Aliasing When the camera is pointed toward vertical stripes or lines, they may appear jagged. Blemishes A CCD image sensor consists of an array of individual sensor picture elements (Pixels). A malfunctioning sensor element causes a single pixel blemish in the picture. This is generally not a problem. White Speckles A CCD image pickup device uses accurate techniques to capture an image, however imperceptible speckles may occasionally appear on the screen. This is related to the principles of a CCD mage sensor pickup device and not a malfunction. The white speckles could appear under the following conditions: • Using the camera in high temperatures • When turning up the gain Blooming This is a phenomenon is which the light from very bright objects appears to overflow into neighbouring areas of an image. Note : If strong light enters a wide area of the image the screen may become dark. If this occurs, move the camera away from the light source or adjust the iris to reduce the amount of light entering the lens. • Vandal Resistant IR Bullet Camera... -
Page 21: Chapter 5 - Troubleshooting
Chapter 5 - Troubleshooting • If you encounter trouble in using the camera, please refer to the instructions below. For more information, please consult your local authorised distributor or service centre. Problem Solution Check the power supply and the cable, camera and moni- No Video Output tor connections. Check whether the camera is connected to the DC12V Malfunction power supply. Adjust the display contrast of the monitor; Change the Light Image location if the camera is exposed to intense light. Dark Image Adjust the Brightness. The situations below are not malfunctions of the camera. Problem Solution May appear when the camera is exposed to intense Vertical Streak light. When the camera is in a high temperature environment, Fixed Image Clutter there may be fixed image clutter on the entire monitor screen. When shooting at a ribbon-like object, a straight line or Jagged Image something with a similar pattern, the image displayed on the monitor may be serrated. Chapter 6 - Routine Maintenance 1. Regularly clean the dust and dirt from the lens surface of the camera with a dry lint free cloth to maintain clarity of image. • 2. Clean the camera body with dry soft cloth. For stubborn dirt, wipe it with a cloth dipped in a little neutral detergent, and then dry the camera. • 3. Do not use volatile chemicals, such as thinners, alcohol, benzene etc. to clean the camera, because they can damage the surface coating, and even weaken the functionality and performance of the camera. - Page 22 Memo • Vandal Resistant IR Bullet Camera...
- Page 23 Memo • Vandal Resistant IR Bullet Camera...
- Page 24 • GENIE CCTV LTD. • CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT • Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543 • www.geniecctv.com • • • Edition. GN-January 2014...
