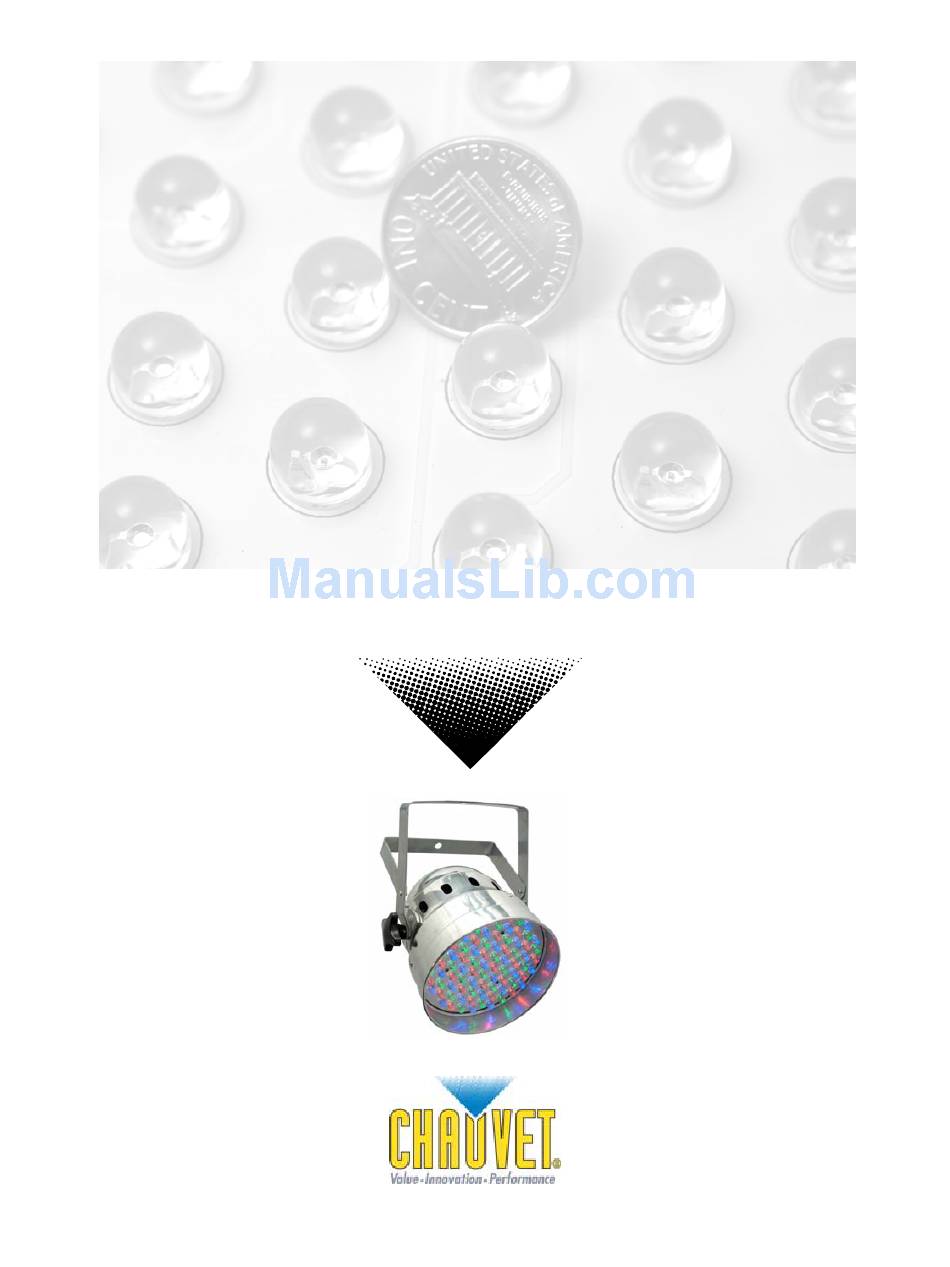

Page 1: User Manual
LED-RAIN56 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2007-06-13/12:12... -
Page 2: Table Of Contents
ABLE OF ONTENT BEFORE YOU BEGIN... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 3 AFETY NSTRUCTIONS INTRODUCTION ... 4 ... 4 EATURES DMX C ... 4 HANNEL UMMARY ... 5 RODUCT VERVIEW SETUP ... -
Page 3: Before You Begin
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. LED-RAIN56 User Manual • Secure fixture to fastening device using a safety chain. -
Page 4: Introduction
NTRODUCTION Features CONTROL FEATURES • 7-channel DMX-512 LED par can • 108 double sized LEDs: 36 red, 36 green, 36 blue • Built-in color change programs FEATURES • Ultra bright LED's • RGB color mixing • Up to 100,000-hour LED life span •... -
Page 5: Product Overview
Product Overview DMX dipswitches: DMX channel addressing Min-Max rotary knob LED-RAIN56 User Manual Music/Auto switch Green LED Status ON - signifies the par can is set to be controlled via DMX OFF – Par can is set to either Automatic or Sound Active mode as previously selected by the Music/Auto switch 10mm Round... -
Page 6: Setup
ETUP Power This fixture has an auto-switching power supply that can accommodate a wide range of input voltages. The only thing necessary to do before powering on the unit is to make sure the line voltage you are applying is within the range of accepted voltages. -
Page 7: Operating Instructions
PERATING NSTRUCTIONS The LED-RAIN56 is a DMX-512 controllable, full RGB color mix par can made up of highly efficient and double-sized bright LEDS measuring 10mm in diameter. All red, green and blue LEDs can be controlled separately allowing the creation of an unlimited range of colors. The LED-RAIN56 can operate in Stand-Alone, Master/Slave and via DMX-512 control utilizing 6 DMX channels. -
Page 8: Dmx Control Mode
DMX Control Mode Operating in a DMX Control mode environment gives the user the greatest flexibility when it comes to customizing or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. The LED-RAIN56 uses 7 channels of control. Note: Dipswitch 10 must be turned on to activate DMX control mode. -
Page 9: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 10: Dmx Channel Values
DMX Channel Values HANNEL ALUE 255 Red: ( 0% ~ 100% ) 255 Green: ( 0% ~ 100% ) 255 Blue: ( 0% ~ 100% ) Macro Colors (By LED levels) Red: 100% Green: 20% Red: 100% Green: 40% Red: 100% Green: 60% Red: 100% Green: 80% Red: 100% Green: 100% Blue: Red:... -
Page 11: Returns Procedure
Be prepared to provide the model for the r turn. Be sure to properly pack fixture, an packaging is the customer’s responsibility. CHAUVET reserves the right to use its own discretion to repair or replace product(s). As a suggestion, prop thod to use. -
Page 12: Dmx Dipswitch Quick Reference Chart
DMX Dipswitch Quick Reference Chart DMX Address Quick Reference Chart DMX DIP 0 0 0 SWITCH SET 0=OFF #8 0 0 0 1=ON #7 0 0 1 X=OFF or ON #6 0 1 0 #1 #2 #3 #4 #5 0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480 1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481... -
Page 13: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length... 8.25 in (209.6 mm) Width ... 7.75 in (196.9 mm) Height ..Weight OWER Auto-s witc hing pow r su Power consumptio ... rush ... 14.3W Quantit y ..108 To al, (Red 36, Green 36, Bl e 36) B am Angle ...
