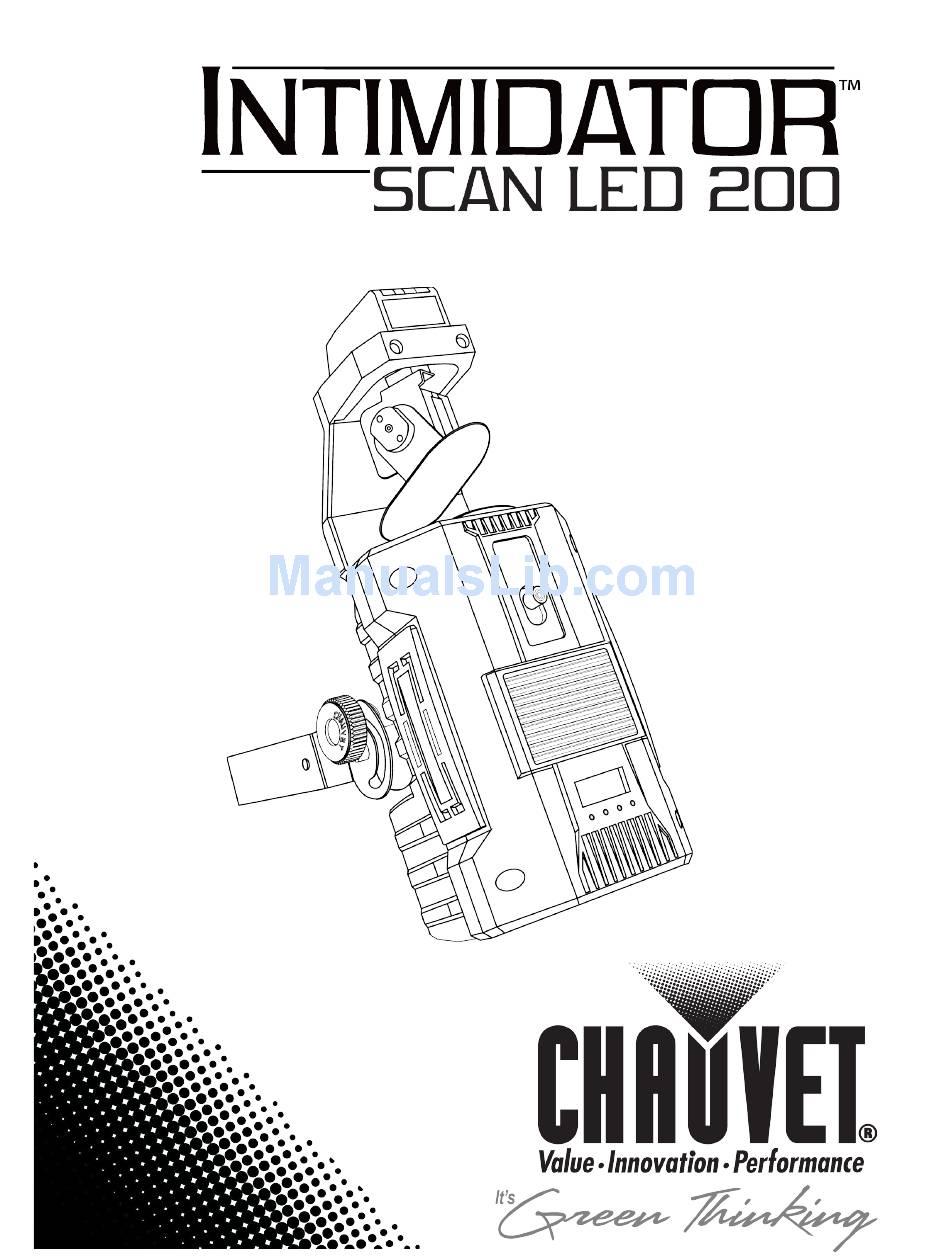

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    5. Technical Information..............17 General Maintenance .................. 17 General Troubleshooting ................18 Returns Procedure ..................19 Claims ......................19 Contact Information ..................19 6. Technical Specifications ............... 20 Page 2 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 3: Before You Begin

    Document Information The information and specifications contained in this document are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or omissions that may appear in this manual. © Copyright 2012 CHAUVET®. All rights reserved.

  • Page 4: Product At A Glance

    Never carry a fixture from the power cord or any moving part. Always use the • mounting bracket or the handles. Always avoid direct eye exposure to the light source when this fixture is on. • Page 4 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Fuseholder Microphone DMX In Power Out DMX Out Power In Intimidator™ Scan LED 200 User Manual (Rev. 4) Page 5 of 20...

  • Page 6: Product Dimensions

    Product Dimensions Page 6 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 7: Setup

    4) Screw the fuse holder cap back in its place and reconnect power. Always replace a blown fuse with a good fuse of the same type and rating. Intimidator™ Scan LED 200 User Manual (Rev. 4) Page 7 of 20...

  • Page 8: Power Linking

    Diagram Fixture #1 You can power link up to 8 Intimidator™ Scan LED 200 units on 120 VAC. The power linking diagram shown above corresponds to the North American version of this product ONLY! If using this product in other markets, you must consult with the local CHAUVET®...

  • Page 9: Mounting

    Mounting Orientation The Intimidator™ Scan LED 200 may be mounted in any position, provided there is adequate room for ventilation around it. Rigging Before deciding on a location for this product, always make sure that it will be easy to access the unit for maintenance and programming purposes.

  • Page 10: Operation

    Personality 5-channel personality Reset all motors to correct any errors Reset rESt with motors misaligning during operation Load all settings back to the factory Load Default LoAd default Page 10 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 11: Dmx Operation

    DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the fixture’s channels. The Intimidator™ Scan LED 200 uses up to 8 DMX channels in its 8-channel DMX mode, which defines the highest configurable address to 505.

  • Page 12: Standalone Operation

    (SLAu, nStS, nAFA, nASL). 2) Using <UP> and <DOWN>, select nStS. 3) Press <ENTER>. The fixture will only respond to the low frequencies of the music (bass and drums). Page 12 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 13: Service Mode

    3) Press <UP> to change the blinking digit in ascending order, and press <DOWN> to move on to the next digit. 4) Press <ENTER>. This mode will be automatically terminated after 15 seconds of being idle. Intimidator™ Scan LED 200 User Manual (Rev. 4) Page 13 of 20...

  • Page 14: Dmx Channel Assignments And Values

    Gobo 1 shake, (fast  slow) 120  127 Open 128  191 Gobo scroll: Clockwise rotation 192  255 Gobo scroll: Counter-clockwise rotation Continues on the next page Page 14 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)
  • Page 15 168  183 Sound 3 184  199 Sound 4 200  215 Sound 5 216  231 Sound 6 232  247 Sound 7 248  255 Sound 8 Intimidator™ Scan LED 200 User Manual (Rev. 4) Page 15 of 20...

  • Page 16: 5-Channel Mode

    Gobo 2 shake, (fast  slow) 112  119 Gobo 1 shake, (fast  slow) 120  127 Open 128  191 Gobo scroll: Clockwise rotation 192  255 Gobo scroll: Counter-clockwise rotation Page 16 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 17: Technical Information

    Always dry the mirror and lens carefully after cleaning them. Do not spin the cooling fan/fans using compressed air because you could damage it/them. Intimidator™ Scan LED 200 User Manual (Rev. 4) Page 17 of 20...

  • Page 18: General Troubleshooting

    #32 Terminator not connected Install a terminator, as indicated in the DMX Primer. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Page 18 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)

  • Page 19: Returns Procedure

    Be sure to pack the fixture properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper UPS packing or double-boxing is always a safe method to use. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Claims The carrier is responsible for any damage incurred during shipping to this product or any part that shipped with it.

  • Page 20: Technical Specifications

    104° F (40° C) I/O Connectors Connector Type Channel Range 3-pin XLR Sockets 5, 8 Ordering Product Name Item Code Item Number Intimidator™ Scan LED 200 08020174 INTIMIDATORSCANLED200 Page 20 of 20 Intimidator™ Scan LED 200 User Manual (Rev. 4)
