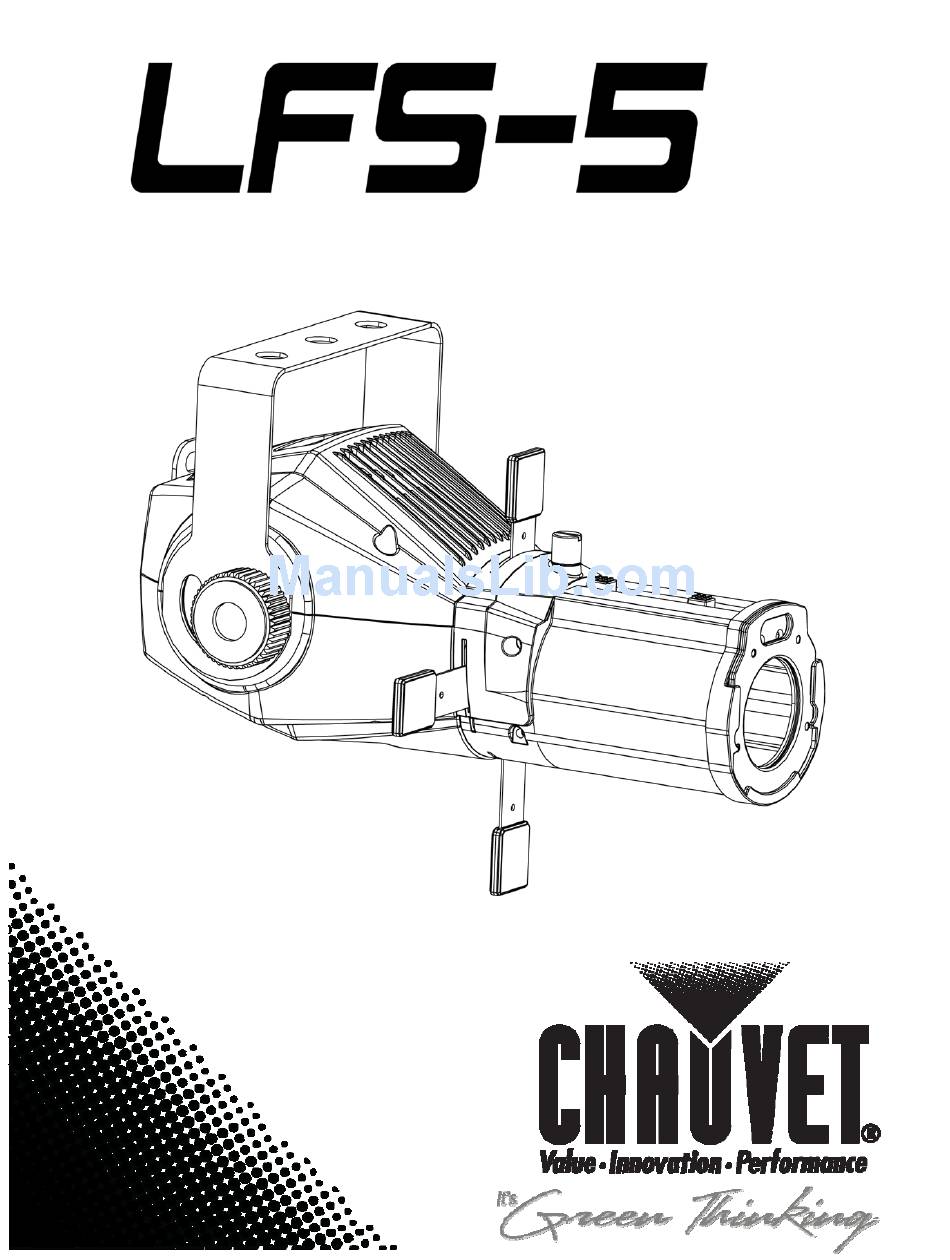

- Page 1 User Manual...
-
Page 2: Table Of Contents
Product Maintenance ..................11 General Troubleshooting ................12 Contact Procedure ..................13 CHAUVET® Contact Information ..............13 Returning Products to CHAUVET® ..............13 6. Technical Specifications ..............14 Page 2 of 14 LFS-5 User Manual (Rev. 08) -
Page 3: Before You Begin
For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving the merchandise. Convention... -
Page 4: Product At A Glance
Please contact the nearest authorized technical assistance center. Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. Page 4 of 14 LFS-5 User Manual (Rev. 08) -
Page 5: Introduction
2. I NTRODUCTION Product Overview Power In Fuse Holder Bracket Adjustment Knob Power Out Mounting Bracket Framing Shutter (x4) Framing Shutter (x4) Gobo holder knob Focus and zoom control Gel holder LFS-5 User Manual (Rev. 08) Page 5 of 14... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 14 LFS-5 User Manual (Rev. 08) -
Page 7: Setup
Insert the fuse holder back into place, and reconnect power. Although the safety cap does have room for a spare fuse, this product ships with no spare fuse. Always replace a blown fuse of the same type and rating. LFS-5 User Manual (Rev. 08) Page 7 of 14... -
Page 8: Power Linking
Product Power Linking Diagram Other products You can power link up to 23 LFS-5 units on 120 VAC or up to 45 LFS-5 units on 230 VAC. The power linking diagram shown above corresponds to the North American version of this product ONLY! If using this product in other markets, you must consult with the local CHAUVET®... -
Page 9: Mounting
Before mounting this product, read and follow the safety recommendations indicated in the Safety Notes section (page 2 of this manual). Orientation The LFS-5 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging Before deciding on a location for this product, always make sure that it will be easy to access the unit for maintenance purposes. -
Page 10: Operation
PERATION Power To turn on your LFS-5, simply plug in the including power cord to the back of the product and plug the opposite end to the wall outlet. To turn it off, unplug the power from the wall outlet. -
Page 11: Technical Information
Softly drag any dirt or grime to the outside of the glass/transparent surface. Gently polish the glass/transparent surfaces until they are free of haze and lint. Always dry the glass/transparent surfaces carefully after cleaning them. LFS-5 User Manual (Rev. 08) Page 11 of 14... -
Page 12: General Troubleshooting
Replace blown fuse with a good one of the same type and rating Internal problem Send product for repair If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Page 12 of 14 LFS-5 User Manual (Rev. 08) -
Page 13: Contact Procedure
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. -
Page 14: Technical Specifications
25.4 mm outside Gobo size 19 mm image 1 mm max thickness Maximum External Temp. Cooling System Thermal 104°F (40°C) Convection Product Name Item Code Item Number Ordering LFS-5 08050400 LFS-5 Page 14 of 14 LFS-5 User Manual (Rev. 08)
