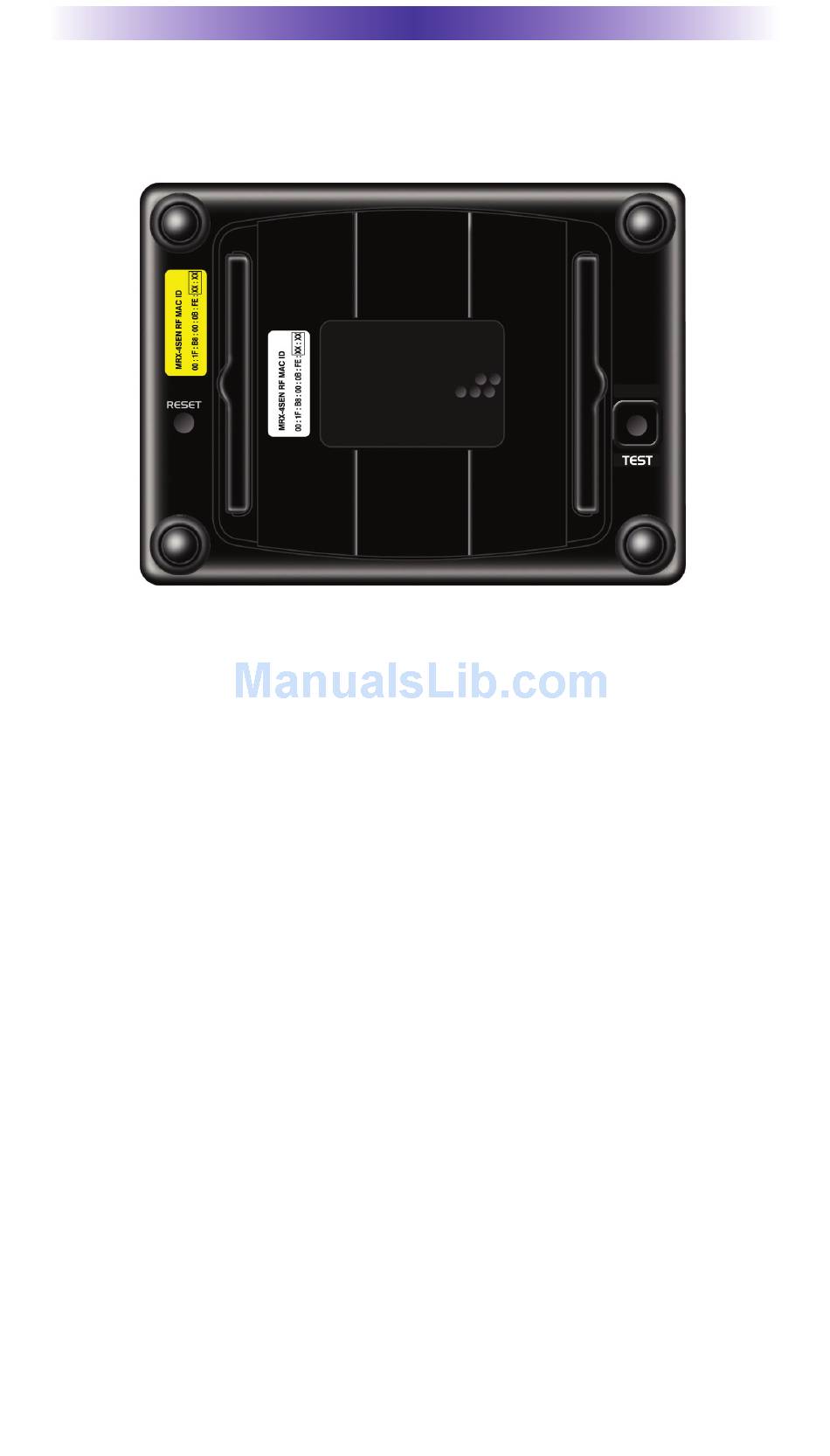

Bottom Panel

The bottom panel consists of:
ZIGBEE Address Sticker: The ZIGBEE Address (16 characters) identifies
this wireless device when connected to the network.
Serial Number Sticker: The serial number, located at the bottom of the
unit, uniquely identifies the product.
Test button: Press to refresh the signal and test the signal strength
between the MRX Advanced Network System Controller and the MRX-
4SEN. While testing, the Status LED will update and display its current
connection setting. (Refer to page 2 for Status LED information.)
Reset button: Turns the unit OFF then ON again, and reconnects to
the URC 2.4GHz RF signal.
Page 4
