Summary of Contents for URC Total Control MRX-4SEN2
- Page 3 ● ● ● ●...

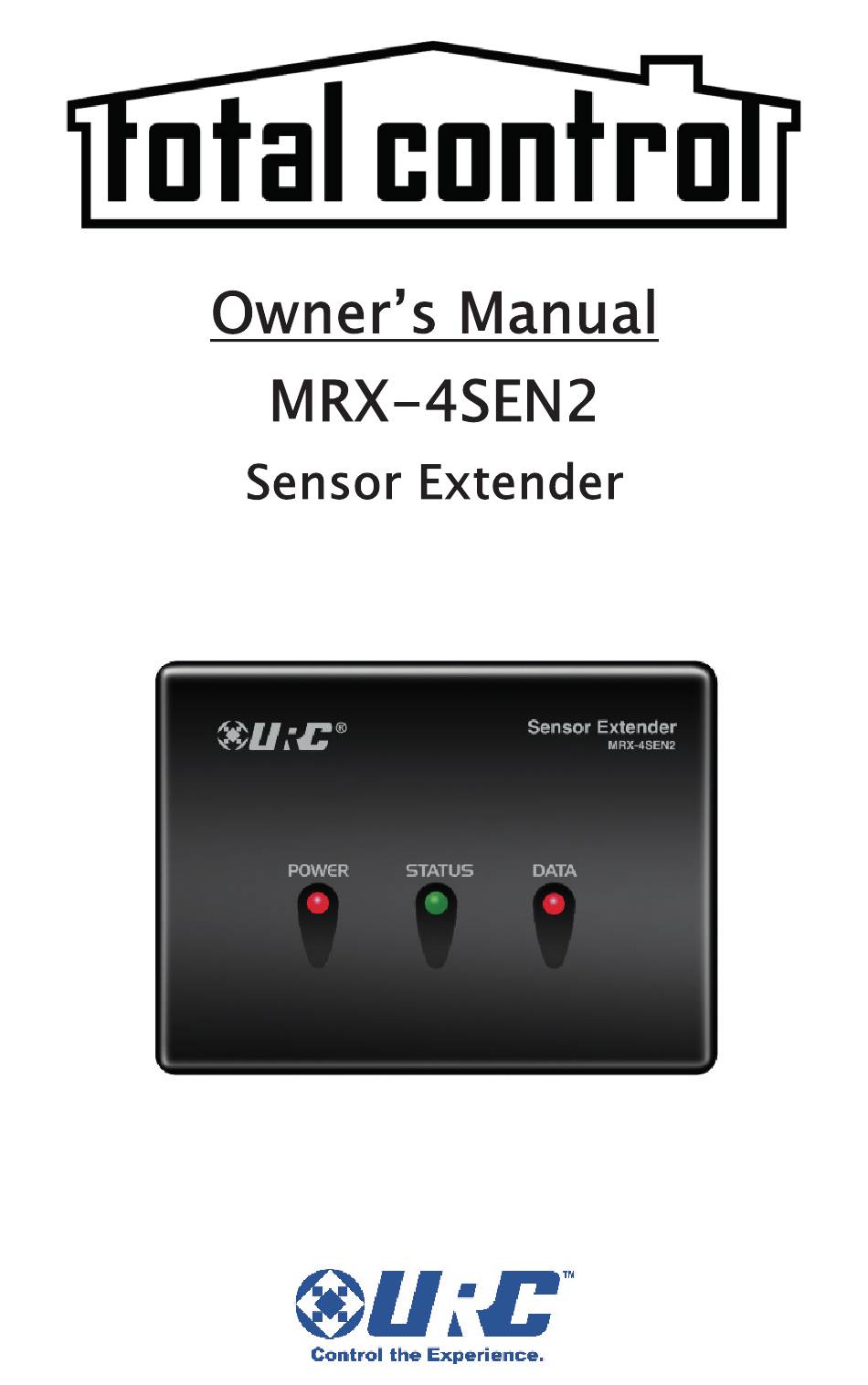

- Page 4 Thank you for purchasing the MRX-4SEN2 Sensor Extender. Expand your MRX-Advanced Network System Controller sensor coverage by adding additional MRX-4SEN2 units throughout the home or office. Take advantage of the networking capabilities and control your MRX-4SEN2 via Wi-Fi or wired connection. ●...
- Page 5 Front Panel The front panel consist of three indicator lights: Illuminates red when connected to power. The LED color varies depending on the device’s Wi-Fi connection: Illuminates green ● Illuminates orange ● Not illuminated ● This LED flashes as the MRX-4SEN2 transmits data to the MRX Advanced System Controller.
- Page 6 & same ratings described on the product label ( Connect the sensor’s 3.5mm plug to an available port. The following URC sensors, with their respective model numbers, are compatible with the MRX-4SEN2: ● Voltage Sensor SEN-VOLT ●...
- Page 7 Bottom Panel The bottom panel consists of: The serial number, located at the bottom of the unit, uniquely identifies the product. The MAC Address (12 numbers) identifies this device when connected to the network. Functions with other wireless devices (routers, wireless access points, etc.) to provide a simplified method of connection to the network.
- Page 8 Before proceeding, a Custom Professional is required to install and configure you MRX-4SEN2. Connect the 3.5mm sensor plug to the rear of the MRX-4SEN2. When a change in the sensor’s state is detected, the MRX-4SEN2 sends a signal to the MRX Advanced System Controller and triggers a series commands.
- Page 9 Wireless Setup The key feature added to the MRX-4SEN2 is adding Wi-Fi connectivity to an already brilliant sensor expander. Wi-Fi connection makes it simple to install the device in difficult to reach locations of the home. Steps: Go to and select Page 6...
- Page 10 Fill out the wireless network information in the window, when finished select 3. Press located below 4. Select from the sub menu in Step 6 5. Discover the MRX-4SEN2 (if you have not already) using the method for all other URC network devices Page 7...
- Page 11 Highlight the MRX-4SEN2 and double-click on the area that reads 7. Select via Network Page 8...
- Page 12 8. Unplug the Ethernet cable from the back of the MRX-4SEN2 unit. Page 9...
- Page 13 (1) year from the date of purchase of the product by the end-user, but no longer than thirty-six (36) months from the date of shipment of the URC equipment by URC to an authorized URC dealer or distributor, except that with respect to Total Control®...
- Page 14 In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment for new or rebuilt equipment.
- Page 15 URC equipment. This limited warranty does not cover the URC equipment sold as used, as is, refurbished, so called "B stock" or consumables (such as batteries). This limited warranty is invalid if the factory applied serial number has been altered or removed from the URC equipment.
- Page 16 LOSS OF PROFITS OR BUSINESS OPPORTUNITY, EVEN IF URC IS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS. URC'S LIABILITY, IF ANY, FOR DIRECT DAMAGES OF ANY FORM SHALL BE LIMITED TO ACTUAL DAMAGES, NOT IN EXCESS OF AMOUNTS PAID BY END USER FOR THE URC EQUIPMENT.
- Page 17 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 18 Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. The device and the antenna for this device must be installed to ensure a minimum separation distance of 20 cm more from a person's body. Other operating configurations should be avoided.
- Page 19 ● ● ● ● Symbol explanations DISPOSAL. Do not use household or municipal waste collection services for disposal of electrical and electronic equipment. EU countries require the use of separate recycling collection services. DIRECT CURRENT. Page 16...
- Page 20 Page 17...
