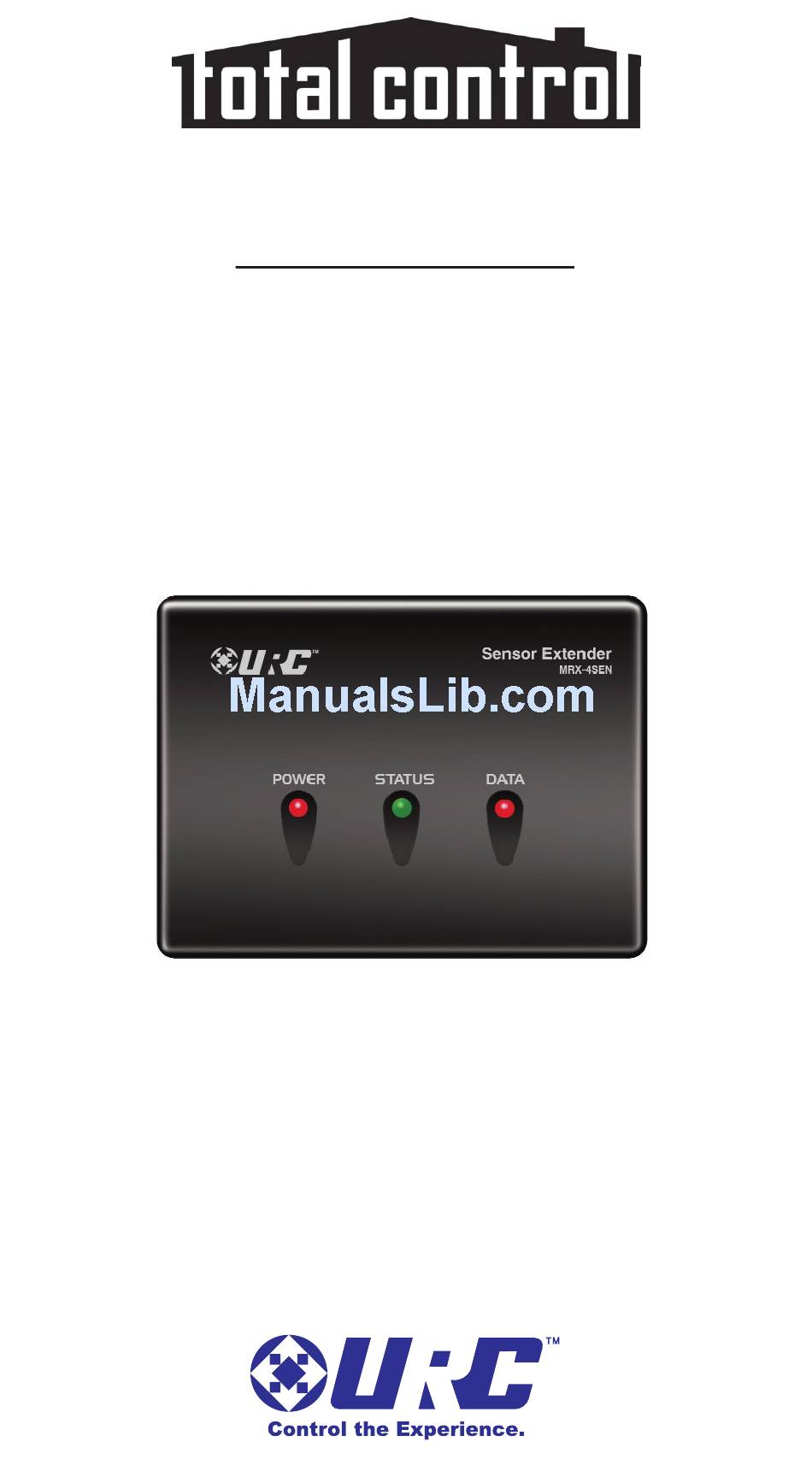

- Page 1 Owner’s Manual MRX-4SEN Sensor Extender...
- Page 2 Total Control is a registered trademark of Universal Remote Control, Inc. URC Control The Experience is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
-
Page 3: Table Of Contents
ABLE ONTENTS Introduction Features and Benefits Parts Guide Front, Rear, and Bottom Panel Descriptions Network Installation Specifications USA Limited Warranty Statement End User Agreement Federal Communication Commission Interference Statement Declaration of Conformity... -
Page 4: Introduction
URC’s 2.4GHz wireless connection. • Compact Size The small size of the MRX-4SEN allows it to easily fit behind equipment or into places where a traditional base station would not. Parts Guide... -
Page 5: Front, Rear, And Bottom Panel Descriptions
Status LED: The Status LED color will vary depending upon its connected state: ● Connected: Illuminates green ● Low Signal: Illuminates orange ● Not Connected: Not illuminated Data LED: The Data LED flashes as the MRX-4SEN transmits data to a MRX Advanced Network System Controller. Page 2... -
Page 6: Rear Panel
DC 12V Power: Plug in the included 12V DC 1A power supply. Sensor Inputs: Connect the sensor’s 3.5mm plug to an available port. The following URC sensors, with their respective model numbers, are compatible with the MRX-4SEN: ● Voltage Sensor SEN-VOLT ●... -
Page 7: Bottom Panel
4SEN. While testing, the Status LED will update and display its current connection setting. (Refer to page 2 for Status LED information.) Reset button: Turns the unit OFF then ON again, and reconnects to the URC 2.4GHz RF signal. Page 4... -
Page 8: Network Installation
WARNING!! Before proceeding, a Custom Professional is required to install and configure your MRX-4SEN. Connect the 3.5mm sensor plug to the rear of the MRX-4SEN. When a change in the sensor’s state is detected, the MRX-4SEN sends a signal to the MRX Advanced Network System Controller and triggers a series of commands. -
Page 9: Specifications
XTENDER Specifications Sensor : Four sensor ports support Video, Current, Contact Closure, Ambient Light, Audio, and Voltage sensors from URC. USB : Mini USB for future firmware upgrade use. RF Range(radio frequency) : 50 to 100 feet, depending upon the environment RF Frequency : 2.405 ~ 2.480 GHz... -
Page 10: Usa Limited Warranty Statement
WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE OR THAT THERE ARE NO ERRORS/BUGS IN THE URC SOFTWARE. URC warrants that at the time of purchase the URC equipment and the URC software complied with all applicable regulations and policies of the Federal Communications Commissions (“FCC”) regarding electromagnetic... - Page 11 In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment for new or rebuilt equipment.
-
Page 12: End User Agreement
OF ANY KIND OR LOSS OF PROFITS OR BUSINESS OPPORTUNITY, EVEN IF URC IS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS. -
Page 13: Federal Communication Commission Interference Statement
MRX-4SEN S ENSOR XTENDER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 14: Declaration Of Conformity
MRX-4SEN S ENSOR XTENDER Declaration of Conformity Company Name OH SUNG ELECTRONICS CO., LTD. Company Address #181 GONG DAN-DONG, GUMI, GYEONG BUK, REPUBLIC OF KOREA Contact Information Phone: +82-54-468-7281, Fax: +82-54-461-8368 Brand Name UNIVERSAL remote control Product Name Sensor Extender... - Page 15 NOTE Page 12...
- Page 16 NOTE Page 13...
- Page 17 NOTE Page 14...
- Page 18 NOTE Page 15...
