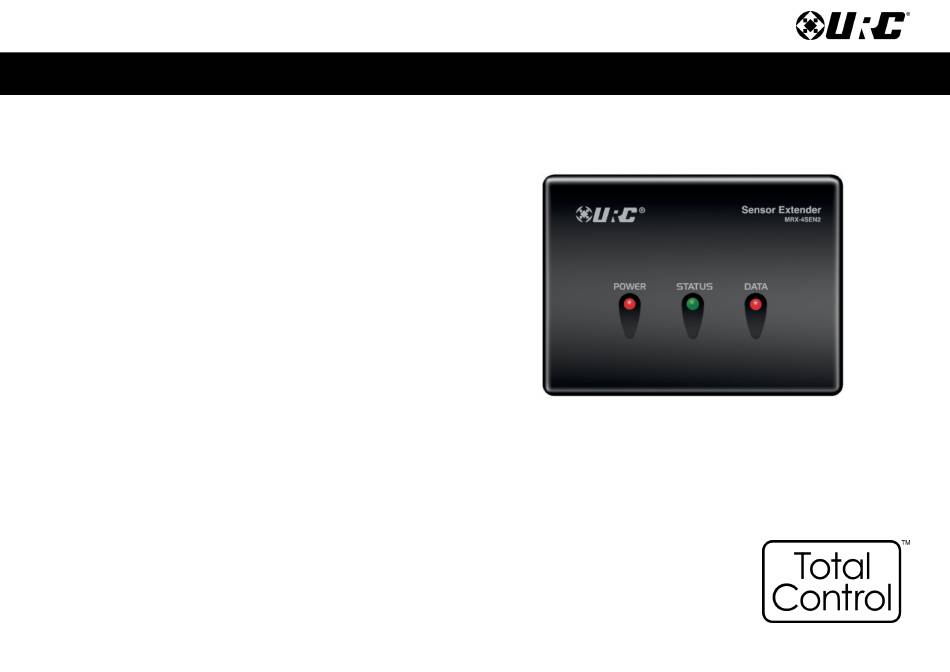

MRX-4SEN2
Total Control
Owner's Manual
MRX-4SEN2
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Total Control MRX-4SEN2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for URC Total Control MRX-4SEN2

Summary of Contents for URC Total Control MRX-4SEN2

  • Page 1 MRX-4SEN2 Total Control Owner’s Manual MRX-4SEN2 Owner’s Manual...

  • Page 2: Table Of Contents

    Specifications ....................................................9 Limited Warranty Statement................................................9 Technical Suppor t Toll Free: 800-904-0800 Main: 914-835-4484 techsupport@urc-automation.com H o u r s : 9 : 0 0 a m - 5 : 0 0 p m E S T M - F Rev 1.0...

  • Page 3: Introduction

    MRX-4SEN2 Total Control Owner’s Manual Introduction The MRX-4SEN2 Sensor Extender is designed to meet the needs of residential or small commercial environments. Only Total Control software, products, and user interfaces are supported by this powerful device. Features and Benefits • The MRX-4SEN2 utilizes the network (wired or wireless) for a more stable communication to the Total Control System that is less susceptible to interference and more reliable.

  • Page 4: Front Panel Description

    MRX-4SEN2 Total Control Owner’s Manual Front Panel Description The front panel of the MRX-4SEN2 Sensor Extender displays the following information: 1. Power LED: Indicates the device has power. 2. Status LED: Indicates three (3) possible states: ■ Green: Good signal strength. When connected via ■...

  • Page 5: Rear Panel Description

    1. DC 5V: Connect the supplied power adapter to this port, the Power LED becomes solid blue when the device has received power. 2. Sensor Inputs: Connect the sensor’s 3.5mm plug to an available port. The following URC sensors, with their respective model numbers, are compatible with the MRX-4SEN2: ■ Voltage Sensor SEN-VOLT ■...

  • Page 6: Bottom Panel Description

    MRX-4SEN2 Total Control Owner’s Manual Bottom Panel Description The bottom panel of the MRX-4SEN2 Sensor Extender displays the following information: 1. Serial Number Sticker: The ZIGBEE Address (16 characters) identifies this wireless device when connected to the network. 2. MAC Number Sticker: The serial number, located at the bottom of the unit, uniquely identifies the product.

  • Page 7: Installing The Mrx-4Sen2

    MRX-4SEN2. Whenever the door bell is pressed, a signal is sent over URC’s RF 2.4GHz to the MRX Advanced Network System Controller. The MRX unit triggers a series of commands or an event to gain your attention. A programmed event, such as Watch Movie/TV, may pause the movie, mute the audio and display the front door’s video camera.

  • Page 8: Wireless Setup

    MRX-4SEN2 Total Control Owner’s Manual Wireless Setup The key feature added to the MRX-4SEN2 is adding Wi-Fi connectivity to an already brilliant sensor expander. Wi-Fi connection makes it simple to install the device in difficult to reach locations of the home. 1.
  • Page 9 2. Fill out the wireless network information in the Wireless Network Key window. Select OK when finished. 3. Select Save, located below 2. LAN Wireless Networks. 4. Select URC Device from the sub-menu in Step 6. 5. Discover the MRX-4SEN2 using the method for all URC network devices.
  • Page 10 MRX-4SEN2 Total Control Owner’s Manual 6. Highlight the MRX-4SEN2 and double-click on the area that reads DHCP. 7. Select Send Wireless AP List via Network. 8. Unplug the Ethernet cable from the back of the MRX-4SEN2 unit. The MRX-4SEN2 connects to Wi-Fi automatically after the Wireless AP list has been downloaded and the Ethernet cable has been removed.

  • Page 11: Specifications

    Total Control Owner’s Manual Specifications Sensor: Four sensor ports support Video, Current, Contact Closure, Limited Warranty Statement Ambient Light, Audio, and Voltage sensors from URC. https://www.urc-automation.com/legal/warranty-statement/ Network: One 10/100/1000M RJ45 Ethernet port (two LED indicators) End User Agreement The terms and conditions of the End User Agreement available at RF Range (Radio Frequency): 50 to 100 feet, depending upon the https://www.urc-automation.com/legal/end-user-agreement/...
  • Page 12 MRX-4SEN2 Total Control Owner’s Manual Warning! The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Regulatory Information to the User •...
