Front, Rear, and Bottom Panel Descriptions

Front Panel

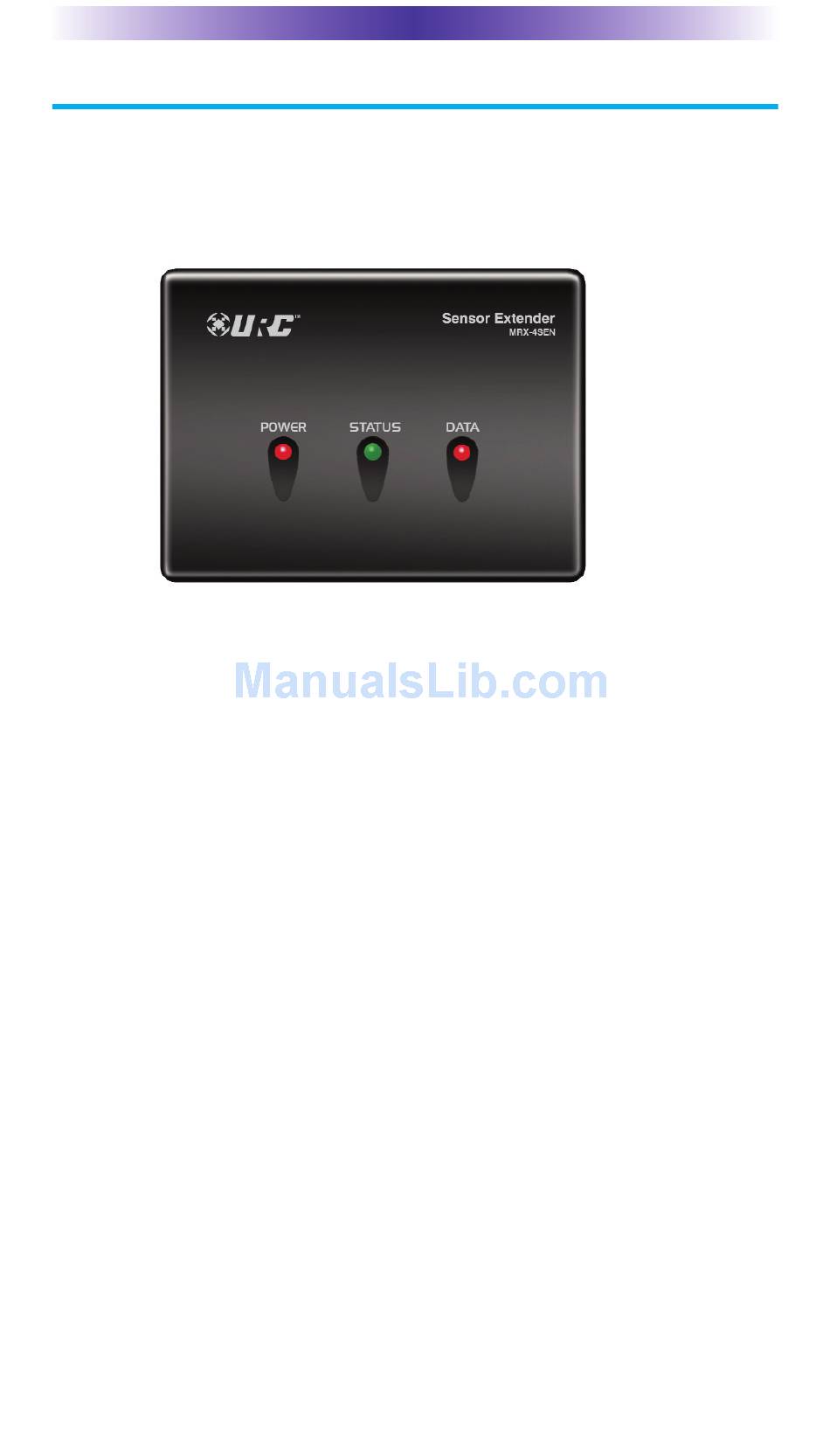

The front panel consists of three indicator lights:
Power LED: The Power LED illuminates when the unit is powered.
Status LED: The Status LED color will vary depending upon its
connected state:
● Connected: Illuminates green
● Low Signal: Illuminates orange
● Not Connected: Not illuminated
Data LED: The Data LED flashes as the MRX-4SEN transmits data to
a MRX Advanced Network System Controller.
