2. Installation

Cinema Inputs (SMPTE 292 / HD-SDI)

For cinema use, this will be the main input port for the projector. The two inputs can
be configured as follows:
• one dual SMPTE 292 port
• two separate, individually selectable single SMPTE 292 ports.
The following source formats will be recognised and decoded by the projector
electronics:
• SMPTE 274M
• SMPTE RP211
• SMPTE 295M
• SMPTE 260M
• SMPTE 296M
HDSDI is a 1.4Gb link, therefore the following or similar cable specification should
be used to ensure fault free communication between source and projector.
• Belden 8281 or equivalent with 75ohm BNC

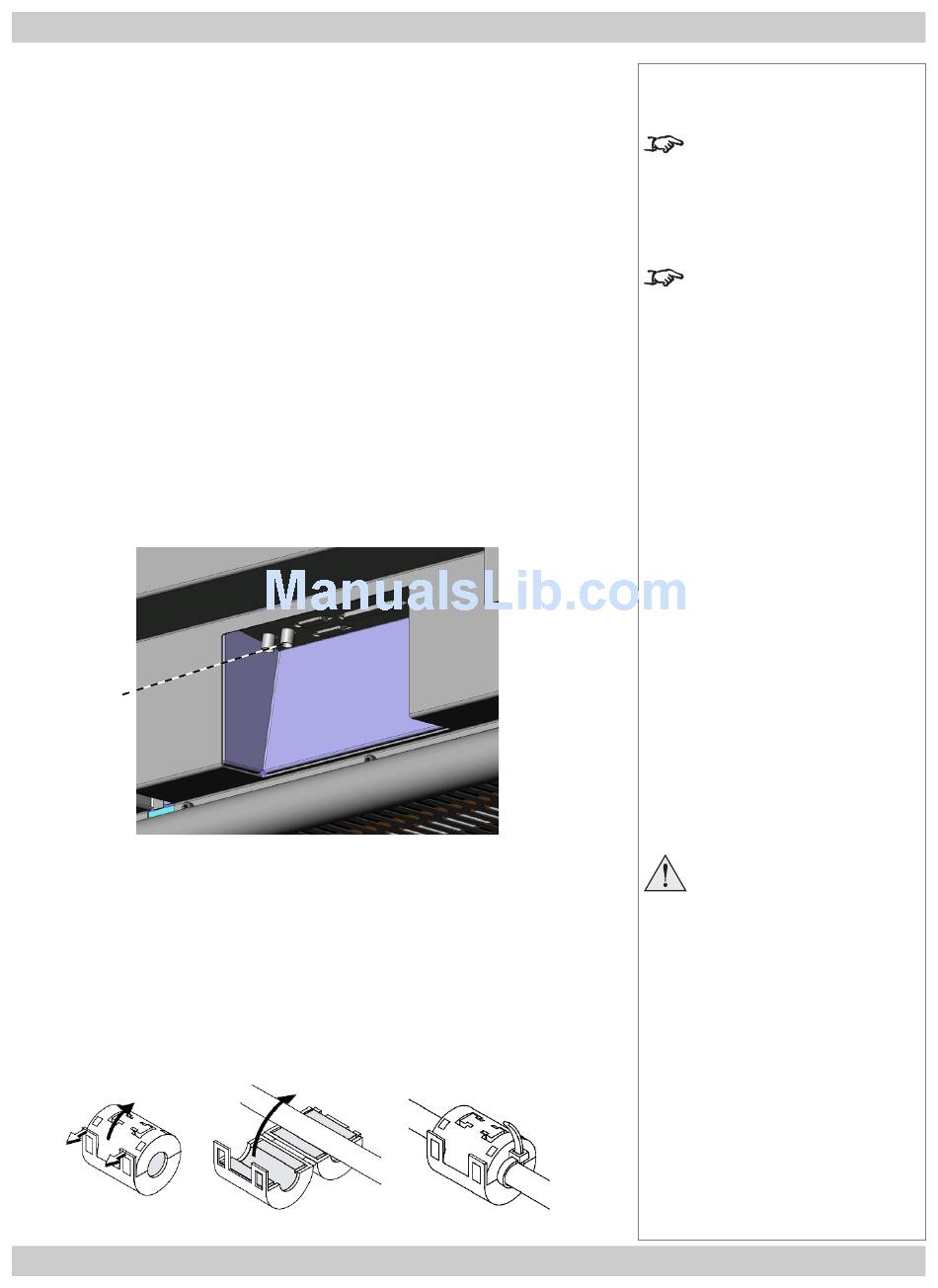

Cinema inputs
SDI A and
SDI B

Fitting a ferrite-core clamp

Fit a ferrite-core clamp to each SDI cable used.
• Prise open the catches to open the clamp.
• Position the clamp close to the projector end of the SDI cable, and close it firmly
around the cable, so that the catches snap shut.
• Fasten a cable tie close to the clamp, to ensure that the clamp stays in place.
iS15-2K
page 2.26
Cinema Projector: User Manual
Notes
For more information about
input connectors see
Connections, in section 6.
Appendix.
For more information about
supported input formats see
Specification, in section 6.
Appendix.
A ferrite-core clamp must be
fitted to each SDI cable used,
to ensure protection from
radio frequency interference.
