INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE: SAVE THESE INSTRUCTIONS

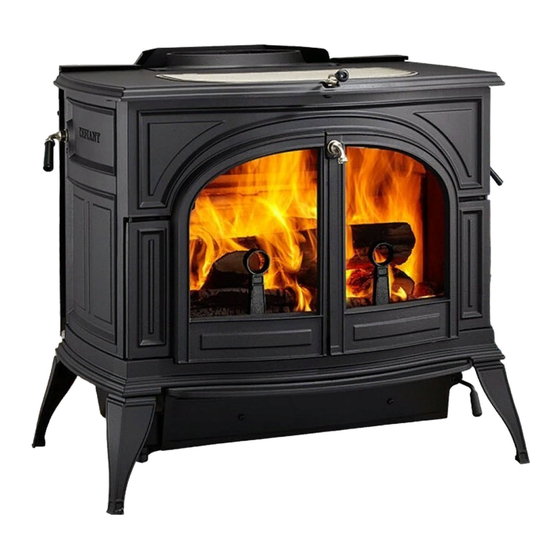

Defiant® Flexburn 1975
Wood Burning Stove
For use in Europe, Japan & Australia
!
If the information in these instructions is not
followed exactly, a fire may result causing
property damage, personal injury, or death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void your
warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
8390-035C
Owner's Manual
Operation & Care
2425
Encore NC Cover
WARNING
5/05
Vermont Castings • Defiant Flexburn 1975 Owner's Manual_R1 • 2021 - ___ • 08/21
SAFETY NOTICE: IF THIS APPLIANCE IS NOT
P R O P E R LY I N S TA L L E D , O P E R AT E D A N D
MAINTAINED, A HOUSE FIRE MAY RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW THE
INSTALLATION INSTRUCTIONS. FAILURE TO
F O L L O W I N S T R U C T I O N S M AY R E S U LT I N
PROPERTY DAMAGE, BODILY INJURY OR EVEN
DEATH. CONTACT LOCAL BUILDING OFFICIALS
ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
!
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fireplace.
•
Alert children and adults to hazards of high
temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
!
Tested and approved for use with dry, seasoned cordwood
only. Do Not Burn Wet or Green Wood. Burning any other
type of fuel will void your warranty.
WARNING
CAUTION
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Defiant Flexburn 1975 and is the answer not in the manual?

Questions and answers

Related Manuals for Vermont Castings Defiant Flexburn 1975

Summary of Contents for Vermont Castings Defiant Flexburn 1975

  • Page 1 • Do not over fire - If appliance or chimney connector glows, you are over firing. Over firing will void your warranty. • Comply with all minimum clearances to combustibles as specified. Failure to comply may cause house fire. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 2 352 Mountain House Road Halifax, PA 17032 Barcode label must have the serial number on it. The barcode label must be able to read Code 39 Full ASCII. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...

  • Page 3: Table Of Contents

    A. Service & Maintenance Log ........22 G. Negative Pressure ........... 14 B. Service Parts & Accessories ........23 H. Important Information ..........15 C. Contact Information ..........30 = Contains updated information  8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 4: Warranty Policy

    Firebox and heat exchanger, FlexBurn® System 3 years Lifetime (engine, inner cover, access cover and fireback) None 1 Year All purchased replacement parts Page 1 of 2 4021-645L 10/20 Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...
  • Page 5 EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Page 2 of 2 4021-645L 10/20 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 6: Product Listing And Important Safety Information

    B. Glass Specifications Abgastemperatur: 184,5 °C Staub-CO-Emission (bei 13% O2): 8,9 mg/NM This appliance is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact Treibstoffart: Wood your dealer for replacement glass. Sicherheitsabstand (hinten): 400 mm Sicherheitsabstand (seitlich): 400 mm Sicherheitsabstand (vorne): Operationstyp: Intermittent 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 7 NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifications and/or price without notice. Vermont Castings is a registered trademark of Hearth & Home Technologies. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 8: Operating Instructions

    It is against federal Figure 2.3 - The damper is either open or closed. There are no regulations to alter this setting or otherwise operate this intermediate positions. wood heater in a manner inconsistent with operating instructions in this manual. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...

  • Page 9: Conditioning Your Stove

    If doors are left partly open, gas and flame may be drawn out of the fireplace stove opening, creating risks from both fire and smoke. ST263 ST544 starting a fire door open 12/99 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 11/00...
  • Page 10 To determine whether the combustor is operating, refer to the temperature probe which shows the operating range of the catalytic combustor. This is located on the back of the stove and is viewed from the top. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...
  • Page 11 If hardwood is not available, you can burn softwoods that include tamarack, yellow pine, white pine, Eastern red cedar, fir, and redwood. These should also be properly dried. Store split wood under cover to keep it dry. Even for short- term storage, be sure to keep wood a safe distance from the stove and keep it out of the areas around the stove used for refueling and ash removal. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 12 ® Flexburn 1975, and could even damage the stove. On the other hand, too little draft can cause backpuffing into the room and/or the “plugging” of the chimney. How do you know if your draft is excessively high or low? Symptoms of too much draft include an uncontrollable burn or a glowing-red stove part. Signs of weak draft are smoke leaking into the room through the stove or chimney connector joints or low heat output. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...

  • Page 13: Ash Disposal

    Figure 2.9- Turn the ashdoor handle clockwise to open and of the ash properly. counterclockwise to close. • Slide the cover onto the pan, making sure it is securely closed, Figure 2.10. ST545 ashdoor 11/00 Figure 2.10 - Be sure the cover is securely attached before removing the ash pan. ST566 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 remove ashpan...

  • Page 14: Opacity (Visible Smoke)

    • Attic hatches weather stripped or sealed • Attic mounted duct work and air handler joints and seams When burning your first fire, you will experience smoke and taped or sealed odor from the appliance resulting from the curing of paint and burning off of any oils remaining from manufacturing. OPEN WINDOWS DURING INITIAL BURN TO DISSIPATE SMOKE AND ODORS! • Odors may be irritating to sensitive individuals. • Smoke detectors may activate. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...

  • Page 15: Important Information

    Dry wood burns readily with a good chimney draft. But with modern stoves, wood can be too dry and too volatile. Smoke and combustible gases can ‘gas out’ from the wood quickly and densely enough to overload the combustion system. If you hear a rumbling or roaring noise (like a propane torch) from the stove, that is a sign that the stove is over-firing. Back-puffing results when the fire produces volatile gases faster than the chimney draft pulls them out of the firebox. The gases back up in the firebox until they are concentrated enough and hot enough to ignite. If your stove back-puffs, the stove needs to cool down. You should open the damper to let the smoke rise to the flue more quickly, allow more air into the firebox, avoid big loads of firewood and check that the wood moisture is not too low. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...

  • Page 16: Maintenance

    • Rinse the glass thoroughly. • Dry the glass completely. Replace Broken Glass Immediately ST547 door install Do not operate your stove if the glass in the doors is damaged. 11/00 If you need to replace the glass, use only the high temperature 5 mm ceramic glass supplied by Vermont Castings. Do not use substitutes. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 17: Damper Adjustment

    1. Remove the existing gasket by grasping an end and pulling back into proper alignment. We have provided a detailed firmly, Figure 3.4. video explaining how to properly adjust the ash door. Note: For video instruction please refer to www. vermontcastings.com. Click on the YouTube link located ► in the upper right hand corner next to the “Search” bar. Figure 3.4 - Remove gasket then clean channel with wire brush. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...

  • Page 18: The Chimney System

    5/16” diameter gasket seals the following parts: If you cannot inspect or clean the chimney yourself, contact • The lower fireback to the back panel your local Vermont Castings dealer or a professional chimney sweep. • The left and right air plates (inner sides) • All connections between the stove plates. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 19: The Catalytic Element

    Figure 3.6 - Inspect and clean out ash accumulation behind the combustion system. if necessary. This may be done when you examine the ST1162 combustor. ash clean out 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 20 Inspecting the Combustor the catalytic element will need to be replaced. Contact your Remove access door and inner firebrick. Remove the catalytic nearest Vermont Castings’ Authorized Dealer for information combustor by lifting up and pulling towards you, Figure 3.7. about a replacement element. NOTE: Use only the replacement catalyst supplied by a Vermont Castings dealer. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 21: Troubleshooting Guide

    Manual). Open damper. Establish deeper coal Low Heat Output Coal Bed too small bed and move coals to the rear of the firebox. Reduce burn rate and allow coals to Excessive Coal Bed Operating on high for extended periods burn down before reloading. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.vermontcastings.com to locate a dealer. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 22: Reference Material

    Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 23: Service Parts & Accessories

    0001979T-I (Bordeaux w/Transition Doors) (End Manufacturing Date: March 2017 ) 0001980-I (Twilight) 0001980T-I (Twilight w/Transition Doors) (End Manufacturing Date: March 2017) 0001975T-I (Classic Black w/Transition Doors) Part number list on following page. 05/20 Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...
  • Page 24 Biscuit SRV30002872 Bordeaux SRV30006697 Left Side Ebony SRV30002892 Majolica Brown SRV30004834 Twilight SRV30007126 Left Air Manifold 30002818 Additional service part numbers appear on following page. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 25 30002826 Hinge Hardware Post 0081391652 1-00-2826 Cotter Pin, Ashdoor ( Pkg of 10 ) Pre 0081391652 30001749-10 Additional service part numbers appear on following page. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...
  • Page 26 Left Door Sub Assembly (Transition Door Enamel) Bordeaux 30007179 30007181 Majolica Brown Twilight 30007183 Door Hinge Strip 1300645A Additional service part numbers appear on following page. 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 27 Right Door Glass 30005247 Lower Door Hinge Pin 30002727 Spacer ( For Damper Rod ) Pkg of 10 1201779-10 Additional service part numbers appear on following page. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...
  • Page 28 Heat Plate Vertical Flue 30005265 Catalyst, Ceramic 30006623 Thermostat Handle Assembly 30007067 Primary Air Cover 30007069 Primary Air Base 30007071 Temperature Probe 30007274 Braket, Temperature Probe 30007278 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...
  • Page 29 Twilight SRV30007135 Classic Black 1302220A Biscuit SRV30002948 Dragon Bracket Bordeaux 30006690A Majolica Brown SRV30004818 Twilight SRV30007075 Bracket, Left 30002478A Bracket, Right 30002479A Finish Bag 30005221K 8390-035C Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21...

  • Page 30: Contact Information

    We recommend that you record the following pertinent information for your heating appliance. Date purchased/installed: Serial Number: Location on appliance: Dealership purchased from: Dealer phone: Notes: This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645, 7047962 or other U.S. and foreign patents pending. Vermont Castings • Defiant Flexburn 1975 Owner’s Manual_R1 • 2021 - ___ • 08/21 8390-035C...
