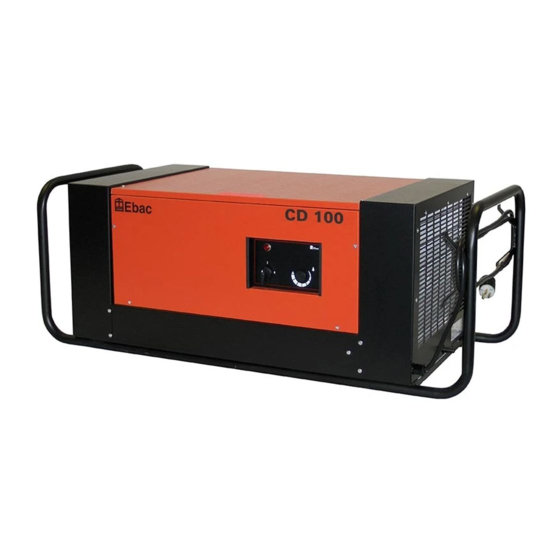

EBAC MODEL CD100
OWNER'S MANUAL
Ebac Commercial Ltd
St Helens Trading Estate
Bishop Auckland
Co. Durham
DL14 9AD
Telephone: (01388) 664400
Fax: (01388) 662590
Website:
www.ebacuk.com
CD100 OWNERS MANUAL
DEHUMIDIFIER
Ebac Industrial Products
704 Middle Ground Boulevard
Newport News
VA 23606
Telephone (757) 873-6800
Fax (757) 873-3632
Website:
www.ebacusa.com
Drawing No. :- TPC112
Issue
:- 1
Date
:- 20/06/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ebac CD100

Summary of Contents for Ebac CD100

  • Page 1 Drawing No. :- TPC112 Issue :- 1 Date :- 20/06/03 EBAC MODEL CD100 DEHUMIDIFIER OWNER’S MANUAL Ebac Commercial Ltd Ebac Industrial Products St Helens Trading Estate 704 Middle Ground Boulevard Bishop Auckland Newport News Co. Durham VA 23606 DL14 9AD...
  • Page 2 The CD100 dehumidifier is a rugged reliable drying unit designed to operate effectively over a broad range of temperature and humidity conditions. A powerful and reliable active hot gas defrost system, controlled by an electronic timer, guarantees positive de-icing and thereby optimising operation at low temperatures.

  • Page 3: Specifications

    500mm EPTH 50 Kg EIGHT 510 M IRFLOW UK-220V/240V, 1 ph, 50Hz/60Hz OWER UPPLY USA-110V/120V, 1 ph, 50Hz/60Hz 1.2kW (max) OWER Vinyl coated steel INISH R407c (540g) EFRIGERANT Choice of aids – wheels or skid handles OBILITY CD100 OWNERS MANUAL...
  • Page 4 The CD100 may also be fitted with a water pump (optional), which is capable of discharging the condensate water 30ft away from the unit. The water can, therefore, be discharged into a drain some distance away.

  • Page 5: Operation

    6. Ensure the condensate drains away from the machine. Setting the Adjustable Humidistat The position of the humidistat depends on the application the CD100 is being used for and the conditions within the area to be dried. The worse the conditions within the area then the higher the humidistat should be set (i.e.
  • Page 6 30ft. Indicator Panel The CD100 is fitted with an indicator lamp to show when power is available and the unit is switched on, if this does not appear to be functioning correctly then refer to the repairs section.

  • Page 7: Routine Maintenance

    Check all wiring connections. F ANY OF THE PRECEDING PROBLEMS OCCUR CONTACT THE ERVICE ENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO PREVENT PERMANENT DAMAGE CD100 OWNERS MANUAL...
  • Page 8 An open circuit indicates that the compressor should be replaced. c. Check that the compressor is not grounded by establishing that a circuit does not exist between the compressor terminals and the shell of the compressor. CD100 OWNERS MANUAL...

  • Page 9: Troubleshooting

    Water flooding inside 2. Sticking float switch 2. Remove obstruction machine 3. Drain tray blocked 3. Remove obstruction Ebac Industrial Products 704 Middle Ground Boulevard Newport News VA 23606 Telephone (757) 873-6800 FAX (757) 873-3632 Website: www.ebacusa.com CD100 OWNERS MANUAL...
