Summary of Contents for Ebac CS60

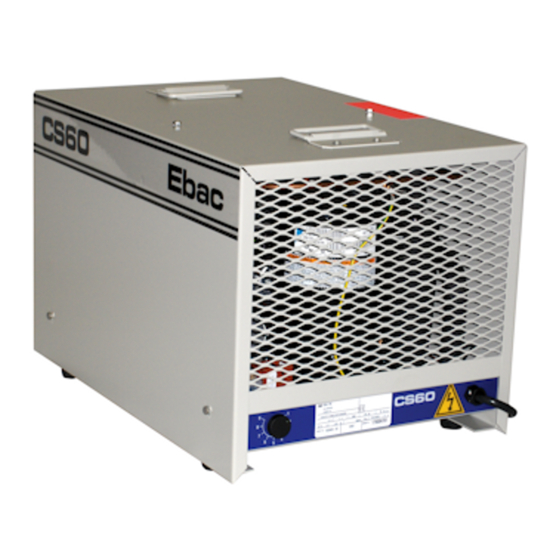

- Page 1 Drawing No. :- TPC302 Issue :- 1 Date :- 12/07/04 EBAC MODEL CS60 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL CS60 OWNERS MANUAL...
- Page 2 Date :- 12/07/04 INTRODUCTION Designed for a wide range of applications, the CS60 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The CS60 has a number of special features: •...
-
Page 3: Specifications
20.25 ” (514.35mm) EPTH 62.83lbs (28.5 kg) EIGHT 360 CFM IRFLOW 56 Pints Per Day XTRACTION At 80ºF/60% RH 115V/ 60Hz/ 1 ph OWER UPPLY Powder-coated Epoxy INISH 33°F – 105°F PERATING ANGE R-22 (13 oz) EFRIGERANT CS60 OWNERS MANUAL... -
Page 4: Operation
:- 12/07/04 OPERATION The following procedures should be followed to test the CS60 for correct operation: After unpacking, examine all external features to confirm damage-free shipment. Report all defects and damage at once. Connect the power cable to a grounded 15 Amp electrical outlet. -
Page 5: Routine Maintenance
F ANY OF THE PRECEDING PROBLEMS OCCUR CONTACT THE ERVICE ENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO PREVENT PERMANENT DAMAGE CS60 OWNERS MANUAL... - Page 6 An open circuit indicates that the compressor should be replaced. c. Check that the compressor is not grounded by establishing that a circuit does not exist between the compressor terminals and the shell of the compressor. CS60 OWNERS MANUAL...
-
Page 7: Troubleshooting
3. Crimped or blocked tubing 3. Straighten, clear, or replace tubing Ebac Industrial Products 704 Middle Ground Boulevard Sales Inquiries: 800-934-9194 Newport News VA 23606 Telephone (757) 873-6800 FAX (757) 873-3632 CS60 OWNERS MANUAL... -
Page 8: Spare Parts List
3030908 Humidistat 3035145 Mains Lead 3035148 Fan Motor 3035788 Relay 3036157 Axial Fan 3040129 Fan Inlet Ring 3040326 Rubber Foot 3101436 Drain Tubing 3014338 9 Feet Drain Tube Jubilee Clip 3086101 Condenser Coil 2026014 Evaporator Coil 2026013 CS60 OWNERS MANUAL... -
Page 9: Limited Warranty
Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 12 Fan Inlet Ring Fan Motor Fan Blade Electrical Box Capacitor Timer Relay Solenoid Coil Solenoid Valve Humidistat TITLE LIMITED CS60 GENERAL ASSEMBLY Compressor 1993 BISHOP AUCKLAND ENGLAND Cover MATERIAL C LILLY DRAWN : DIMENSIONS IN m.m. 3RD ANGLE PROJECTION VARIOUS...
