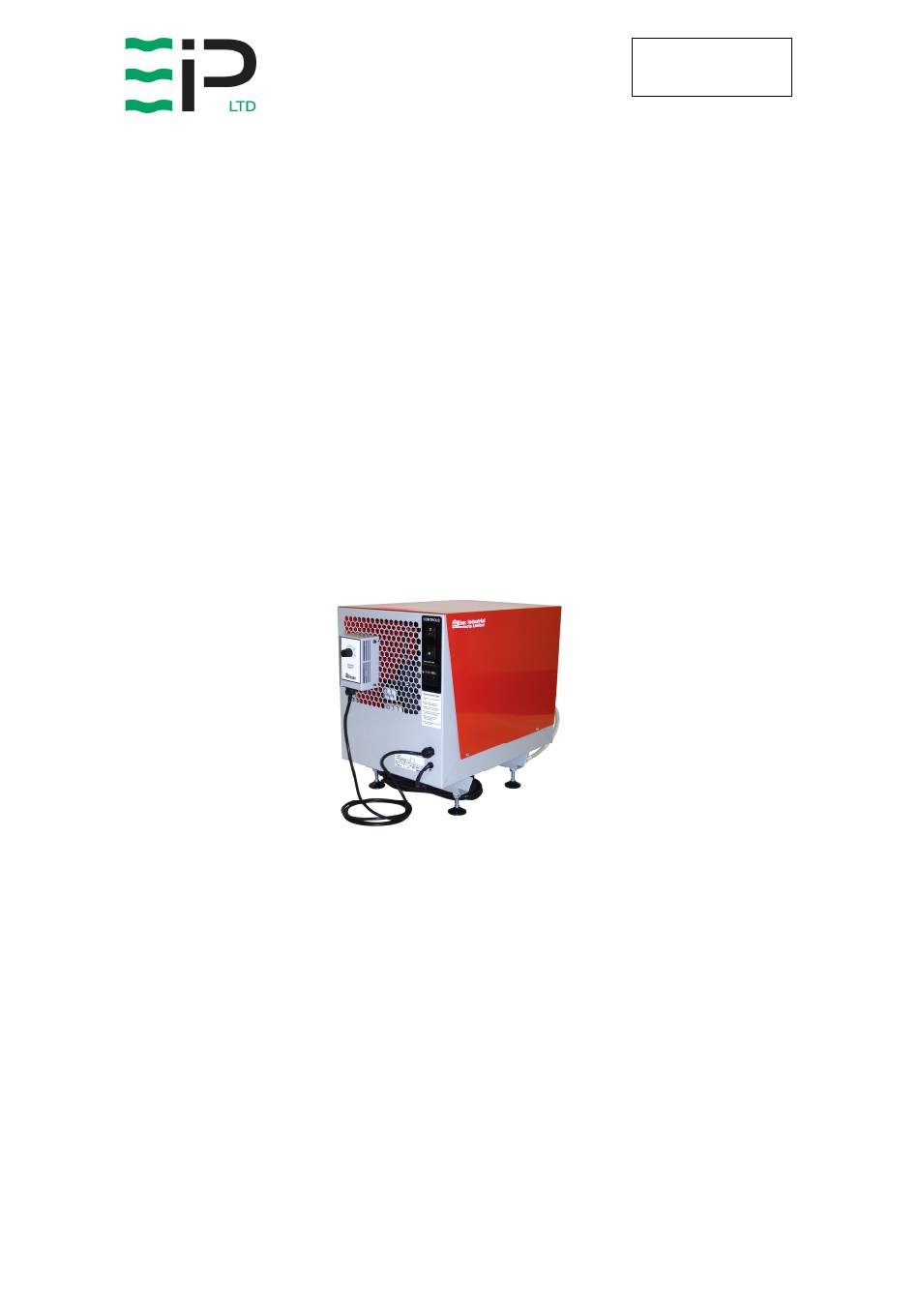

- Page 1 Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 CD60 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL Page 1 of 12 E B A C C D - 6 0 D E H U M I D I F I E R...
-
Page 2: Package Contents

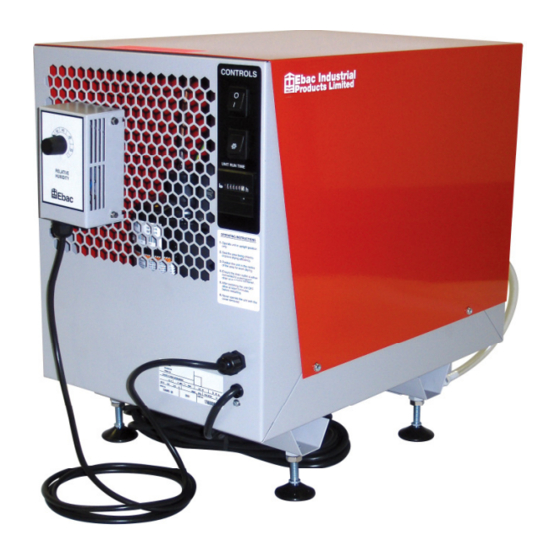

Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 CD60 PACKAGE CONTENTS Item Description Quantity 10264FR-US Dehumidifier 3086144 Quick release hose coupling 3944110 PVC Tube – 3/8” I/D 7.8M TPC249 Manual Page 2 of 12 E B A C C D - 6 0 D E H U M I D I F I E R... - Page 3 Date : - 10/12/13 INTRODUCTION Designed for a wide range of applications, the CD60 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The CD60 has a number of special features: •...
-
Page 4: Specifications
EFRIGERANT "This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The refrigeration system is hermetically sealed. The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac Industrial Products Ltd is as follows R134a – 1300 R407c –... -
Page 5: Operation
: - 7 Date : - 10/12/13 OPERATION The following procedures should be followed to test the CD60 for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded 15 Amp electrical outlet. -
Page 6: Routine Maintenance
Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the dirt out from behind the fins with compressed air. - Page 7 Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 8: Troubleshooting
Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 2. -
Page 9: Spare Parts List
Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 CD 60 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Compressor (RGA5467EXA) 3022169 Compressor Overheat Protector Compressor Capacitor 3030908 Condenser Coil 2026014 Evaporator Coil 2026074 Filter Dryer 3020901 Fan Motor Assembly 3035753 By-pass Valve 3020814... - Page 10 Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 Drain tube P-clip 3035697 Drain Tubing 3014336 25ft Trolley (optional) 1026004 Wheel 3050110 1” Starlock Washer 3082601 Condensate Pump 3160129 Purge Switch 3036779 Quick Disconnect 3086144 Snap Hose Clip 3086135 Hose Clip Snapper 3086136...
-
Page 11: Limited Warranty
Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit. - Page 12 Drawing : - TPC249 Issue : - 7 Date : - 10/12/13 Distributed by: Pure n Natural Systems, Inc. PO Box 1137 Streamwood, IL 60107 purennatural.com | 1-800-237-9199 | FAX# 630-540-9717 Page 12 of 12 E B A C C D - 6 0 D E H U M I D I F I E R Pure n Natural Systems | purennatural.com | 1-800-237-9199...
