Summary of Contents for Ebac CD200

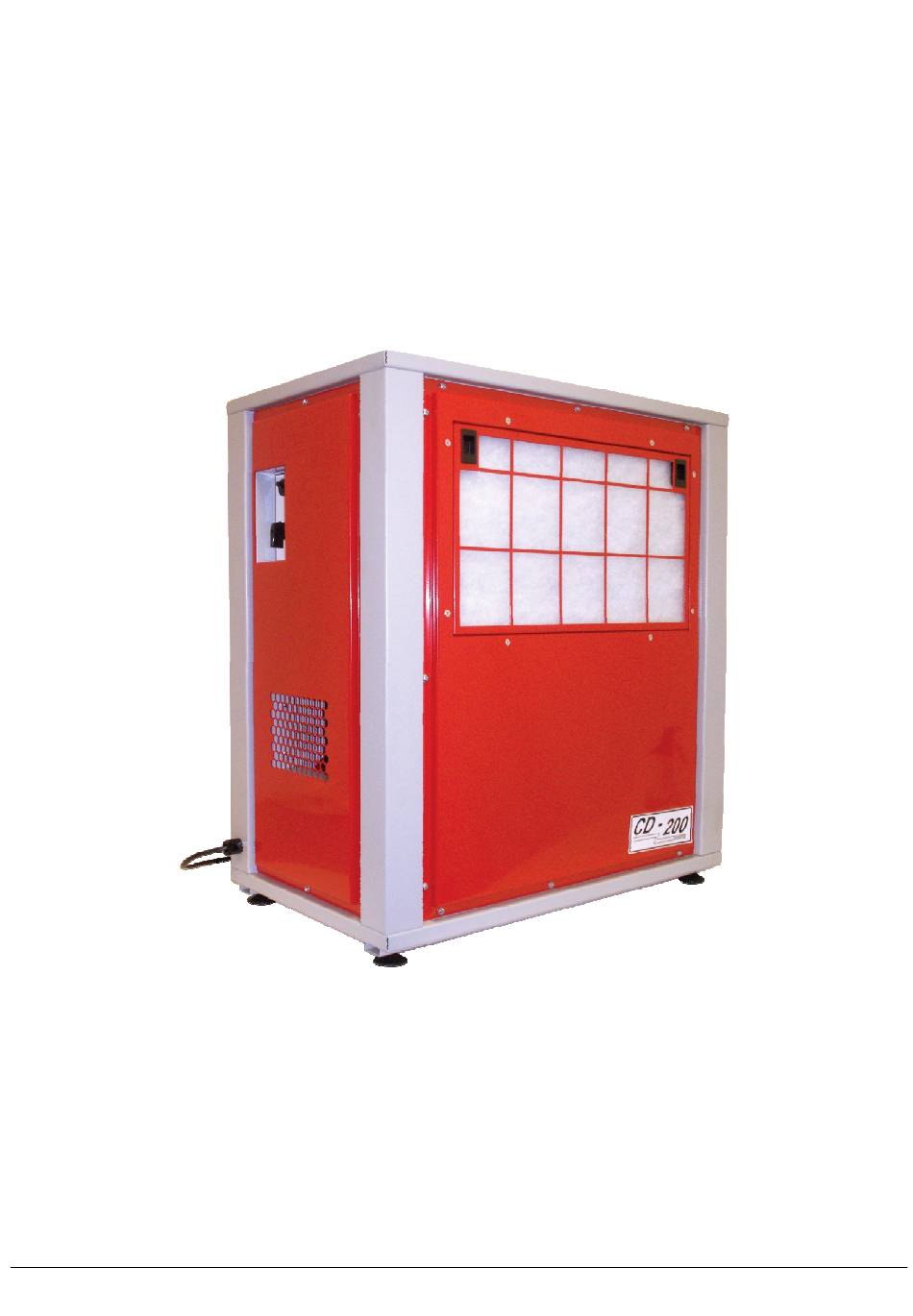

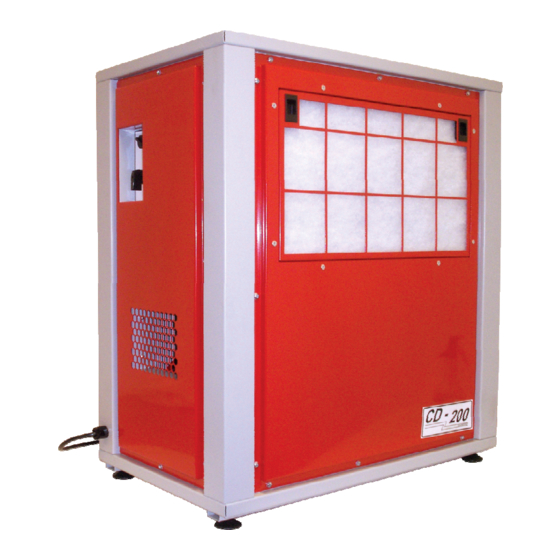

- Page 1 Drawing No. :- TPC364 Issue :- 7 Date :- 10/12/13 EBAC MODEL CD200 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL Ebac Industrial Products, Inc. 700 Thimble Shoals Blvd, Suite 109 Newport News, VA. 23606-2575 Tel: (757) 873 6800 Fax: (757) 873 3632 Website www.ebacusa.com...
-
Page 2: Package Contents
Date :- 10/12/13 UNIT UNIT UNIT UNIT PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS Item Description Quantity 10182GR-US Dehumidifier 3086144 Quick release hose coupling 3944110 PVC Tube – 3/8” I/D 3035832 Free issue socket TPC364 Manual CD200 OWNERS MANUAL... - Page 3 Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area. The CD200 dehumidifier is a rugged, reliable drying unit designed to operate effectively over a broad range of temperature and humidity conditions. The CD200 dehumidifier uses an adjustable humidistat to enable you to select the level of dryness.
-
Page 4: Specifications
OWER OWER UPPLY UPPLY UPPLY UPPLY F F F F : : : : Powder-coated Epoxy INISH INISH INISH INISH R R R R T T T T : : : : R407c EFRIGERANT EFRIGERANT EFRIGERANT EFRIGERANT CD200 OWNERS MANUAL... -
Page 5: Installation
This unit should be connected to a single outlet circuit fused spur with a 20A rating. Selecting the correct fan speed – The CD200 has a low fan speed and a high fan speed and the required speed must be chosen before installation. To select the correct fan speed firstly remove the filter cover via the 9off screws, then remove the electrical box cover via the 4off M4 hex head bolts. - Page 6 :- 10/12/13 OPERATION The following procedures should be followed to test the CD200 for correct operation: 1) After unpacking, examine all external features to confirm damage-free shipment. Report all defects and damage at once. Connect the power cable to a grounded power source.
- Page 7 :- 10/12/13 External Humidistat Option The CD200 has the option of using an external humidistat remotely mounted within a room, where available. In the control box there is a connector that can be wired to, which will enable the use of an external humidistat.
-
Page 8: Routine Maintenance
Partial frosting accompanied by frosting of the thin capillary tubes, indicates loss of refrigerant gas or low charge. Check all wiring connections. F ANY OF THE PRECEDING PROBLEMS OCCUR CONTACT THE ERVICE ENTER PRIOR TO CONTINUED OPERATION OF THE UNIT TO PREVENT PERMANENT DAMAGE CD200 OWNERS MANUAL... - Page 9 An open circuit indicates that the compressor should be replaced. c. Check that the compressor is not grounded by establishing that a circuit does not exist between the compressor terminals and the shell of the compressor. CD200 OWNERS MANUAL...
-
Page 10: Troubleshooting
2. Ensure that no section of the drain machine 2. Drain pipe too high hose is above the level of the water outlet Ebac Industrial Products, Inc. 700 Thimble Shoals Blvd, Suite 109 Newport News, VA. 23606-2575 Tel: (757) 873 6800 Fax: (757) 873 3632 Website www.ebacusa.com... -
Page 11: Rating Plate Information
: : : : Single HASE HASE HASE HASE 60 Hz H H H H : : : : Z Z Z Z C C C C : : : : 14 A URRENT URRENT URRENT URRENT CD200 OWNERS MANUAL...
