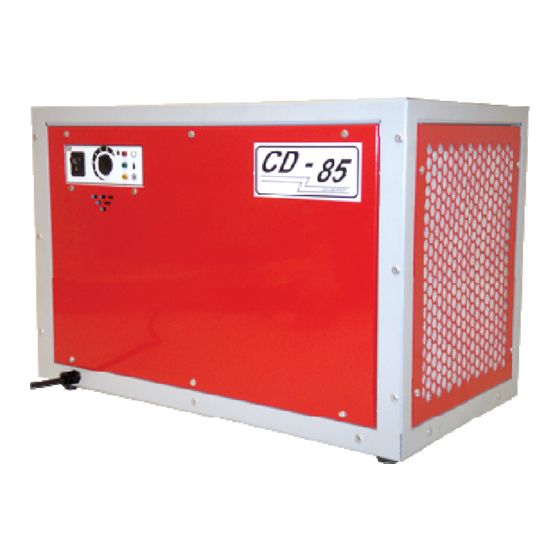

Industrial dehumidifier

Advertisement

Quick Links

INDUSTRIAL DEHUMIDIFIER
OWNER'S MANUAL
E B A C C D - 8 5
I N D U S T R I A L
Pure n Natural Systems | purennatural.com | 1-800-237-9199
CD85
Page 1 of 15
D E H U M I D I F I E R
Drawing : - TPC361
Issue
: - 3
Date
: - 03/10/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD85 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ebac CD85

  • Page 1 Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 CD85 INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL Page 1 of 15 E B A C C D - 8 5 I N D U S T R I A L D E H U M I D I F I E R Pure n Natural Systems | purennatural.com | 1-800-237-9199...
  • Page 2: Package Contents

    Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 CD85 PACKAGE CONTENTS Item Description Quantity 10293GR-US Dehumidifier 3014338 PVC Tube – 12mm I/D 3086101 Jubilee clip TPC361 Manual Page 2 of 15 E B A C C D - 8 5...
  • Page 3 Date : - 03/10/12 INTRODUCTION Designed for a wide range of applications, the CD85 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The CD85 has a number of special features: •...
  • Page 4 : - 03/10/12 COVERS The CD85 covers can be swapped to allow the airflow direction to be changed to better suit the application the unit is to be used for. To change the covers, first remove the 4 off retaining screws and washers from each cover, swap cover positions and replace 4 off retaining screws and washers.
  • Page 5 Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 Evaporator Blank Condenser Grille Cover Cover (Blocks Airflow) (Air out of machine) Condenser Blank Cover (Blocks airflow) Evaporator Grille Cover (Air into Machine) Evaporator Blank Condenser Blank Cover Cover (Blocks Airflow) (Blocks airflow)
  • Page 6: Specifications

    EFRIGERANT "This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The refrigeration system is hermetically sealed. The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac Industrial Products Ltd is as follows R134a – 1300 R407c –...
  • Page 7: Operation

    : - 3 Date : - 03/10/12 OPERATION The following procedures should be followed to test the CD85 for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded 15 Amp electrical outlet.
  • Page 8: Routine Maintenance

    Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 ROUTINE MAINTENANCE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE MAINTNENANCE To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows: Clean the surface of the evaporator and condenser coils by blowing the dirt out from behind the fins with compressed air.
  • Page 9 Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
  • Page 10: Troubleshooting

    Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from Unit inoperative 1. No power to unit power supply panel 1. Replace the fan motor 1. Fan motor burnt out 2.
  • Page 11: Spare Parts List

    Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 CS 60 SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Defrost Timer 1619506 Control Knob 2018644 Capillary Tube 3014254 2 x 24” Solenoid Valve 3020814 Filter Dryer 3020909 Compressor 3022198 Solenoid Coil 3030421...
  • Page 12: Limited Warranty

    Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit.
  • Page 13 Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 Page 13 of 15 E B A C C D - 8 5 I N D U S T R I A L D E H U M I D I F I E R Pure n Natural Systems | purennatural.com | 1-800-237-9199...
  • Page 14 Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 Page 14 of 15 E B A C C D - 8 5 I N D U S T R I A L D E H U M I D I F I E R Pure n Natural Systems | purennatural.com | 1-800-237-9199...
  • Page 15 Drawing : - TPC361 Issue : - 3 Date : - 03/10/12 Distributed by: Pure n Natural Systems, Inc. PO Box 1137 Streamwood, IL 60107 purennatural.com | 1-800-237-9199 Page 15 of 15 E B A C C D - 8 5 I N D U S T R I A L D E H U M I D I F I E R Pure n Natural Systems | purennatural.com | 1-800-237-9199...
