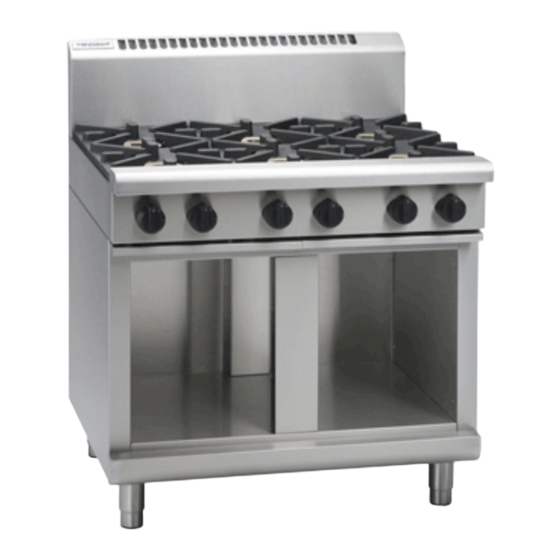

Waldorf RN8200G Installation And Operation Manual
800 series gas cooktops
Hide thumbs
Also See for RN8200G:
- Installation and operation manual (32 pages) ,
- Installation and operation manual (31 pages) ,
- Installation and operation manual (32 pages)
Table of Contents
Related Manuals for Waldorf RN8200G
Summary of Contents for Waldorf RN8200G
-
Page 1: Gas Cooktops
I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Cooktops Series RNL8200G RN8200G RNL8400G RN8400G RNL8600G RN8600G RNL8800G... - Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...
-
Page 3: Table Of Contents
Contents Waldorf Gas Cooktops RN(L)8200G Gas Cooktop 300 mm wide. RN(L)8400G Gas Cooktop 600 mm wide. RN(L)8600G Gas Cooktop 900 mm wide. RN(L)8800G Gas Cooktop 1200 mm wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS COOKTOPS, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf Gas Cooktops, there are two important things you can do. -
Page 5: Specification
Griddle options with 4 models of base unit available (except RN8200G model). Fitted with either 'Individual Flame Failure' (F) or 'Pilot and Flame Failure' (PF) option for each open burner. Griddles are fitted with... -
Page 6: Gas Supply Requirements
(Refer to the ‘Dimensions’ section). With the exception of the RN8200G-B and RN8203G-B models which are 100 mm from the right hand side, 32 mm from the rear and 55 mm from the floor. -
Page 7: Dimensions
Dimensions Bench Models RN(L)8200G-B = Rating Plate Location for this option. RN(L)8400G-B RN(L)8600G-B RN(L)8800G-B Refer to Page 9 for Cooktop options... - Page 8 Dimensions Cabinet Base Models RN8200G models - not available in Cabinet Base option. = Rating Plate Location for RN(L)8400G-CB this option. RN(L)8600G-CB RN(L)8800G-CB Refer to Page 9 for Cooktop options...
- Page 9 Dimensions Leg Stand Models RN8200G models - not available in Leg Stand Base option. = Rating Plate Location for RN(L)8400G-LS this option. RN(L)8600G-LS RN(L)8800G-LS Refer to Page 9 for Cooktop options...
- Page 10 Dimensions Refrigerated Base Models RN8200G and RN8400G models - not available in Refrigerated Base option. = Rating Plate Location for this option. RN(L)8600G-RB RN(L)8800G-RB Refer to Page 9 for Cooktop options...
- Page 11 RN(L)8809G RN(L)8609G NOTE: • RN8200G models are only available in Bench Model (-B) option. • RN8400G models are available in Bench Model (-B), Cabinet Base (-CB), or Leg Stand (-LS) model options. • RN8600G and RN8800G are available in Bench Model (-B), Cabinet Base (-CB), Leg Stand (-LS), or Refrigeration Base (-RB) model options.
-
Page 12: Installation
Waldorf Cooktops are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 13: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right Hand Side 250 mm (*) 0 mm Rear; - 50 mm 0 mm Standard Models 100 mm 0.mm Low Back Models Side clearances can be 50 mm when the adjacent surface is at least 100 mm below the cooking... - Page 14 Installation Rear Adjustable Feet, fitting:- Secure the rear of the base tray to the rear cooktop legs by screwing the two adjustable feet supplied, into the base of the rear cooktop legs. Secure each adjustable foot, hand tight. Cooktop Rear Rollers, fitting:- Fit the rear leg securing bolts up Leg Mount through the centre of the rear leg...
-
Page 15: Fitting Adjustable Feet / Rear Rollers To Cabinet And Refrigeration Bases
Installation Fitting Adjustable Feet / Rear Rollers to Cabinet and Refrigeration Bases. Rear Adjustable Feet, fitting:- Raise the appliance from the floor by approximately 75 mm using suitable lifting equipment (i.e. Palletiser / Forklift) to allow the rear rollers to be removed. Cabinet / Unscrew and remove the securing bolt that Refrigeration... -
Page 16: Gas Connection
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. Waldorf Cooktops do not require electrical connection, as they function totally on the gas supply. It is essential that the gas supply is correct for the Cooktop to be installed and that adequate supply pressure and volume are available. -
Page 17: Commissioning
Installation Commissioning Before leaving the new installation; a. Check the following functions in accordance with the operating instructions specified in the ‘Operation’ section of this manual. • Lighting the Griddle. • Light the Open Burners. (F - Flame Failure Option). •... -
Page 18: Operation
/ operator. Waldorf appliances have been designed to provide simplicity of operation and 100% safety protection. Improper operation is therefore almost impossible, however bad operation practices can reduce the life of the appliance and produce a poor quality product. To use this appliance correctly please read the following sections carefully:- •... -
Page 19: Open Burners
Operation Open Burners NOTE: Only cooking pans from size Ø 150mm to Ø 420mm are suitable fo use on these open burners. Flame Failure Option (F-Models) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off the gas supply to that burner in the event that the burner goes out, so that un-burnt gas is not expelled. - Page 20 Operation Griddle AUTIO N The griddle plate temperature reaches over 300°C in hottest points during normal operation at 'Full Flame' setting. These griddles are fitted with a pilot as a standard option and Flame Failure Protection, which is incorporated by way of a thermo-electric system for each main burner. Flame Failure Protection will shut off the gas supply to that burner in the event that the pilot for that burner goes out, so that un-burnt gas is This is an important safety feature which is slowly becoming law throughout the not expelled.
-
Page 21: Cleaning And Maintenance
Cleaning and Maintenance AUTIO N Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. General Clean the Cooktop regularly. A clean Cooktop looks better, will last longer and will perform better. Carbonised grease on the surface or between the trivets, griddle plates will hinder the transfer of heat from the cooking surface to the food. -
Page 22: Daily Cleaning
Cleaning and Maintenance Daily Cleaning The grease / spill tray(s) should be checked and emptied frequently to prevent overflow and spillage. Remove the spill tray(s) while still warm so that the grease is in a liquid state. Empty any grease from the trays and wash thoroughly in the same manner as any cooking utensil. - Page 23 Cleaning and Maintenance Trivets and Burners Burner Cap a. Remove the trivets from the top of the appliance, taking note that the trivets are manufactured with a lip on one edge, the lip must always be fitted to the outer edge (front and back) of the Cooktop. (Refer to Fig 10 overleaf).
-
Page 24: Periodic Maintenance
Cleaning and Maintenance Notice Lip on NOTE: It is imperative that the trivet supports are correctly Trivet Edge re-fitted to the appliance to ensure that the trivets locate correctly and sit flush and level. NOTE that the trivet support front end, side rail profiles are different at either side and only one of the side rails seat into the cut-out in the Cooktop. -
Page 25: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 26: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure AUTIO N Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. •... - Page 27 Gas Conversion and Specifications Turn on the gas supply at the mains, re-light the burners and check the flame size on the simmer (LOW) position. NOTE: The right hand gas control valve supplies the rear burner and the left hand gas control valve supplies the front burner.
- Page 28 Gas Conversion and Specifications • For the Refrigerated Base Model, the Rating Plate is located inside the right hand front panel and can be viewed through the upper grille. Refer to the ‘Gas Connection’ section and the ‘Dimensions’ section. Pilot Injectors a.
- Page 29 Gas Conversion and Specifications Griddle Pilot Burner a. With the gas supply turned off at the main supply, Gas Control remove the griddle plate section by lifting it Heat Shield straight off the Cooktop. b. Remove the gas control heat shield from around the griddle burner, this is just a push in fit.
-
Page 30: Gas Regulator
Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG Fig 28 NOTE: The regulator supplied is convertible between Natural Gas and LP Gas, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted. -
Page 31: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Non CE Only (Australia / New Zealand): Natural. Gas LP Gas (Propane) Main Burner Injectors Ø 2.45mm Ø 1.50mm Open Burner Pilot Burner ('PF' Models only) 0.30 0.20 Main Burner Ø 2.10mm Ø 1.30mm Griddle Pilot Burner 0.35... -
Page 32: Replacement Parts
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). -
Page 33: Replacement Parts List
Replacement Parts List General 227015 Pot Stand / Trivet. 228881 Spill Tray 300 mm (RN8200G Series). 228882 Spill Tray 600 mm (RN8400G / RN8800G Series). 228883 Spill Tray 450 mm (RN8600G Series). 227855 Adjustable Leg (84 mm - Bench Models).
