Summary of Contents for Phoenix Gold iAmp

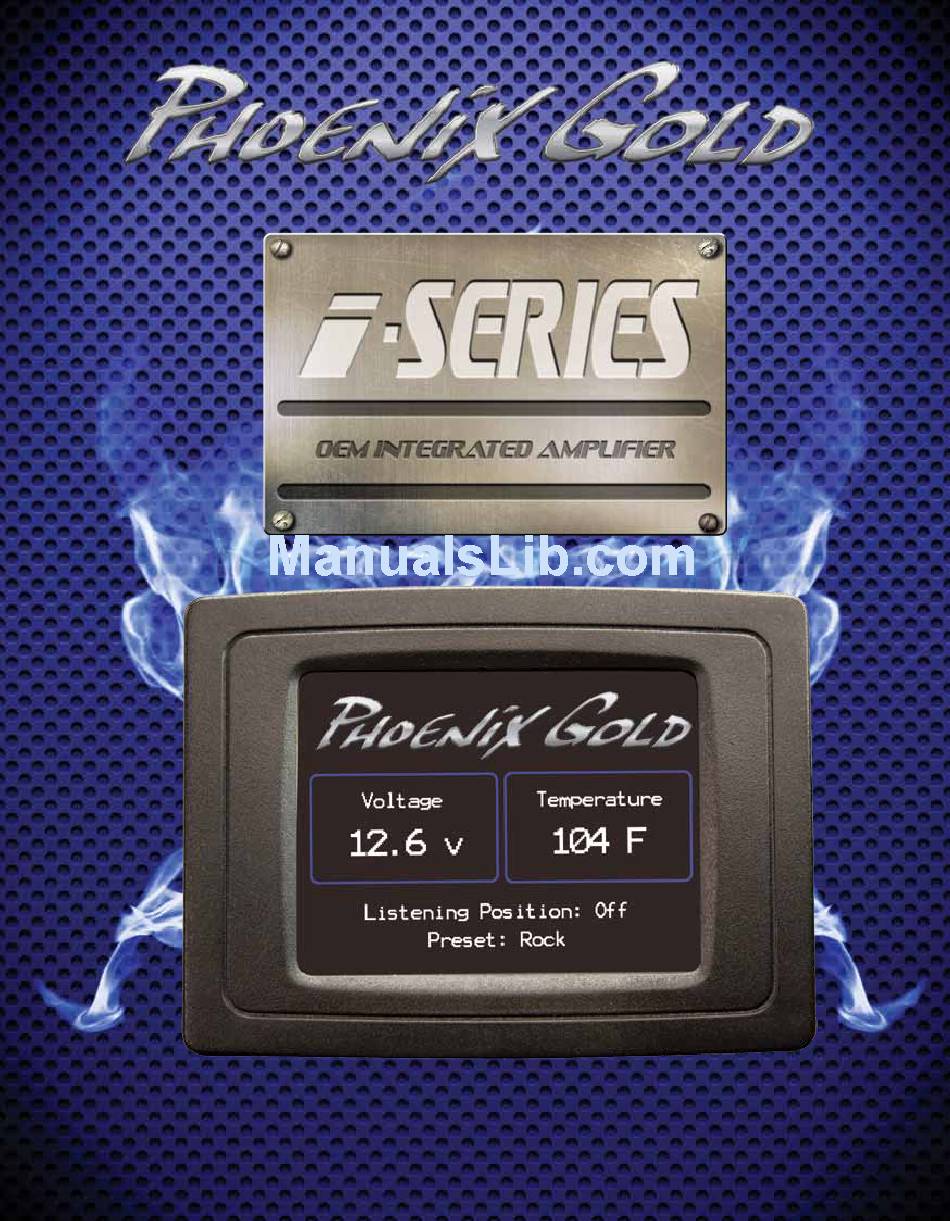

- Page 1 Phoenix Gold iSeries USER MANUAL www.PHOENIXGOLD.com © 2010 Phoenix Gold • www.phoenixgold.com...
-
Page 2: Table Of Contents
Phoenix Gold iSeries Table of Contents Section Pages Overview Touch Screen LCD Controller 1. Home Screen 2. Subwoofer Level Screen 3. Factory EQ Preset Screen 4. User EQ Preset Screen 5. Listening Position Screen 6. Tools Menu PC Software 1. Connecting the PAC-UP to the Amp/PC 2. -
Page 3: Overview
The PC Software allows the user to set certain features of the iAMP to their personal preference. For Installation please refer to the installation manual which is also included in the iAMP kit. -
Page 4: Subwoofer Level Screen
Phoenix Gold iSeries Touchscreen LCD Controller (Cont.) Subwoofer Level Screen This screen allows adjustment of the subwoofer volume as well as access to the Tools menu (please see page 6 for detailed instructions on the tools menu). To access the subwoofer level screen press anywhere on the home screen. -
Page 5: User Eq Preset Screen
This screen allows selection of 6 user preset EQ curves. These can be adjusted and stored with the iAMP PC software as described on page 9. All 6 user presets are set to flat until they are adjusted with the PC software. -
Page 6: Tools Menu
Phoenix Gold iSeries Touchscreen LCD Controller (Cont.) Tools Menu The tools menu is used to calibrate the screen and reset the amp in the event it does not come on or pass audio. To access the tools menu follow these steps: 1. - Page 7 Phoenix Gold iSeries 4. Once the calibration screen comes up follow the on-screen prompts to calibrate the screen properly. www.PHOENIXGOLD.com...
-
Page 8: Pc Software
Phoenix Gold iSeries PC Software To download the iAMP PC Software please visit www.phoenixgold.com/iamppc. Please follow the instructions included in the download to install the software on your PC. Once Installed on your PC you can use the software to do the following: 1. -
Page 9: Setting And Saving The Eq Presets
The text displays located above and below the Phoenix Gold/PAC logo will display information such as: - The revision number of the PC interface. - The revision number of the iAMP. - Which factory system the iAMP is configured for. - Temperature reading. - Voltage reading. www.PHOENIXGOLD.com... -
Page 10: Saving Your Settings
Now that you have made all of the custom settings it is time to save them to your PC. Once saved these files can be re-loaded onto the iAMp at any time. This will allow you to save as many preset files as you like, possibly for different driver preferences. -
Page 11: Troubleshooting
If you are unable to resolve your issue please contact your nearest authorized Phoenix Gold dealer for assistance. You can locate your nearest dealer via our dealer locator at http://www.phoenixgold.com/buy.aspx. www.PHOENIXGOLD.com... -
Page 12: Warranty
LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of three (3) years from the original date of purchase. This warranty is not transferable and applies only to the original pur- chaser from an authorized Phoenix Gold dealer in the United States of America only.
