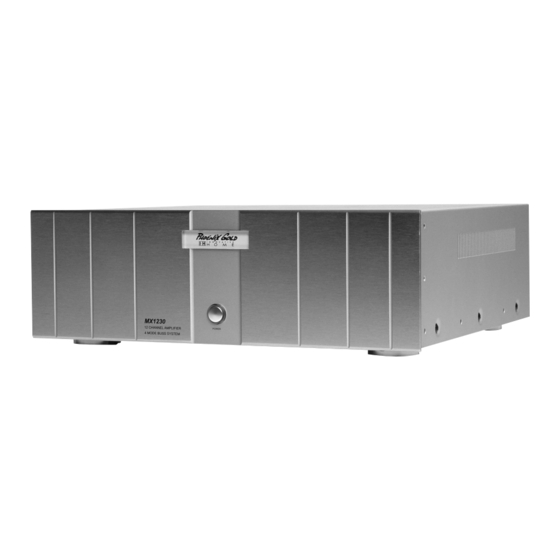

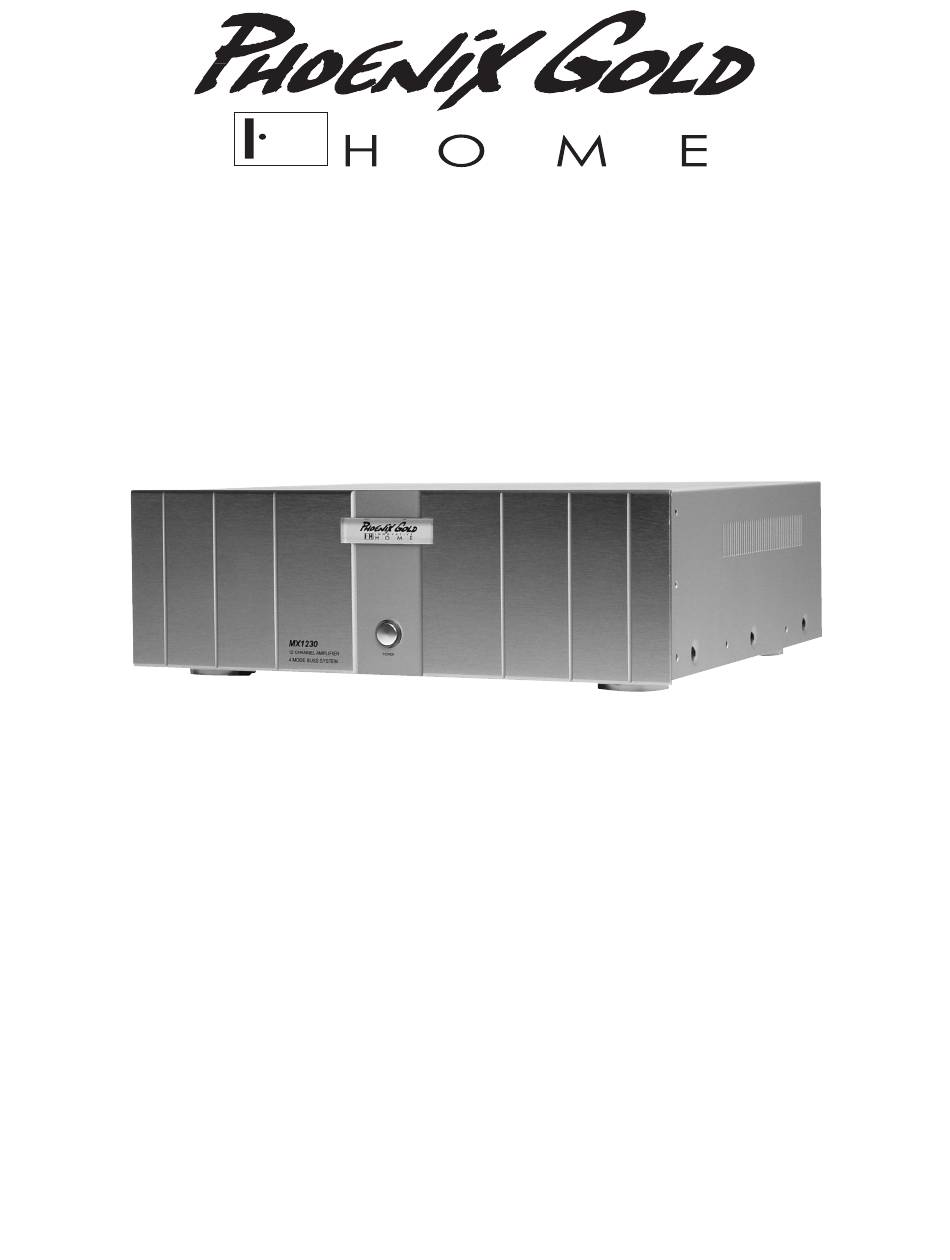

- Page 1 V A T MX1230 User Manual Twelve Channel Bridgeable Amplifier with 4 Mode Buss System Phoenix Gold International, Inc. • 9300 North Decatur Street • Portland, Oregon 97203 Tel: 503.286.9300 Fax: 503.978.3302...
-
Page 2: Safety Information
AC Mains Fuse not operate normally, or has been dropped. MX1230 115-117VAC - 10A 250V Slo-Blo WARNING: To reduce the risk of fire or electric shock, do not MX1230 230-240VAC - 5A 250V Slo-Blo expose this apparatus to rain or moisture. - Page 3 Twelve Channel Bridgeable Amplifier Congratulations on your purchase of the Innovative Home MX1230. Please take a few moments to read this entire manual, and be sure to retain this document for future reference. Please read and observe all safety instructions detailed on page two (2).
- Page 4 There are a total of 14 RCA inputs and 2 RCA outputs on the to the other channels. At the top of the rear panel, there are 12 back panel of the MX1230. There are 12 independent single black knobs which corre-...
- Page 5 Bridging channels combines two channels to create one more Each channel has a pair of multi-way binding post. These are powerful channel. The MX1230 has twelve channels rated at 30 the red and black screw posts at the lower rear of the amplifier.
- Page 6 With the MX1230 there is no problem. Simply provide a stereo input to the Audio Buss input on the rear of the MX1230, select Any unused pair of channels can be used to carry 2 Channel a channel from the 12 available, and set the Buss Switch for that information from the processor to another zone.
-
Page 7: Specifications
Specifications Power Bandwidth 20Hz-20kHz: 30W per Channel into 8 ohm loads with less than 0.2% THD+N 50W per Channel into 4 ohm loads with less than 0.2% THD+N 100W, 2 Channels bridged into 8 ohms with less than 0.2% THD+N 25W per CH., all CH. -
Page 8: Limited Warranty
Phoenix Gold, or damage that is attributable to Acts of God. It does not cover costs of transportation to Phoenix Gold or damage in transit.
