Removing the Media-Card Reader

WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 9. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 11. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. See "Removing the Computer Cover" on page 15.
2 Remove the front bezel. See "Removing the Front Bezel" on page 21.
3 Remove the top cover. See "Removing the Top Cover" on page 47.

Procedure

1 Remove the screws that secure the media-card reader to the front panel. The
screws are located below the media-card reader.
2 Disconnect the media-card reader cable from the media-card reader.
3 Slide and lift the media-card reader to remove it from the top panel.

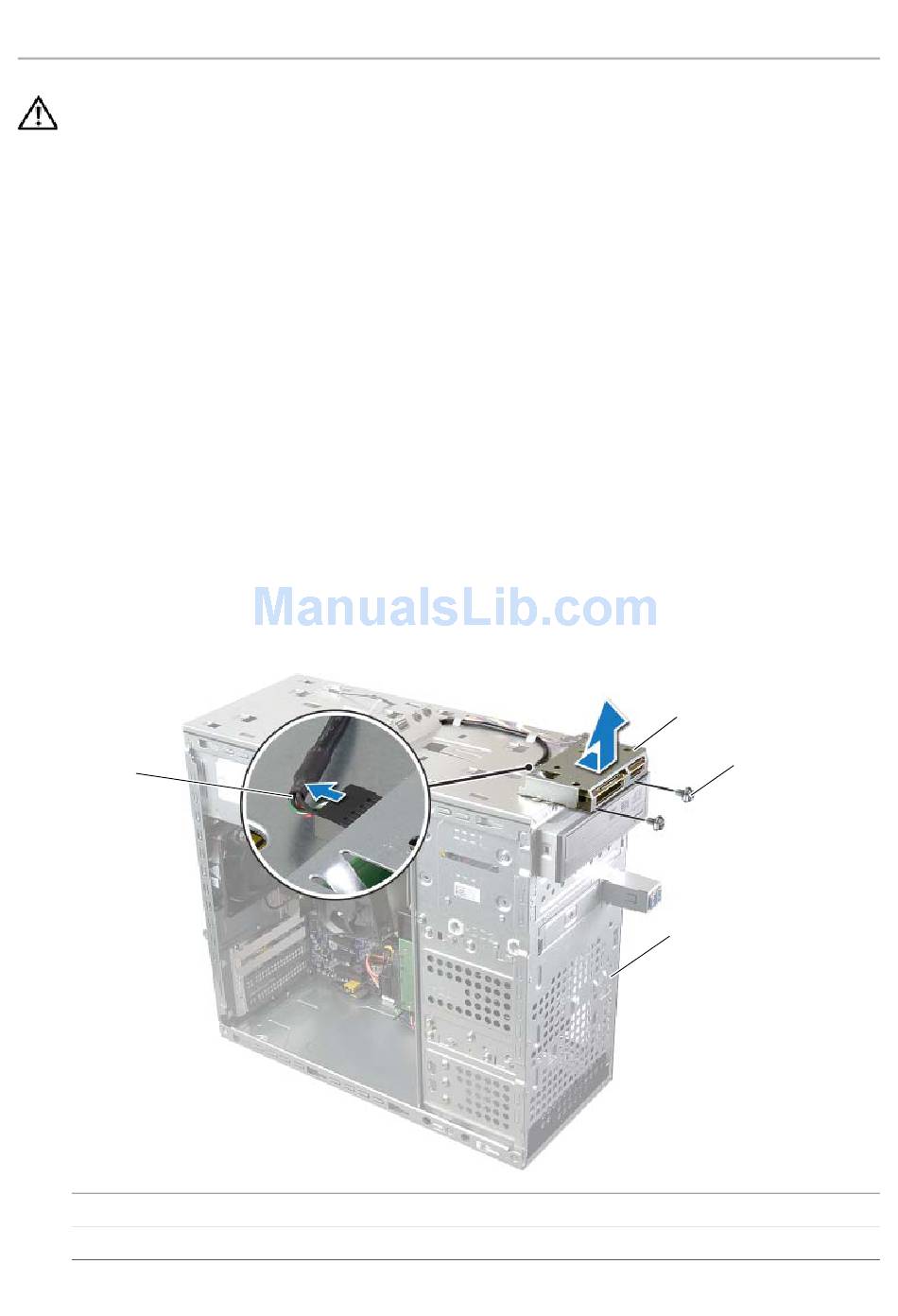

1
1 media-card reader cable
3 screws (2)
2 media-card reader
4 front panel
Removing the Media-Card Reader
