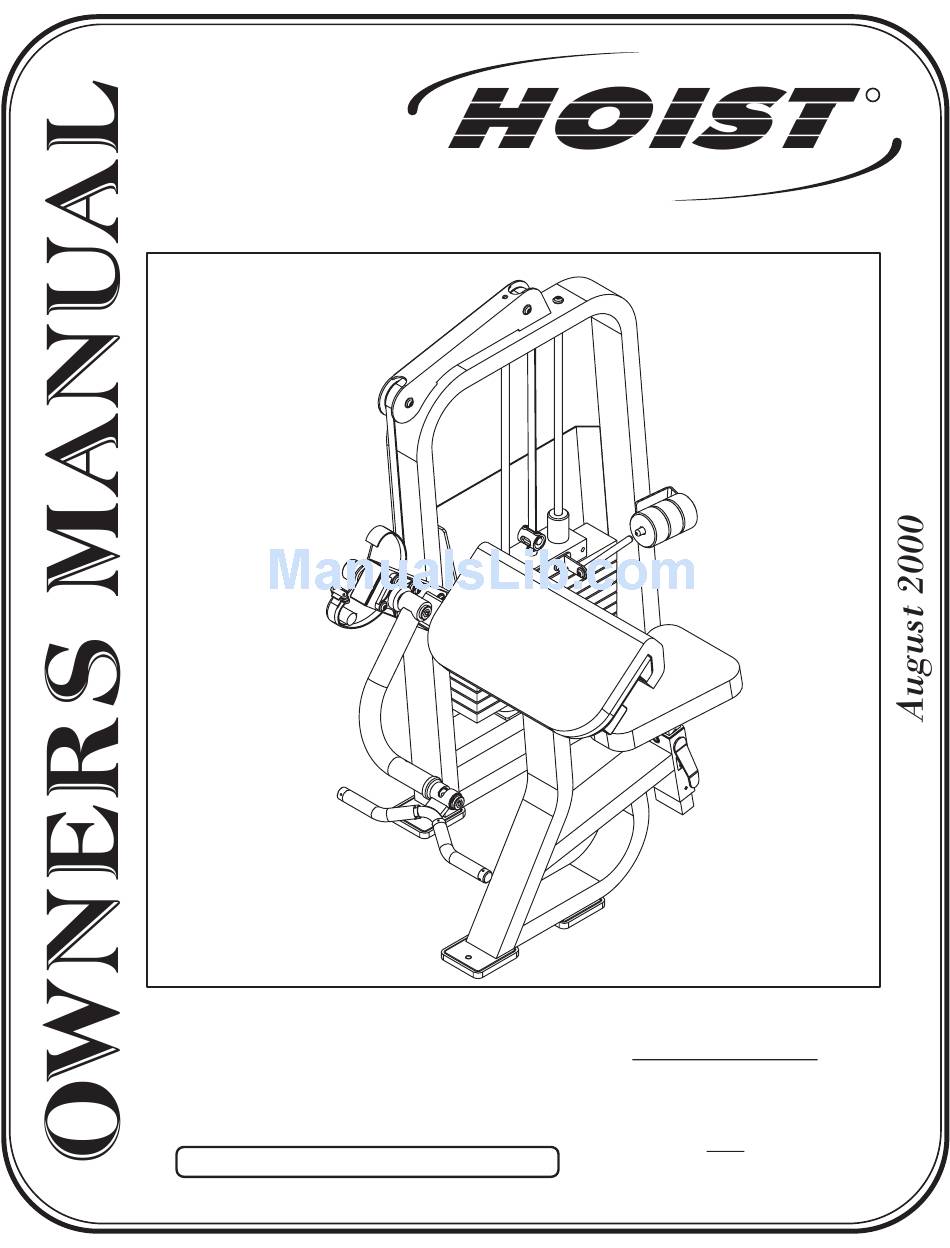

  • Page 1 FITNESS SYSTEMS CL-2103 Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service (800) 548-5438 (619) 578-7676 RECORD SERIAL NUMBER HERE (619) 578-9558...

  • Page 2: Table Of Contents

    A S S E M B LY I N S T R U C T I O N S CONTENTS INSTRUCTIONS (Step 1) ............. FRAME ASSEMBLY (Step 2) ............PARTS LISTING ................HARDWARE LISTING ..............BOLT SIZING CHART ..............WASHER SIZING CHART ............WEIGHT RATIOS .................

  • Page 3: Tools Required

    A S S E M B LY I N S T R U C T I O N S Step 1 I N S T R U C T I O N S Before beginning assembly please take the time to read the instructions thoroughly.
  • Page 4 A S S E M B LY I N S T R U C T I O N S Page - 3 2103 Assembly FITNESS SYSTEMS...
  • Page 5 A S S E M B LY I N S T R U C T I O N S Step 2 F R A M E A S S E M B L Y FACTORY INSTALLATION INSTRUCTION ONLY 1. ALL THREADED HOLES SHOULD BE TAPPED, EXCEPT INSERTS.
  • Page 6 A S S E M B LY I N S T R U C T I O N S Step 2a F R A M E A S S E M B L Y In this step attach the Weight Cage to the Seated Frame. Hand Tighten bolts only, they will be tightened later.
  • Page 7 A S S E M B LY I N S T R U C T I O N S All inserts are factory installed, non-removable All inserts are factory installed, non-removable (Inserts AM have 4 on both sides of mount) (Inserts AM have 4 on both sides of mount) For clarity For clarity...
  • Page 8 A S S E M B LY I N S T R U C T I O N S Step 2b F R A M E A S S E M B L Y In this step, start by sliding one 1 ¼” dia. x 3/8” Aluminum Ring on each side of the Handle Assembly.
  • Page 9 A S S E M B LY I N S T R U C T I O N S 2103 Assembly Page - 8 FITNESS SYSTEMS...
  • Page 10 A S S E M B LY I N S T R U C T I O N S Step 2c F R A M E A S S E M B L Y In this step start by pressing two Guide Rod Bushings into the Weight Cage. Take the two 3”...
  • Page 11 A S S E M B LY I N S T R U C T I O N S 2103 Assembly Page - 10 FITNESS SYSTEMS...
  • Page 12 A S S E M B LY I N S T R U C T I O N S Step 2d F R A M E A S S E M B L Y In this step start by attaching the Belt Assembly to the Weight Assembly(prior to attaching the Cam Belt).

  • Page 13: Instructions (Step 1)

    A S S E M B LY I N S T R U C T I O N S Roller Bracket Roller Bracket For assembly For assembly instructions see page 19-20 instructions see page 19-20 For Assembly For Assembly instructions see page 17-18 instructions see page 17-18 2103 Assembly Page - 12...
  • Page 14 A S S E M B LY I N S T R U C T I O N S Step 2e F R A M E A S S E M B L Y Mount the pad to the Seated Assembly. Next, snap (AK) into the Seated Frame and snap (AJ) into the Weight Cage.
  • Page 15 A S S E M B LY I N S T R U C T I O N S 2103 Assembly Page - 14 FITNESS SYSTEMS...
  • Page 16 A S S E M B LY I N S T R U C T I O N S Step 2g F R A M E A S S E M B L Y Attach the 30” x 28.4” Standard Shield to the Weight Cage. Wrench tighten bolts...
  • Page 17 A S S E M B LY I N S T R U C T I O N S 2103 Assembly Page - 16 FITNESS SYSTEMS...
  • Page 18 A S S E M B LY I N S T R U C T I O N S Step 2c F R A M E A S S E M B L Y Start by attaching the Cam Stopper to the Cam Assembly on the first hole..
  • Page 19 A S S E M B LY I N S T R U C T I O N S NOTE: 1. BELT SMOOTH SIDE DOWN ALWAYS FOR TWO TOP PULLEYS AND CAM. SMOOTH SIDE TO WRAP AROUND BELT RETAINER SHAFT 2.
  • Page 20 A S S E M B LY I N S T R U C T I O N S Step 2h F R A M E A S S E M B L Y Slide the Cam Belt into the top slot of 1 5/8” Dia. x 2 1/16” Lg. Dom. (Fig.
  • Page 21 A S S E M B LY I N S T R U C T I O N S Figure 1 Figure 1 Figure 2 Figure 2 Figure 3 Figure 3 2103 Assembly Page - 20 FITNESS SYSTEMS...
  • Page 22 A S S E M B LY I N S T R U C T I O N S Step 2i F R A M E A S S E M B L Y Slide the Plate Selector Stem up into the 8.6 LBS Aluminum Top Plate and secure with a 7/16”...
  • Page 23 A S S E M B LY I N S T R U C T I O N S 2103 Assembly Page - 22 FITNESS SYSTEMS...

  • Page 24: Frame Assembly (Step 2)

    A S S E M B LY C A T A L O G P A R T S L I S T I N G Key # Qty. Part Number Description 26--STD-SX600 Frame Assembly 26-STD-SX601 Seat Assembly 26-STD-SX606 Arm Extension 26-STD-SX607 Arm Assembly Detail 26-STD-SX608...

  • Page 25: Hardware Listing

    A S S E M B LY C A T A L O G H A R D W A R E L I S T I N G Key # Qty. Part Number Description 11-BTN-12112WZ 1/2-13" x 1 1/2" Button Head Screw 13-FLT-12SAEWZ 1/2"...
  • Page 26 A S S E M B LY C A T A L O G H A R D W A R E L I S T I N G Key # Qty. Part Number Description 26-STD-SM240 3/8" Flat Head Cap, 1 3/8" x 5/16 THK 14-OIL-1F 1 3/8"...

  • Page 27: Bolt Sizing Chart

    A S S E M B LY C A T A L O G B O L T S I Z I N G C H A R T 2103 Assembly Page - 26 FITNESS SYSTEMS...

  • Page 28: Washer Sizing Chart

    A S S E M B LY C A T A L O G W A S H E R S I Z I N G C H A R T SMALL, SAE, 26mm LARGE, USS, 25mm LARGE, USS, 34mm Page - 27 2103 Assembly FITNESS SYSTEMS...

  • Page 29: Weight Ratios

    O W N E R S W E I G H T R A T I O S The above chart shows the actual weight you are lifting when the ratios are applied. To find the actual weight you are lifting you would come down from the ratio being used and across from the number of the weight plate you have pinned.
  • Page 30 O W N E R S Page - 29 2103 Assembly FITNESS SYSTEMS...

  • Page 31: Weight Training Tips

    O W N E R S W E I G H T T R A I N I N G T I P S Always consult your physician before starting any exercise program. Hoist equipment is designed to maximize your time spent working out.
  • Page 32 O W N E R S Page - 31 2103 Assembly...
  • Page 33 O W N E R S 2103 Assembly Page - 32 FITNESS SYSTEMS...
  • Page 34 O W N E R S 2103 Assembly Page - 33 FITNESS SYSTEMS...

  • Page 35: Decal Placements

    O W N E R S D E C A L P L AC E M E N T S Decal Descriptions 1 - 021-0004026 2 - 021-0003008 3 - 021-0004029 4 - 021-0013063 5 - 021-0003011 6 - 021-0003006 7 - 021-0012004 8 - 021-0004022 9 - 021-0003090...
  • Page 36 O W N E R S D E C A L R E F E R E N C E This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. ROUTINE MAINTENANCE Inspect;...
  • Page 37 O W N E R S D E C A L R E F E R E N C E This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. 021-0013063 2103 Assembly Page - 36...
  • Page 38 O W N E R S D E C A L R E F E R E N C E This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. 021-0012004 021-0004029 SERIAL # DECAL: Always refer to the...
  • Page 39 O W N E R S D E C A L R E F E R E N C E This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. 021-0004026 PATENT PENDING...

  • Page 40: General Maintenance Information

    O W N E R S HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Locks, Swivels, Weight Stack Pins: Check all pieces for signs of visible wear or damage. Check springs in snap hooks and pull-pins for proper tension and alignment.
  • Page 41 O W N E R S O W N E R S Continued: GENERAL MAINTENANCE INFORMATION Belt and Cable Tension: F Referring to the Assembly/Owners Manual, when belts or cables are used check all bolts and attachments to be sure they are properly attached.
  • Page 42 O W N E R S O W N E R S Page - 41 2103 Assembly FITNESS SYSTEMS...

  • Page 43: Limited Lifetime Warranty

    Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
