Summary of Contents for Elite Screens Home100IWH2-A

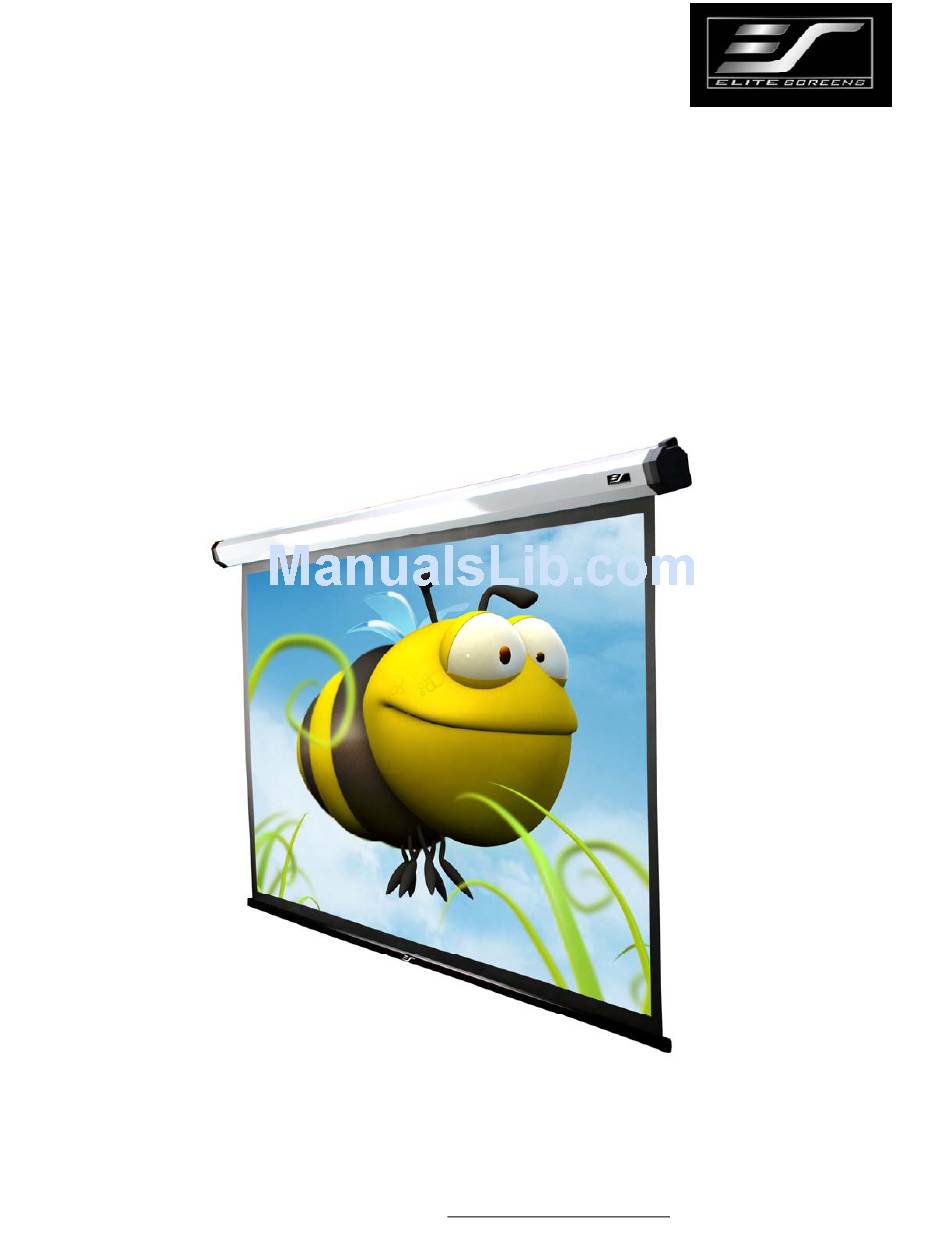

- Page 1 Ez-Electric Screen Elite Home series Ver.1.5 Users Guide www.elitescreens.com / eliteinfo@elitescreens.com...
- Page 2 Accessory for Home series ①IR Green +12V ④12V trigger ⑦ Bubble level www.elitescreens.com ③Wall box ②RF Eye receiver ⑤ Please always point to the eye receiver when using the IR remote / eliteinfo@elitescreens.com ⑥Battery...
- Page 3 Important Safety and Warning Precautions 1. Be sure to read this manual before use and follow the procedures specified: ☆ Please retain this manual for future reference. ☆ To avoid any damage, do not use any accessories not recommended by the manufacturer. ☆...
- Page 4 Warning Individual modifications to this product are prohibited and will void the user’s warranty. Please contact the Service Department for any questions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 5 12V Trigger: 12V trigger for your new Elite Home2 -----allows your screen to synchronize its drop and rise with the projectors power cycle. The screen drops when the projector powers up and retracts when the projector powers down. Video Projection Interface 2.
- Page 6 Please read this guide prior to installation. ●Make sure the current rating is equal to that of the appliance rating when an extension cord is used. ●Do not use any accessories not provided by the manufacturer with this screen. We will not be responsible for any risks of fire, electric shock, or injuries resulting from the misuse of this product with accessories not designed for it.
- Page 7 The IR receiver will be connected from the screen 11.65 mm. in width Although the IR remote requires a direct line of sight with the IR sensor to function, case can be hidden from sight and operated using the RF remote. When depressing the directional buttons you should hear a faint click signifying that the mechanism is working properly.
- Page 8 1. Q: Why does my screen no longer function? A: There are a few possible things you could check: A.) Make sure your wall plug has power and that the screen is properly plugged in. B.) Please check the fuse to y our screen. (Call Tech support for location of fuse) C.) If screen works well with the line switch but not with the remote control, make sure the remote control has good batteries in it.
- Page 9 ● Immediately advise Elite Screens of all damages or problems. Do not return merchandise to Elite Screens. File your claim with the carrier enclosing copies of the bill of lading (signed by the driver) and inspection report as support. Keep all packing materials and boxes with the damaged product.
- Page 10 Two ways to register your warranty with Elite Screens Inc. A. On Line (F aster and Easier) www.elitescreens.com/register.htm B. Fill out & Fax to (562)483-8498, Attn: Customer Service Dept. *Your Name: Address: City/State/Zip: ____ _ ____ *Email Address: ____ _ ____...
- Page 11 www.elitescreens.com / eliteinfo@elitescreens.com...
