3. THE CD PLAYER AT A GLANCE

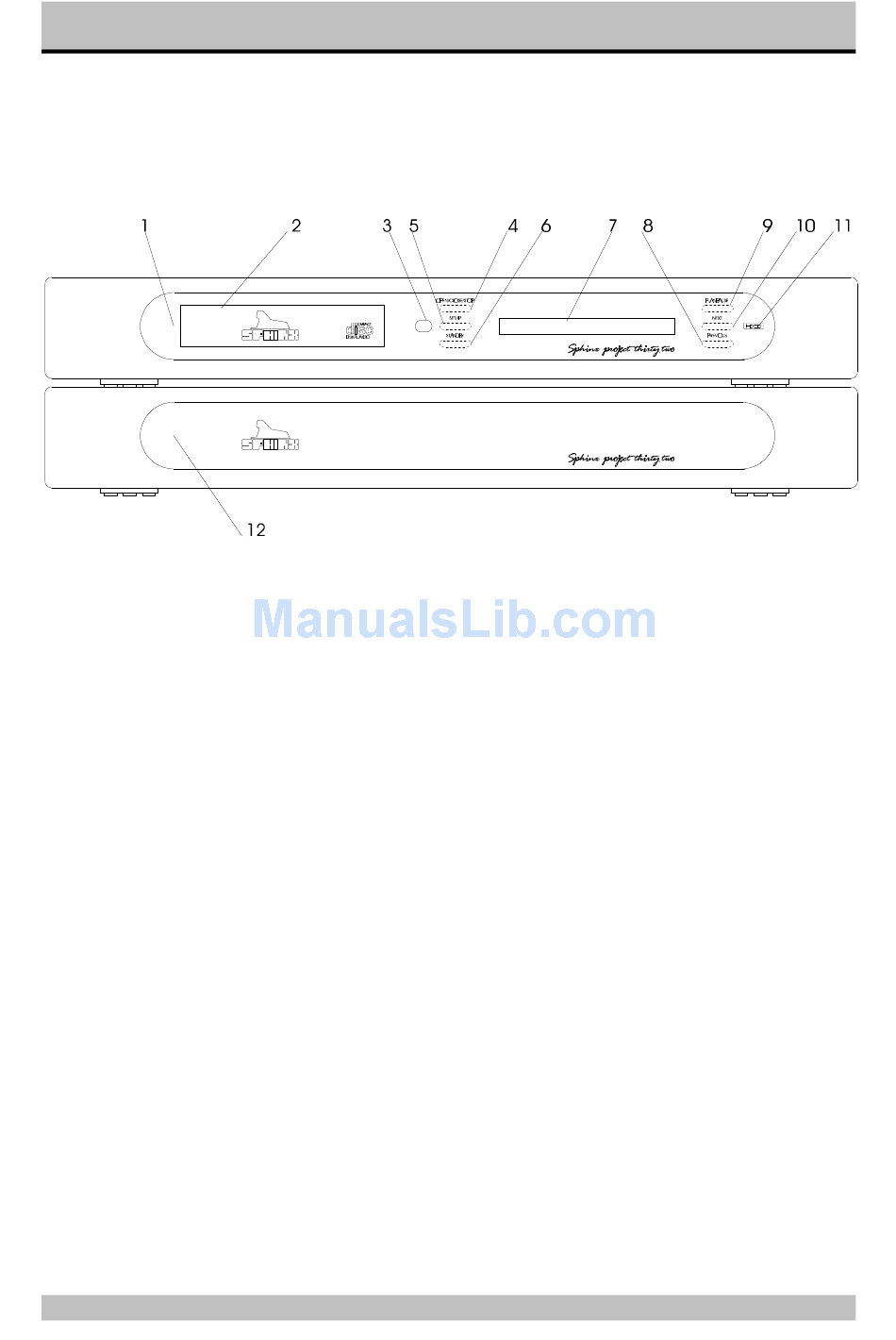

Front panel

1. Cabinet with mechanism including all
electronic circuits
2. CD tray: To be opened with the OPEN button (4).
Place the CD here.
Close with the CLOSE (4) or the PLAY button
(9).
3. Receptor window for the IR signals from the
Remote Control.
4. OPEN/CLOSE/STOP: This button opens the CD
tray, closes the CD tray or stops the CD
playback.
5. SETUP: Depressing this button for more than 2
sec activates the Set-up mode: the display
shows the first parameter to be changed.
By pressing this button you can 'cycle' through
the available parameters.
Pressing the STANDBY button (6) de-activates
the Set-up mode (for more information see
Chapter 6. THE SPECIAL MODES).
6. STANDBY: To switch the CD player on and off.
7. Display: This will show all important data (more
information can be found on page 6).
* ®
HDCD and High Definition Compatible Digital are registered trademarks of Pacific Microsonics Inc.
SPHINX
8. PREV: To select a lower number track.
If you hold the button depressed it will activate a
fast reverse search in the current track.
9. PLAY/PAUSE: To start playback of the track
indicated in the display.
Note: If the CD tray is still open it will close
automatically.
To temporarily interrupt CD playback. The
display will show the "PAUSE" indication.
Pressing this button again will resume playback.
10. NEXT: To select a higher number track.
If you hold the button depressed it will activate a
fast forward search in the current track.
*
11. HDCD : This indication will light when a HDCD
recording is played
12. Power supply: This separate cabinet contains
the complete power supply for the: left channel,
right channel and the digital section.
Project 32
4
