SPHINX Myth 9

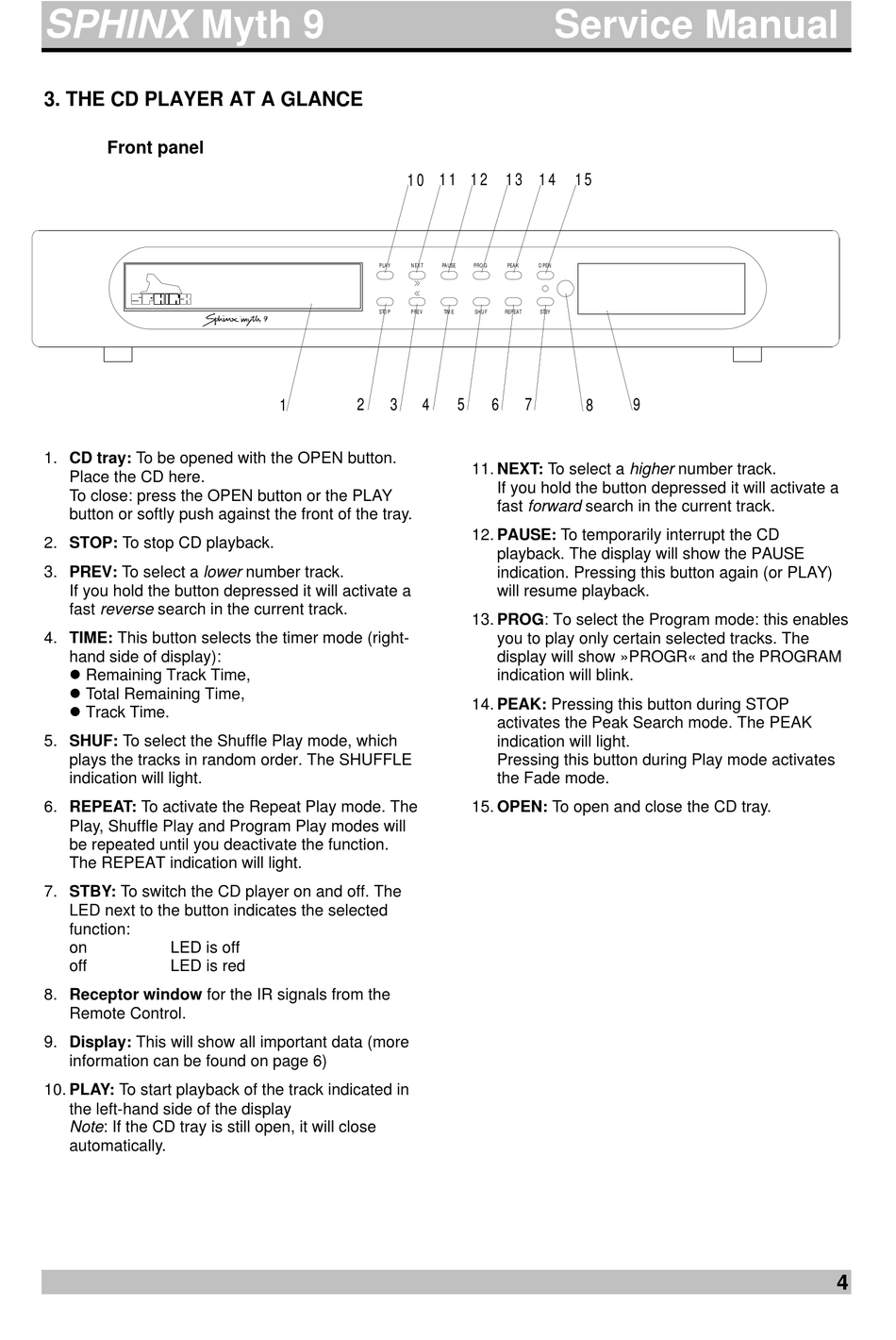

3. THE CD PLAYER AT A GLANCE

Front panel

1. CD tray: To be opened with the OPEN button.
Place the CD here.
To close: press the OPEN button or the PLAY
button or softly push against the front of the tray.
2. STOP: To stop CD playback.
3. PREV: To select a lower number track.
If you hold the button depressed it will activate a
fast reverse search in the current track.
4. TIME: This button selects the timer mode (right-
hand side of display):
l Remaining Track Time,
l Total Remaining Time,
l Track Time.
5. SHUF: To select the Shuffle Play mode, which
plays the tracks in random order. The SHUFFLE
indication will light.
6. REPEAT: To activate the Repeat Play mode. The
Play, Shuffle Play and Program Play modes will
be repeated until you deactivate the function.
The REPEAT indication will light.
7. STBY: To switch the CD player on and off. The
LED next to the button indicates the selected
function:
on LED is off
off LED is red
8. Receptor window for the IR signals from the
Remote Control.
9. Display: This will show all important data (more
information can be found on page 6)
10. PLAY: To start playback of the track indicated in
the left-hand side of the display
Note: If the CD tray is still open, it will close
automatically.
10 11 12 13 14 15
PLAY NEXT PAUSE
STOP PREV TIME
2 3 4
1
Service Manual
PROG PEAK OPEN
SHU F REPEAT STBY
5 6 7
8
11. NEXT: To select a higher number track.
If you hold the button depressed it will activate a
fast forward search in the current track.
12. PAUSE: To temporarily interrupt the CD
playback. The display will show the PAUSE
indication. Pressing this button again (or PLAY)
will resume playback.
13. PROG: To select the Program mode: this enables
you to play only certain selected tracks. The
display will show »PROGR« and the PROGRAM
indication will blink.
14. PEAK: Pressing this button during STOP
activates the Peak Search mode. The PEAK
indication will light.
Pressing this button during Play mode activates
the Fade mode.
15. OPEN: To open and close the CD tray.
9
4
