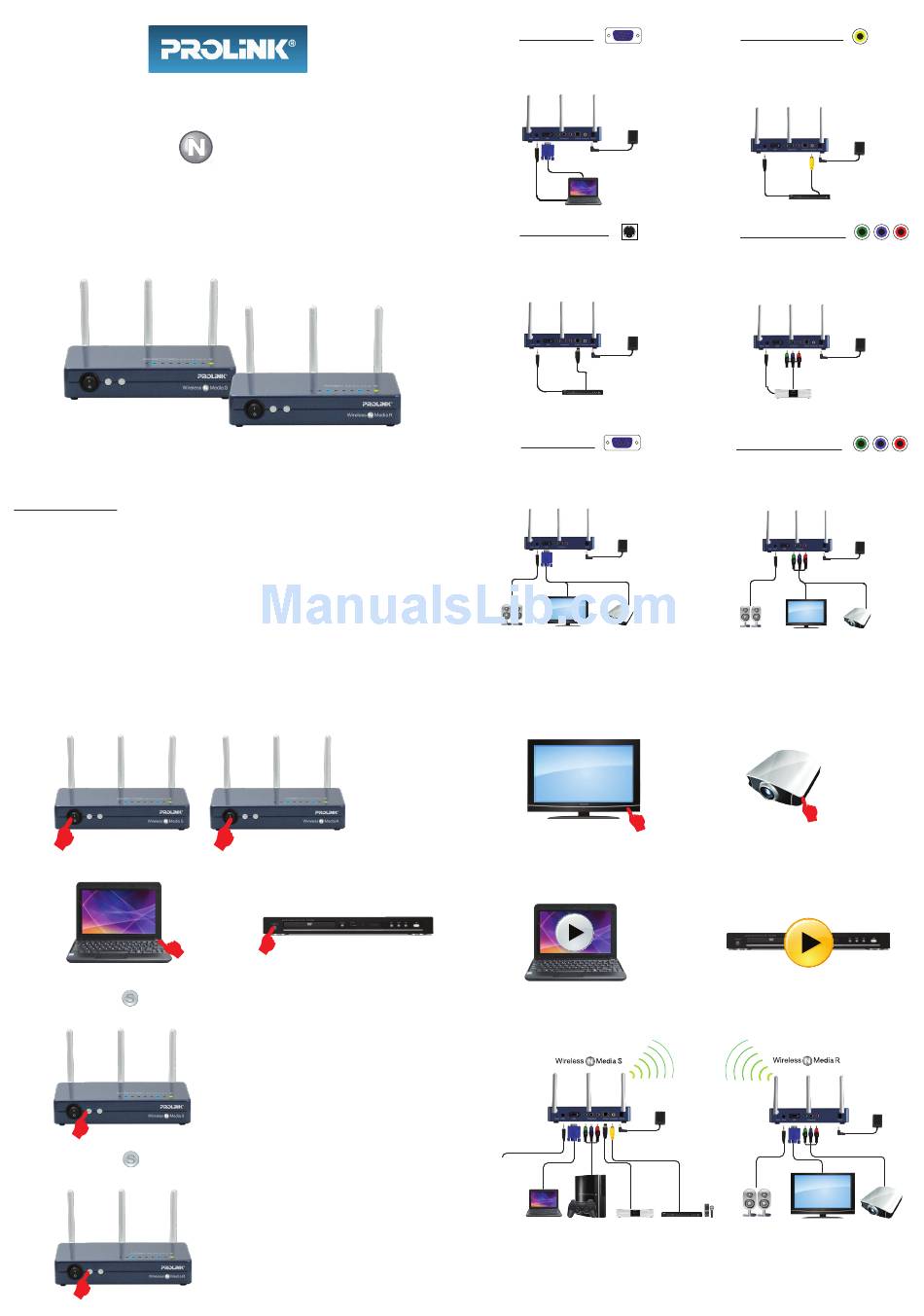

PROLiNK PME200 Quick Installation Manual

Wireless
Quick Installation Guide (QIG)
BEFORE GETTING STARTED
This QIG is designed to aid in the quick installation of your PROLiNK® PME200 Wireless-N Media Extender. If you
experience problems following these procedures or need further information regarding your adapter, visit
www.prolink2u.com/support to search our online knowledge base for frequently asked questions and other common
troubleshooting tips and to download the full version Quick Installation Guide.
PACKAGE CONTENTS
1 x Wireless-N Media S (Sender)

1 x Wireless-N Media R (Receiver)

2 x Power Adapter

1 x User Manual

1 x Quick Installation Guide

2 x VGA Cable

6 x 2dbi Antennas

Setup Procedures / Steps
1. Turn on both Wireless-N Media S
Media S
2. Turn on your source device e.g. Laptop or media player device.
Laptop
3. Press the S button on Media S
connection type used (refer to Input Options
Media S
4. Press the S button on Media R
connection type used (refer to Output Options
Media R
Media Extender
PME200
MODEL NO:
English Edition
and Media R devices.
Media R
OR
Media Player
to select the input source depending on the
Diagram).
to select the output source depending on the
Diagram).
Input Options
VGA Connection
Option 1:
Connect VGA cable from Laptop VGA Out to Media S
Port. Connect Audio cable (not supplied) from Audio Out of
Media S.
Laptop to Audio Port of the
Wireless-N Media S (Sender)
Power Adapter
Computer System
S-Video Connection
Option 3:
Connect S-Video cable (not supplied) from media player
e.g. LD/VCD Player to S-Video Port of Media S. Connect
Audio cable (not supplied) from Audio Out of media player
to Audio Port of the Media S.
Wireless-N Media S (Sender)
Power Adapter
LD/VCD Player
Output Options
VGA Connection
Option 1:
Connect VGA cable from VGA Port of Media R to VGA input
of LCD TV or Projector. Connect Audio cable (not supplied)
from Audio Out of Media R to Speakers.
Wireless-N Media R (Receiver)
Power Adapter
OR
Speakers LCD TV Digital Projector
5. Turn on your LCD TV or Projector.
LCD TV
6. For Laptop: Set the display through the VGA Out Port.
For media player: Press Play button.
Laptop
Congrats! You can now enjoy wireless AV connection on LCD TV or Projector.
Power Adapter
Audio Device
(Computer/Gaming/
Theater/Karaoke)
Computer System Gaming System Home Theater System
Composite Connection
Option 2:
Connect Composite Video cable (not supplied) from media
VGA
player e.g. VCD Player to Composite Port of
Audio cable (not supplied) from Audio Out of media player to
Audio Port of the Media S.
Wireless-N Media S (Sender)
VCD Player
Component Connection
Option 4:
Connect Component cable (not supplied) from Component
Out of media player e.g. VCD/BD Player to Component Port of
Media S. Connect Audio cable (not supplied) from Audio Out
of media player to Audio Port of the Media
Wireless-N Media S (Sender)
DVD/BD Player
Component Connection
Option 2:
Connect Component cable ( not supplied ) from Component Port
of Media R to Component Port of LCD TV or Projector. Connect
Audio cable ( ) from Audio Out of
not supplied
Speakers.
Wireless-N Media R (Receiver)
OR
Speakers LCD TV
OR
Digital Projector
OR
Media Player
Karaoke System Stereo Sound System LCD TV
Media S. Connect
Power Adapter
S.
Power Adapter
Media R to
Power Adapter
Digital Projector
Power Adapter
Digital Projector
PME200 QIG (EN) Ver 1.0 (Jan'10)
