PROLiNK PME200 User Manual

Wireless-n media extender
Hide thumbs Also See for PME200:

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: User Manual and Installation Instructions
All manuals and user guides at all-guides.com

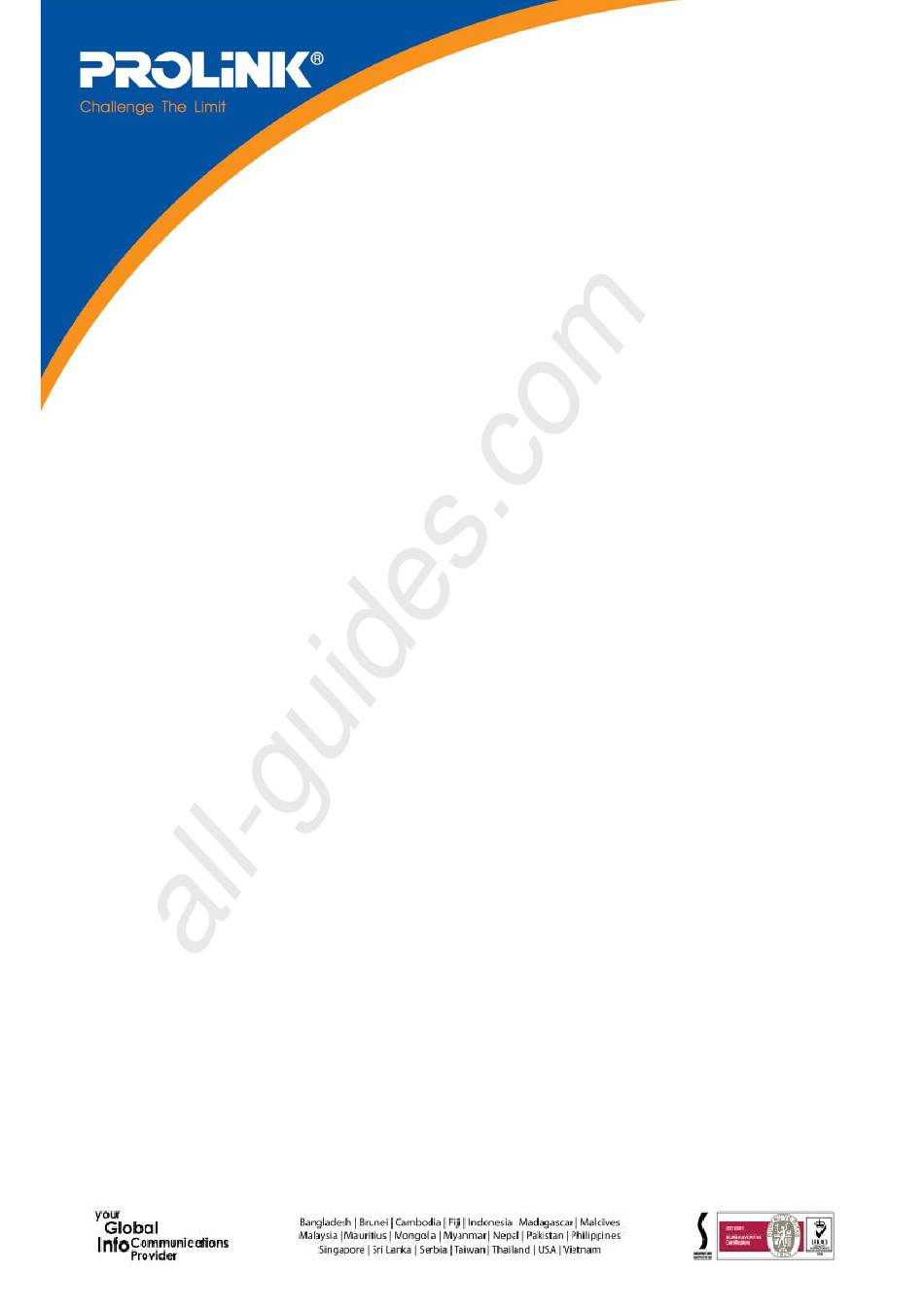

USER'S MANUAL
Wireless-N Media Extender
PME200
Version 1.0 (Jan'10)
1.00 (Sep'09)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PME200 and is the answer not in the manual?

Questions and answers

Related Manuals for PROLiNK PME200

Summary of Contents for PROLiNK PME200

  • Page 1 All manuals and user guides at all-guides.com USER'S MANUAL Wireless-N Media Extender PME200 Version 1.0 (Jan’10) 1.00 (Sep’09)

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com TABLE OF CONTENTS FCC Interference Statement Chapter 1 Introduction Overview Features Package Contents Application Scenarios Chapter 2 Installation Wireless-N Media S Wireless-N Media R Buttons & Components functions...

  • Page 3: Fcc Interference Statement

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction Overview The PROLiNK® PME200 Wireless-N Media Extender system combine the unique i-NIC card with high performance Video adapter, to play any Multi-media source by 2.4GHz, wireless 802.11n/b/g connection. No configuration is necessary and no new UI to learn. Attempt to provide a convenient experience for user.

  • Page 5: Application Scenarios

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Application Scenarios User Manual (English) Version 1.00 (Jan’09)

  • Page 6: Chapter 2 Installation

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Chapter 2 Installation Wireless-N Media S (Sender) Front View Wireless antenna x 3 units Power button Source button Channels button Rear View Reset button Audio Input VGA Input...

  • Page 7: Wireless-N Media R

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Wireless-N Media R (Receiver) Front View Wireless antenna x 3 units Power button Source button Channels button Rear View Reset button Audio Input VGA Input Component (YPbPr) Input...

  • Page 8: Buttons & Components Functions

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Buttons & Components functions: View Buttons/Components Functions Wireless antenna 3 Pcs of 2dBi detachable antennas. Power button Switch the button to turn on or off the power supply.

  • Page 9: Chapter 3 Setup Procedures / Steps

    Chapter 3 Setup Procedures / Steps ® Connect the PROLiNK PME200 Wireless-N Media S with cables to media input sources, such as a video device or a DVD player. ® And connect PROLiNK PME200 Wireless-N Media R with cables to media output sources, such as a monitor or a projector.
  • Page 10 All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Then, connect both devices power adapters to outlets. Turn on both wireless video devices power. After finished above set up steps, the wireless video transceivers will be ready to transmit media.

  • Page 11: Chapter 4 Hardware Specifications

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Chapter 4 Hardware Specifications Wireless Features Standard IEEE 802.11n/b/g Standard Antenna Type External Dipole antenna 2dBi Number of Selectable 1. CH 1: Channel 3 Channels 2. CH 2: Channel 6 3.

  • Page 12: Wireless-N Media R Features

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Wireless-N Media R Features Video Outputs 1. Component (YPbPr) 2. VGA Output Format & Frequency 1. Component: 480p (60Hz) 576p (50Hz) 720p (60Hz) 2. VGA: 640x480 800X600...

  • Page 13: Chapter 5 Technical Support

    All manuals and user guides at all-guides.com ® PROLiNK PME200 User Manual www.prolink2u.com Chapter 5 Technical Support REGISTER ONLINE FOR FREE WARRANTY. FREE TECHNICAL SUPPORT HOTLINE: Monday to Friday, 9.00 am – 6.00 pm (Closed on Saturdays, Sundays and Public Holidays) •...
  • Page 14 Tel : (62) 21 3483 1777 Email : support@prolink.co.id PROLiNK® is a trademark of Fida International (S) Pte Ltd and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners.
  • Page 15 All manuals and user guides at all-guides.com BUKU MANUAL Wireless-N Media Extender PME200 Version 1.0 (Jan’10)
  • Page 16 All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com DAFTAR ISI Pernyataan FCC Interference BAB 1 Pendahuluan Tinjauan Fitur-Fitur Isi Paket Aplikasi Skenario BAB 2 Instalasi Wireless-N Media S Wireless-N Media R Tombol dan Fungsi Komponen...
  • Page 17 All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com Federal Communications Commission (FCC) Pernyataan Interferensi Perangkat ini sesuai dengan Bab 15 dari Peraturan FCC. Dimana Pengoperasian berdasarkan pada dua kondisi berikut: (1) perangkat ini mungkin tidak menimbulkan gangguan yang membahayakan, dan (2) perangkat ini dapat menerima gangguan, termasuk gangguan yang dapat menyebabkan pengoperasian yang tidak dikehendaki.

  • Page 18: Bab 1 Pendahuluan

    Pendahuluan Tinjauan menggabungkan sistem yang PROLiNK® PME200 Wireless-N Media Extender sistem unik dari i-NIC dengan video adaptor performa tinggi, untuk memutar Multi-media apapun melalui koneksi wireless 2.4GHz, 802.11n/b/g. Tidak ada konfigurasi yang diperlukan. Upaya untuk memberikan pengalaman yang nyaman bagi pengguna.

  • Page 19: Aplikasi Skenario

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com Applikasi Skenario Buku Manual (Bahasa Indonesia) Version 1.00 (Jan’10)

  • Page 20: Bab 2 Instalasi

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com BAB 2 Instalasi Wireless-N Media S (Sender) Tampak Depan Wireless antena x 3 pcs Tombol Power Tombol Source Tombol Channels Tampak Belakang Tombol Reset Audio Input VGA Input...

  • Page 21: Wireless-N Media R

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com Wireless-N Media R (Receiver) Tampak Depan Wireless antena x 3 pcs Tombol Power Tombol Source Tombol Channels Tampak Belakang Tombol Reset Audio Input VGA Input Component (YPbPr) Input...

  • Page 22: Tombol Dan Fungsi Komponen

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com Tombol dan Fungsi Komponen: View Tombol/Komponen Fungsi Wireless antenna 3 Pcs dari 2dBi detachable antennas. Tombol Power Tombol untuk menghidupkan atau mematikan listrik. Tombol Source Tombol untuk mengaktifkan sumber media yang dikehendaki.

  • Page 23: Bab 3

    BAB 3 Setup Procedur / Langkah ® Koneksikan PROLiNK PME200 Wireless-N Media S dengan kabel ke sumber media input, seperti video device atau DVD player. ® Lalu koneksikan PROLiNK PME200 Wireless-N Media R dengan kabel ke sumber media output, seperti monitor atau projector.
  • Page 24 All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com Lalu, sambungkan power adaptor ke masing masing unit. Hidupkan keduanya. Setelah selesai langkah diatas, wireless video transceivers siap untuk mentransmit media. Buku Manual (Bahasa Indonesia) Version 1.00 (Jan’10)

  • Page 25: Bab 4 Spesifikasi Hardware

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com BAB 4 Spesifikasi Hardware Fitur Wireless Standard IEEE 802.11n/b/g Standard Tipe Antenna External Dipole antenna 2dBi Jumlah Channels 1. CH 1: Channel 3 2. CH 2: Channel 6 3.

  • Page 26: Fitur Wireless-N Media R

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com Fitur Wireless-N Media R Video Outputs 1. Component (YPbPr) 2. VGA Output Format & Frequency 1. Component: 480p (60Hz) 576p (50Hz) 720p (60Hz) 2. VGA: 640x480 800X600...

  • Page 27: Bab 5

    All manuals and user guides at all-guides.com ® PROLiNK PME200 Buku Manual www.prolink2u.com BAB 5 Technical Support REGISTER ONLINE UNTUK GARANSI. TECHNICAL SUPPORT HOTLINE: Senin – Jum’at, 9.00 am – 6.00 pm (Tutup pada hari Sabtu, Minggu dan Hari Besar lainnya) •...
  • Page 28 Tel : (62) 21 3483 1777 Email : support@prolink.co.id PROLiNK® is a trademark of Fida International (S) Pte Ltd and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners.
