- Page 1 Model No: PEN1201 Quick Installation Guide Wi-Fi extender Version 2.00 (English | Indonesian)
-
Page 2: Package Contents

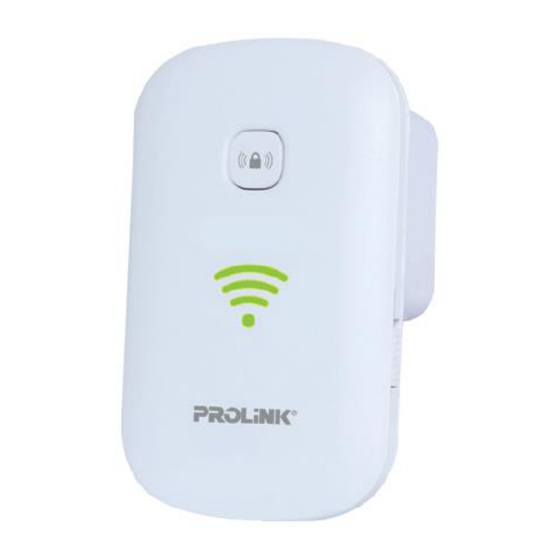

Package Contents Overview Physical Interface Dimension: 99*60*70mm Weight: 88g WPS Button • To connect with Wi-Fi Client: Press and release • To connect with an existing Router’s Wi-Fi: Press and hold for 6 seconds... - Page 3 Wi-Fi Signal Strength Indicator Status Indicator Operation Mode switch (Repeater, Access Point and Router) • Top position: Access Point (AP) Mode • Repeater Middle position: Repeater Mode • Router Bottom position: Router Mode WAN/LAN Port LAN Port Power Switch • Top position: Turn OFF Extender •...
-
Page 4: Installation
Step 1: Set to Repeater Mode Repeater Router Step 2: Place the PEN1201 near your main Router for first time setup and turn it On Step 3: Connect your Wi-Fi Client (e.g. mobile phone) to the PEN1201 Wi-Fi SSID (Wi-Fi SSID and password can be found on the product label). - Page 5 Step 4: Launch Internet Browser and type http://pen1201.setup (please do type out http://) Step 5: Login to the Web GUI default username/password (default username: admin; default password: password) Step 6: Click Repeater Wizard...
- Page 6 Step 7: Select your existing home Wi-Fi SSID and enter the Wi-Fi password Step 8: Click Save to proceed Note: The PEN1201 SSID will now change to follow your home router SSID with su x “-ext”. The Wi-Fi Password for PEN1201 will also follow your home router Wi-Fi password.
- Page 7 You may move the PEN1201 to be in between your home router and Wi-Fi area which you intend to cover Best ≥ Good 2 LED bars light up Status Indicator (Power) Router Devices PEN1201 In between dead zone and router...
- Page 8 How to change Web Login Password: Step 1: Connect your device to the PEN1201 LAN port or PEN1201 SSID (default is Prolink_XXXXX or Your RouterSSID-ext) Step 2: Launch a Web browser and type http://pen1201.setup (please do type out http://) Step 3: Locate, Click Password Settings, and proceed to set...
-
Page 9: Isi Kemasan
Isi Kemasan Penjelasan Antara Muka Fizikal Dimensi: 99*60*70mm Berat: 88g Tombol WPS • Untuk terhubung dengan Wi-Fi Client: Tekan dan lepaskan • Untuk terhubung dengan Wi-Fi Router yang ada: Tekan dan tahan selama 6 detik... - Page 10 Indikator signal Wi-Fi Indikator Status Saklar mode Operasi (Repeater, Access Point and Router) • Posisi Atas: Mode Access Point (AP) • Repeater Posisi Tengah: Mode Repeater • Router Posisi Bawah: Mode Router Port WAN/LAN Port LAN Switch Power • Top position: Turn OFF Extender •...
- Page 11 Router Langkah 2: Tempatkan PEN1201 di dekat Router Anda terlebih dahulu dan nyalakan Langkah 3: Hubungkan Wi-Fi Client Anda (mis. Ponsel) ke PEN1201 Wi-Fi SSID (Wi-Fi SSID dan password dapat ditemukan pada label produk). Tekan Connect jika diberitahu bahwa SSID yang terhubung tidak memiliki akses Internet.
- Page 12 Langkah 4: Luncurkan web browser dan masukkan http://pen1201.setup (harap ketikkan http://) Langkah 5: Login ke Web GUI dengan default username/password (username: admin/password: password) Langkah 6: Klik Repeater Wizard...
- Page 13 Langkah 7: Pilih SSID Wi-Fi rumah Anda dan masukkan Wi-Fi password Langkah 8: Klik Save Catatan: SSID PEN1201 akan berubah mengikuti SSID Wi-Fi rumah dengan su x “-ext”. Wi-Fi Password PEN1201 juga akan mengikuti Wi-Fi Password router rumah Anda. Mengikuti contoh di langkah 7, SSID baru PEN1201 akan...
- Page 14 PEN1201 In between dead zone and router Cara mengubah Wi-Fi SSID/Password: Langkah 1: Hubungkan perangkat Anda ke LAN port PEN1201 atau SSID PEN1201 (Prolink_XXXXX atau RouterSSID-ext) Langkah 2: Buka Web browser dan masukkan http://pen1201.setup (harap ketikkan http://) Langkah 3: Cari, Klik Wi-Fi Settings, dan lanjutkan untuk...
- Page 15 Cara mengubah Web Login Password: Langkah 1: Hubungkan perangkat Anda ke LAN port PEN1201 atau SSID PEN1201 (Prolink_XXXXX atau RouterSSID-ext) Langkah 2: Buka Web browser dan masukkan http://pen1201.setup (harap ketikkan http://) Langkah 3: Cari, Klik Password Settings, dan lanjutkan untuk...
- Page 16 Note: Closed on Saturdays, Sundays and local/regional Public Holidays. Register online for your Product Warranty at www.prolink2u.com Prolink is a registered trademark of Fida International (S) Pte Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Product images are purely for illustrative purposes and may defer from the actual product.
