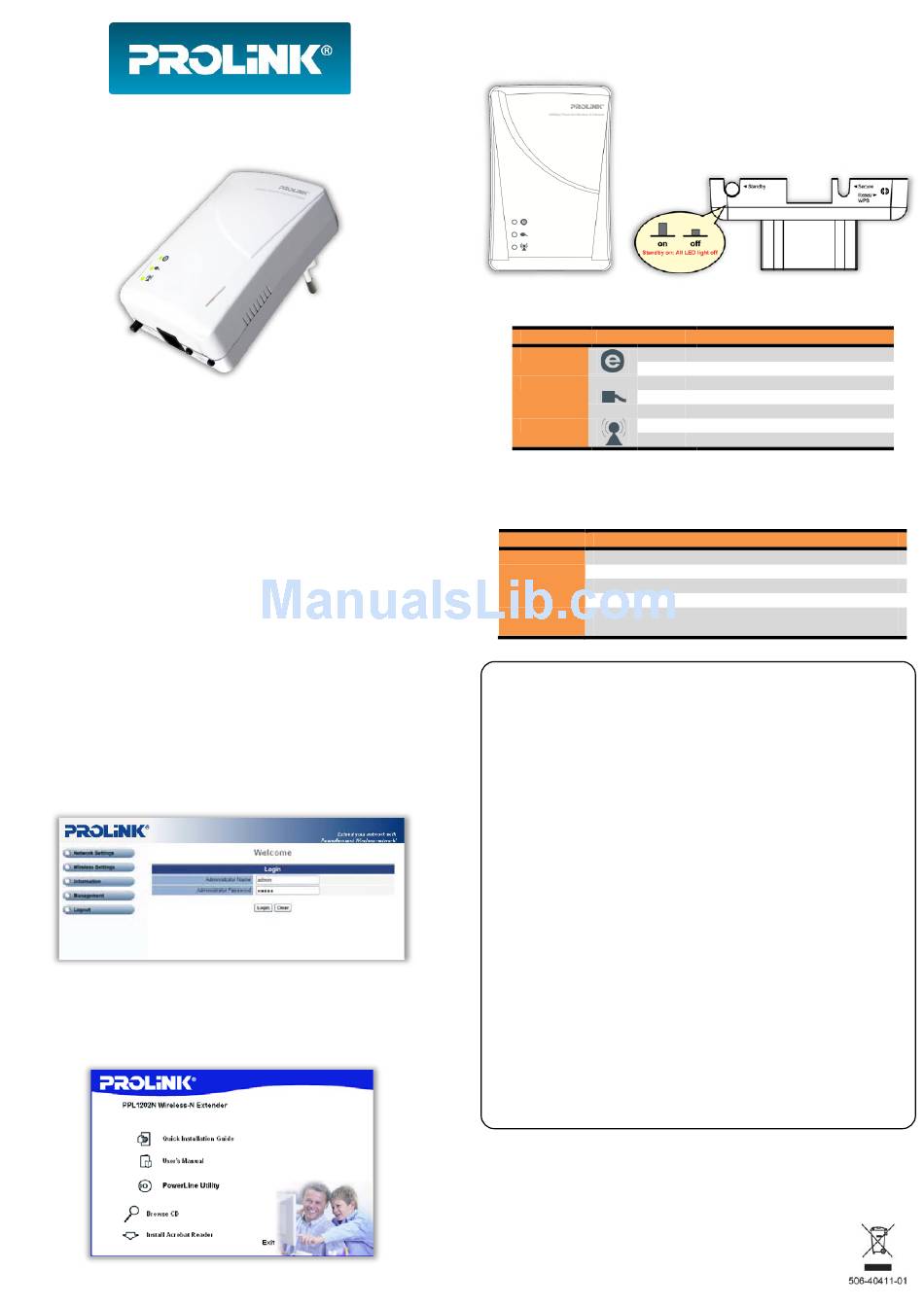

PROLiNK PPL1202N Quick Installation Manual

www.prolink2u.com
PROLiNK
200Mbps Powerline Wireless-N Extender
Quick Installation Guide
Version 1.00 (Jul'10)
CONFIGURING POWERLINE WITH WEB BROWSER
Before enter the web UI, please make sure your PC/NB's LAN TCP/IP settings should be in
the 192.168.16.x (x cannot be 168) IP domain, for example, you can set as "192.168.16.5"
and then follow the steps to enter the web management UI. Open web browser and type
http://192.168.16.168 in the browser's address box. This number is the default IP address for
this device. The default user name is "admin" and password is "password".
BROWSE THE USER'S MANUAL
Insert the CD into your CD-ROM, and the CD will be display with Auto-Run.
®
PPL1202N
English
INSTALLATION & SETUP
The Overview:
The Front LEDs:
LED State
Powerline AP ON
OFF
Ethernet ON
FLASHING
OFF
Wireless ON
FLASHING
The Rear Connectors:
Connect an Ethernet cable from your PC's Ethernet port to the LAN port of the Powerline
200M Wireless-N Extender.
Connector Description
RJ-45 Port
Connect to the Ethernet Cable
Secure Button Button can auto secure and group the Powerline AP devices.
Reset/WPS WPS: Press 1 second can enable the WPS search function.
Button Reset: Press 5 seconds can reset the device to factory default.
Standby Press this button to enable the standby mode (EuP/ErP function).
Button This function will stop the device activities in order to save energy.
IMPORTANT SAFETY INSTRUCTIONS
This product is intended for connection to the AC power line.
The following pre-cautions should be taken when using this product:
• Please read all instructions before installing and operating this product.
• Please follow all warnings and instructions marked on the product.
• Do not operate this product near water.
This product should never be place near or over radiator, or heat register.
•
This product relies on a building's electrical installation for short-circuit (over
•
current) protection.
Ensure that a fuse or circuit breaker is used on the phase conductors (all
•
current-carrying conductors).
Do not allow anything to reset on the product interconnect cords.
•
• Do not locate this product where people may walk on the cords.
• The power cord should be plugged directly into a specification AC wall outlet.
• Only a qualified technician should service this product. Opening or removing
covers may result in exposure to dangerous voltage points or other risk.
• Unplug this product from the wall outlet and refer the product to qualified
service personal for the following conditions:
1. When the interconnect cords are damaged or frayed.
2. If liquid has been spilled onto the product.
3. If the product has been exposed to rain or water.
4. If the product does not operate normally when the operating instructions
have been followed.
5. If the product exhibits a distinct change in performance.
Register Online For Your Product Warranty.
www.prolink2u.com
Description
Powerline AP network activity.
Search or no Powerline AP network activity.
Ethernet connection is OK.
Data transfer.
No link to Ethernet.
Wireless Function Enable
Data transfer.
