PROLiNK PPL1202N Setup Manual

Hide thumbs
1
2

Advertisement

Table of Contents

1) Set a Static IP for your PC using a wired connection from the PPL1202N to your
PC/laptop.
http://www.howtogeek.com/howto/19249/how-to-assign-a-static-ip-address-in-xp-vista-or-
windows-7/
Eg IP address 192.168.16.1
Subnet
255.255.255.0
Gateway
192.168.16.168
2) Access
http://192.168.16.168
3) Enter default admin as username, password as password.

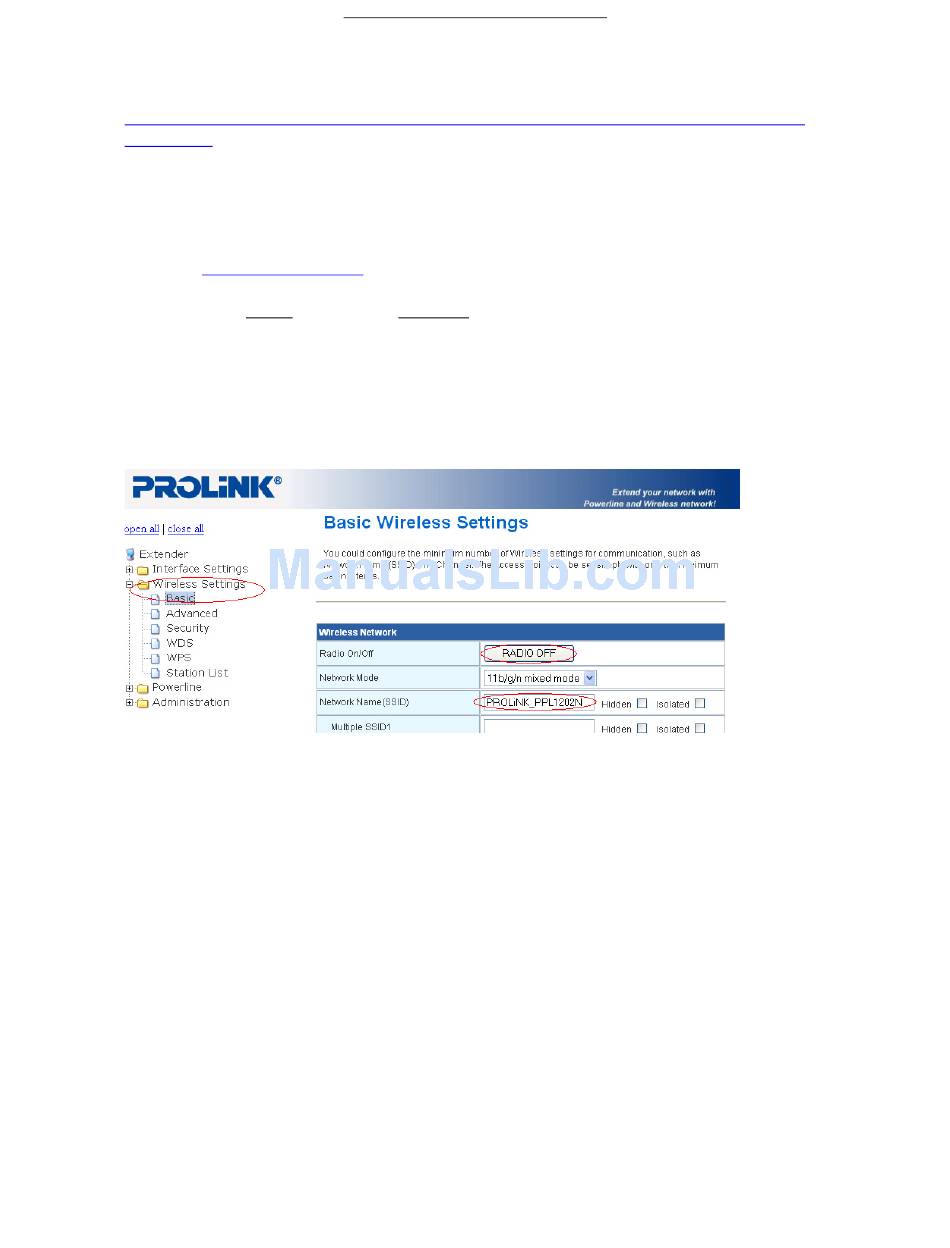

4) Click on wireless, basic.
5) Make sure Radio On/Off button shows RADIO OFF.
6) Rename SSID if you so desired. Click Apply to save the settings.
7) Click on Security
8) Select WPA2-PSK for the best wireless throughput and security performance.
9) Enter your desired security password (min 8 characters) in pass phrase.
10) Click Apply to save the settings.

How to setup PPL1202N Manually

using Internet Explorer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPL1202N and is the answer not in the manual?

Questions and answers

Related Manuals for PROLiNK PPL1202N

Summary of Contents for PROLiNK PPL1202N

  • Page 1 How to setup PPL1202N Manually 1) Set a Static IP for your PC using a wired connection from the PPL1202N to your PC/laptop. http://www.howtogeek.com/howto/19249/how-to-assign-a-static-ip-address-in-xp-vista-or- windows-7/ Eg IP address 192.168.16.1 Subnet 255.255.255.0 Gateway 192.168.16.168 2) Access http://192.168.16.168 using Internet Explorer. 3) Enter default admin as username, password as password.
  • Page 2 11) Release the static IP from step 1. 12) Connect the PPL1202N at your desired locations and connect your desired devices to it. To connect wireless, activate the wireless connection on your PC/laptop and connect to the wireless network (SSID) of the PPL1202N. When prompted the network key, enter the pass phrase you have set when setting up the wireless security (step 12 above).
