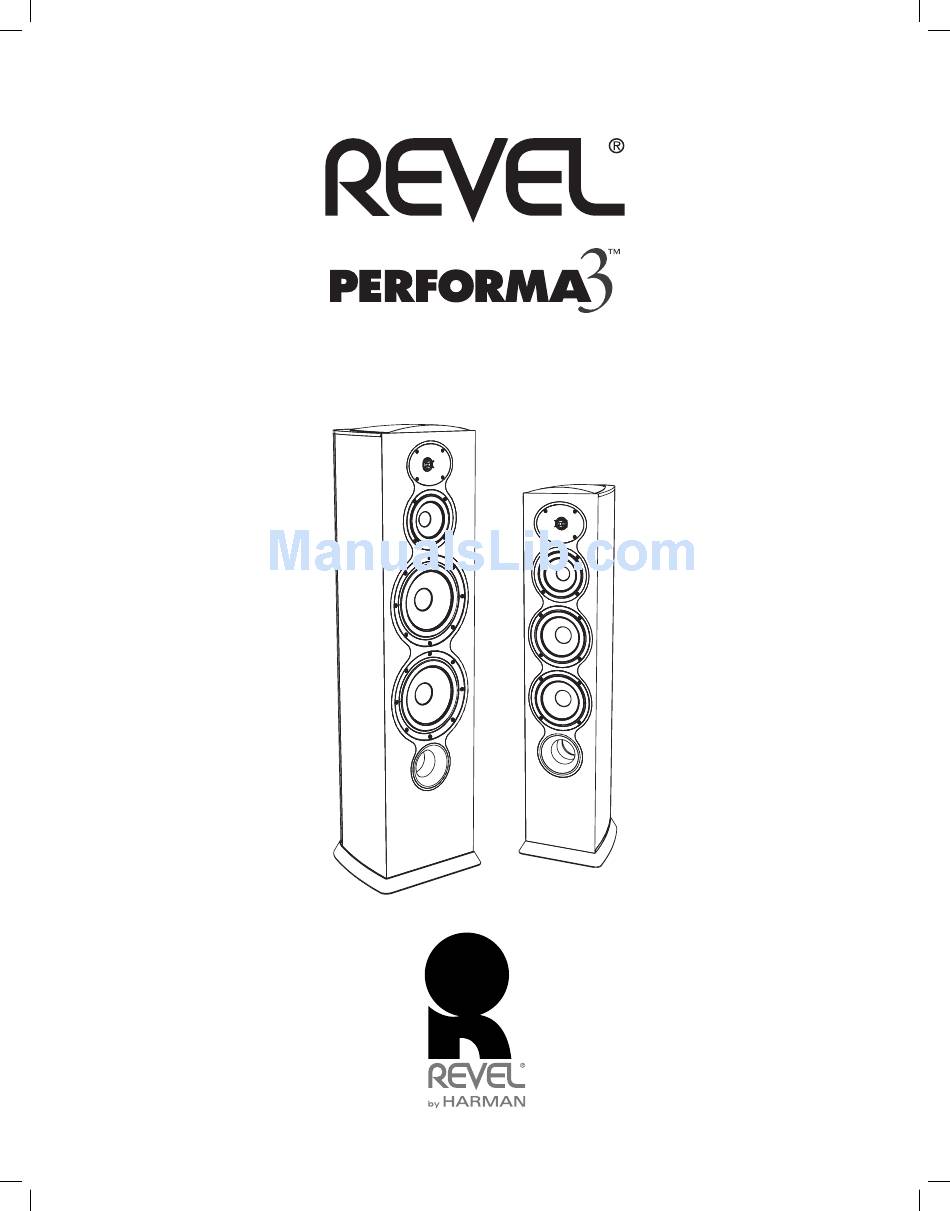

- Page 1 F208/F206 Floorstanding Loudspeaker Owner’s Manual...
- Page 2 Tweeter Level Switch, Low-Frequency Compensation Switch, Binding Posts, Shorting Straps ......... 4 Installation Considerations Loudspeaker Placement, Listening Room Acoustics, Acoustic Treatment Materials, Adjustable Spikes ......5 Making Connections Observe Proper Polarity, Speaker Cable, F206 Connections, F208 Connections ..............7 Optimizing Performance Port Plugs, F208 Adjustments ............................. 10 Caring for Your Loudspeakers Grilles, Cabinet Finish .................................
- Page 3 Performa3’s class. The tweeter’s integrated spade lugs. The F208 includes two sets of binding posts that enable the acoustic lens waveguide is based on a breakthrough mathematical loudspeakers to be bi-wired or bi-amped.
- Page 4 Woofers with Cast Frames Front-Firing Bass Refl ex Port Enclosure with 1"-Thick Panels and Extensive Internal Bracing F206 F208 Tweeter Level Switch Low-Frequency Compensation Switch Binding Posts Binding Posts Shorting Straps F206 F208 Revel Performa3 F208/F206 Floorstanding Loudspeaker Owner’s Manual...
-
Page 5: Installation Considerations
BindinG POStS These gold-plated terminals provide connections from the power amplifi er(s). The F208 has one pair of high-frequency and one pair of low-frequency binding posts that come from the factory connected by a pair of shorting Primary Listening Position straps (see below). -
Page 6: Acoustic Treatment Materials
Listening rooms have a profound impact on sound, particularly The F208 and F206 feature high-order fi lters that optimize the at lower frequencies. In fact, the effect of the listening room can loudspeakers’ on-axis and off-axis response, minimizing sonic dominate sounds below about 400Hz. -
Page 7: Making Connections
SPiKeS maKinG COnneCtiOnS Four adjustable spikes are included for each F208 and F206 loudspeaker. You can install these spikes in the bottoms of the loudspeaker cabinets CAUTION: Never make or break connections unless all to provide optimal stability, accommodating installations on tile, system components are powered off. - Page 8 Then connect the other end of that speaker cable to the same power amplifi er output channel that you connected in step 2. 4. Repeat steps 1, 2 and 3 to connect the second F208 to the power amplifi er’s remaining output channel. Revel Performa3 F208/F206 Floorstanding Loudspeaker...
- Page 9 Then connect the other end of that speaker cable to the desired power amplifi er output channel. 5. Repeat steps 1, 2 and 3 to connect the second F208 to another, identical power amplifi er. Repeat step 4 to connect the second 3.
- Page 10 1. Remove the shorting straps. 5. Repeat step 3 to connect the low-frequency set of input terminals on the second F208 to the other channel of the power amplifi er 2. Connect one speaker cable to the high-frequency set of F208 input that was connected in step 3.
-
Page 11: Optimizing Performance
• In the F208 you can experiment with the port plugs in conjunction with the loudspeaker’s Low-Frequency Compensation adjustment to fi ne-tune the low-frequency performance even further. -
Page 12: Specifications
Bass-refl ex via front-mounted port Inputs: Gold-plated binding posts Available fi nishes: Piano black, high-gloss walnut Dimensions (H x W x D): 41-3/8" x 9-3/4" x 13-11/16" (1051mm x 249mm x 347mm) Weight: 58.1 lb (26.4kg) Revel Performa3 F208/F206 Floorstanding Loudspeaker Owner’s Manual... -
Page 13: Limited Warranty
There is no other express warranty on this product. Neither this manufacturing defects so long as: warranty nor any other warranty, express or implied, including implied 1. The Revel products were purchased within the 50 United States, its warranties of merchantability and fitness, shall extend beyond the territories or Canada.
