Summary of Contents for REVELL PERFORMA F228Be

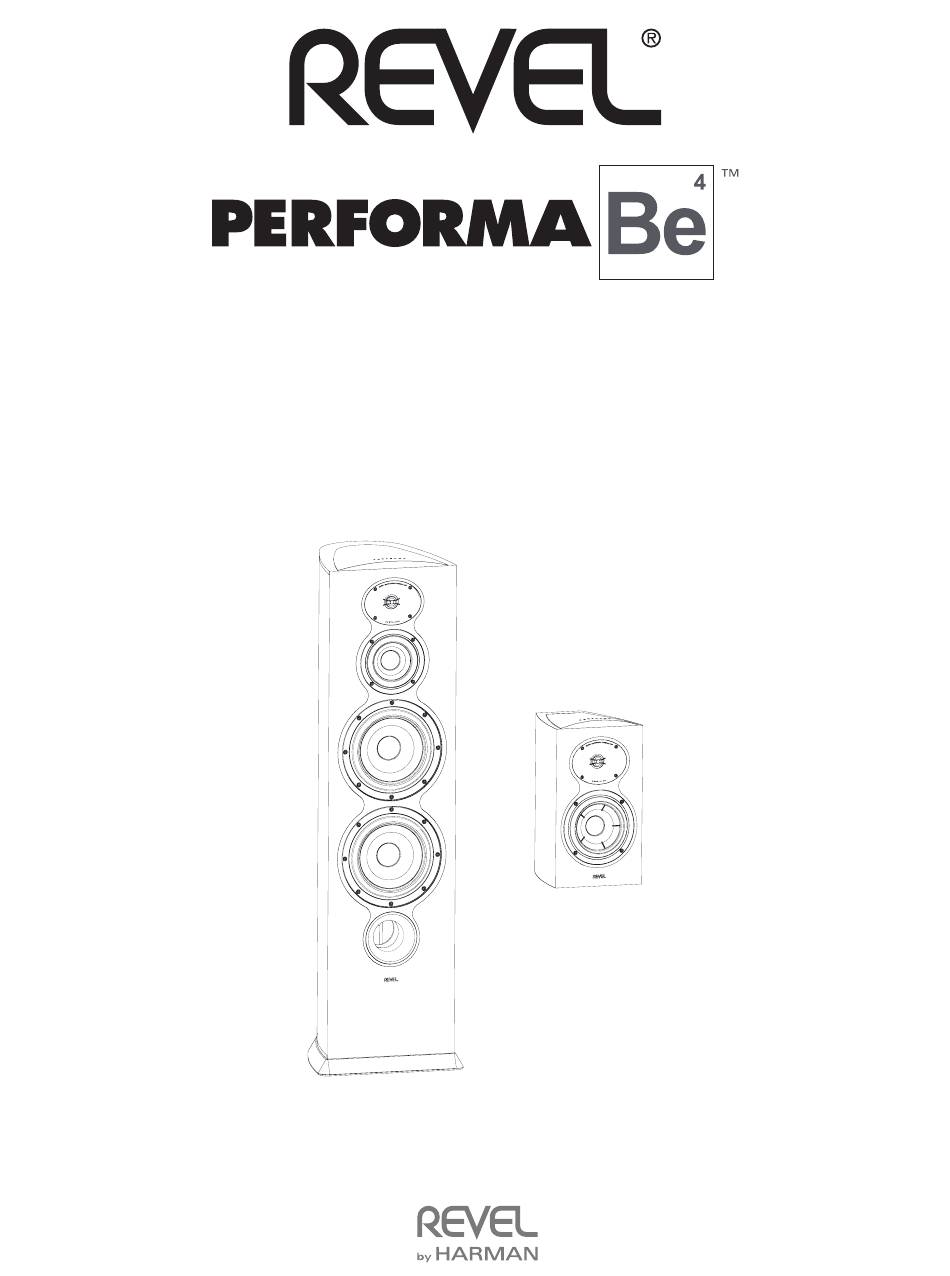

- Page 1 F228Be and M126Be Loudspeaker Owner’s Manual M126Be F228Be...
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS 1. Use only attachments/accessories specified by the manufacturer. 2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use This product must not be disposed of or dumped with your other household waste. caution when moving the cart/apparatus combination to avoid injury You are liable to dispose of all your electronic or electrical waste equipment by from tip-over. -
Page 3: Unpacking The F228Be
UNPACKING THE F228Be Unpack the F228Be in the order of the illustrations below. Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Step 8 Step 9 Step 10 Step 11 Revel PerformaBe F228Be M126Be Loudspeaker Owner’s Manual... -
Page 4: About Revel Performabe Loudspeakers
ABOUT REVEL PERFORMABe LOUDSPEAKERS heavily gold plated and include an articulated section that allows for more secure connections when using spade lugs. The floor standing F228Be includes two sets of binding posts that enable the loudspeakers to be bi-wired or bi-amped. FEATURE HIGHLIGHTS During development every Revel loudspeaker model is compared to competitive •... -
Page 5: Installation Considerations
M126Be OVERVIEW INSTALLATION CONSIDERATIONS Loudspeaker fidelity depends on the following three factors: loudspeaker accuracy, loudspeaker placement, and listening room acoustics. Experimenting with loudspeaker placement and listening room acoustics will have the most Inert Enclosure with 1"-Thick Panels and significant impact on the loudspeakers’ performance. Internal Bracing 1"... - Page 6 M126Be HEIGHT PLACEMENT • If the loudspeakers are to be placed on a wood, linoleum or tile floor, install the spikes with the round ends protruding from the cabinet. After • For best results, place the M126Be speaker so the tweeter is aligned within determining the final locations for the speakers, you can place coins or use- a few inches of seated listener height.
-
Page 7: Making Connections
MINIMUM WIRE GAUGE Because the listener’s eyes and ears are on the same plane, the “mirror method” is an accurate determinant of first reflection points. This method can Maximum Wire Maximum Wire Minimum Wire be used to determine reflection points for side walls, rear walls, front walls, Length (Feet) Length (Meters) Gauge (AWG) - Page 8 F228Be The F228Be has one pair of high frequency and one pair of low frequency binding posts that come from the factory connected by a pair of shorting straps (see below). The two sets of binding posts can be configured for single-wire, bi-wired, or bi-amped connections.
- Page 9 VERTICAL BI-AMPED CONNECTIONS NOTE: CAUTION: Remove the shorting straps before making bi- amped • Vertical bi-amped connections must be made using two identical power connections. Failure to do so may cause damage to some power amplifiers, one for each loudspeaker. amplifiers.
- Page 10 HORIZONTAL BI-AMPED CONNECTIONS Horizontal bi-amped connections are made between both pairs of F228Be input terminals and two separate output channels of two separate power amplifiers. The F228Be’s set of high-frequency input terminals is connected to one power CAUTION: Remove the shorting straps before making bi-amped amplifier, while the F228Be’s set of low-frequency input terminals is connected connections.
-
Page 11: Optimizing Performance
OPTIMIZING PERFORMANCE Once you have installed and connected your loudspeakers follow these steps the first time you turn your new PerformaBe loudspeakers on: PORT PLUGS 1. Begin playback of a familiar music or film source. Revel PerformaBe loudspeakers include a pair of foam port plugs that can 2. - Page 12 CABINET FINISH The cabinet’s wood veneer or lacquer finish does not require routine maintenance. Cabinet surfaces that have been marked with dust, fingerprints, or other dirt can be cleaned using a soft cloth – preferably micro-fiber, and high quality auto wax. Take care not to come in contact with the transducers. •...
-
Page 13: Specifications
SPECIFICATIONS F228Be Type: 3-way dual 8" floorstanding loudspeaker Low-frequency transducer: Two 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames Midrange transducer: 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame High-frequency transducer: 1" (25mm) Beryllium dome, with acoustic lens waveguide Recommended amplifier power range: 50 –... - Page 14 LIMITED WARRANTY Revel loudspeakers are warranted against defects. The duration of a warranty depends on the laws in the country in which it was purchased. Your local Revel retailer can help you determine the duration and coverage of your warranty. For more information please visit: REVELSPEAKERS.COM Please visit REVELSPEAKERS.COM for additional language support on the user manual.
- Page 15 Торговая марка: Revel Назначение товара: Пассивная акустическая система Изготовитель: Харман Интернешнл Индастриз Инкорпорейтед, США, 06901 Коннектикут, г.Стэмфорд, Атлантик Стрит 400, офис 1500 Страна происхождения: Индонезия Импортер в Россию: OOO “ХАРМАН РУС СиАйЭс“, Россия, 127018, г.Москва, ул. Двинцев, д.12, к 1 Гарантийный...
