Grizzly Vertical Mill G0667X Parts List
  1. Manuals
  2. Brands
  3. Grizzly Manuals
  4. Power Tool
  5. Vertical Mill G0667X
  6. Parts list
Grizzly Vertical Mill G0667X Parts List

Grizzly Vertical Mill G0667X Parts List

Grizzly vertical mill parts list
Hide thumbs Also See for Vertical Mill G0667X:

Advertisement

Quick Links

Download this manual See also: Owner's Manual

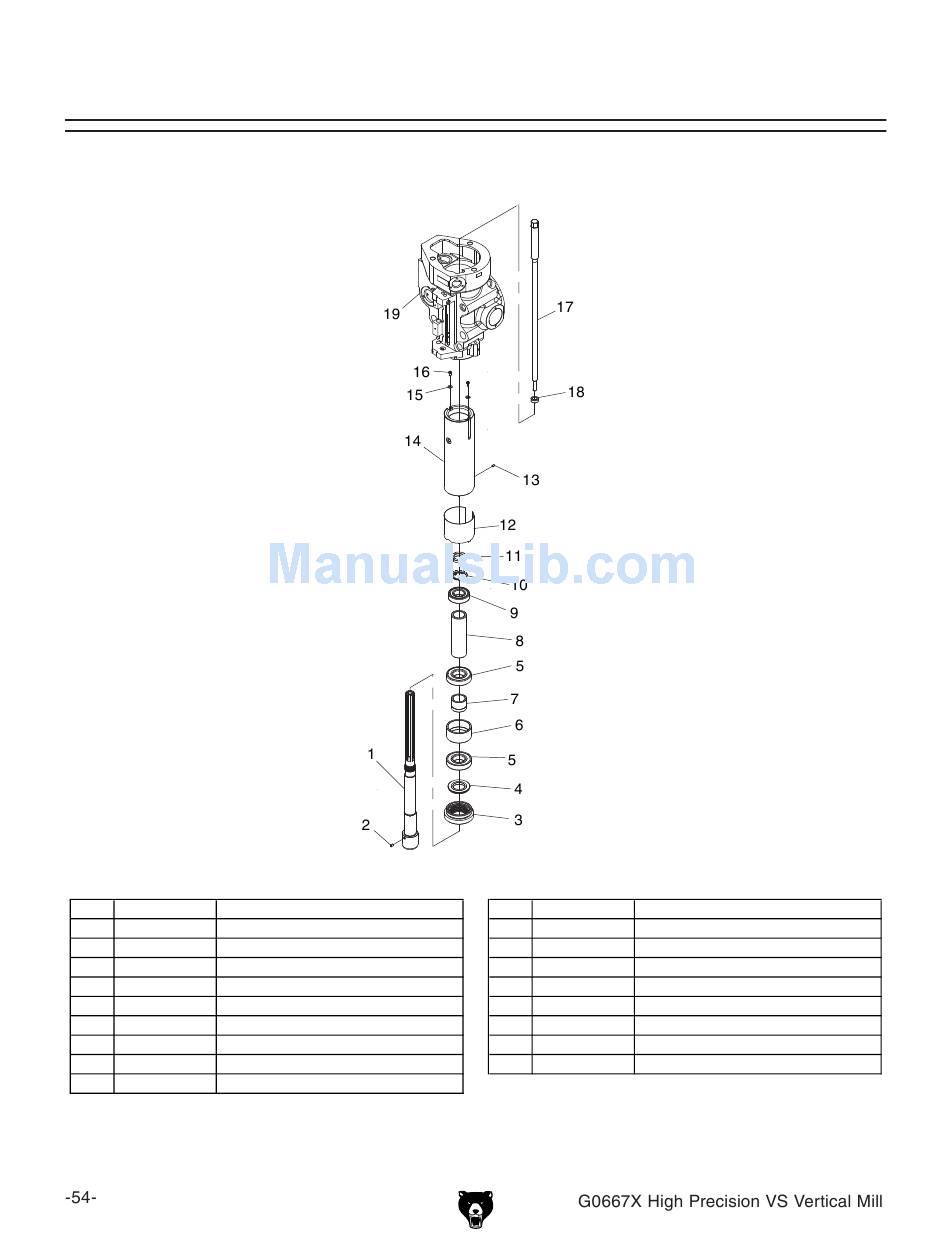

Quill Assembly Breakdown & Parts List
REF PART #
DESCRIPTION
1
P0667X0001
SPINDLE R8
2
PSS03M
SET SCREW M6-1 X 8
3
P0667X0003
BEARING CAP
4
P0667X0004
SPACER
5
P7202
ANGULAR CONTACT BEARING 7207
6
P0667X0006
BUSHING
7
P0667X0007
BEARING SUPPORT
8
P0667X0008
SPINDLE SLEEVE
9
P6206
BALL BEARING 6206ZZ
10
P0667X0010
SPANNER NUT WASHER
SECTION 9: PARTS
REF PART #
DESCRIPTION
11
P0667X0011
SPANNER NUT
12
P0667X0012
QUILL COVER
13
PSS26M
SET SCREW M5-.8 X 6
14
P0667X0014
QUILL
15
PW02M
FLAT WASHER 5MM
16
PS09M
PHLP HD SCR M5-.8 X 10
17
P0667X0017
DRAWBAR 1/2-20 X 18-1/2 R8
18
P0667X0018
DRAWBAR SPACER
19
P0667X0019
QUILL HOUSING

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vertical Mill G0667X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly Vertical Mill G0667X

Summary of Contents for Grizzly Vertical Mill G0667X

  • Page 1 SECTION 9: PARTS Quill Assembly Breakdown & Parts List REF PART # DESCRIPTION P0667X0001 SPINDLE R8 PSS03M SET SCREW M6-1 X 8 P0667X0003 BEARING CAP P0667X0004 SPACER P7202 ANGULAR CONTACT BEARING 7207 P0667X0006 BUSHING P0667X0007 BEARING SUPPORT P0667X0008 SPINDLE SLEEVE P6206 BALL BEARING 6206ZZ P0667X0010...

  • Page 2: Head Breakdown

    Head Breakdown...

  • Page 3: Head Parts List

    REF PART # DESCRIPTION P0667X0101 KNOB 3/8-16 P0667X0102 HANDLE P0667X0103 HANDLE HUB P0667X0104 STEEL BALL 3/16 P0667X0105 COMPRESSION SPRING PSS05 SET SCREW 5/16-18 X 1/4 P0667X0107 SPECIAL SCREW P0667X0108 PINION SHAFT HUB SLEEVE PSB33M CAP SCREW M5-.8 X 12 P0667X0110 SPRING COVER P0667X0111 COILED SPRING...
  • Page 4 REF PART # DESCRIPTION P0667X0201 REVERSE TRIP BALL LEVER P0667X0202 QUILL DOG P0667X0203 AUTO-DOWNFEED STOP P0667X0204 AUTO-DOWNFEED STOP LOCK P0667X0205 AUTO-DOWNFEED ROD PSB105 CAP SCREW 3/8-16 X 5/8 P0667X0207 SHIFTER ASSY P0667X0208 COMPRESSION SPRING P0667X0209 SHIFTER PIN P0667X0210 DOWEL PIN 3 X 12 P0667X0211 SHIFTER PIN END CAP P0667X0212...
  • Page 5 Drive System Breakdown...
  • Page 6 Drive System Parts List REF PART # DESCRIPTION P0667X0301 SPANNER NUT P0667X0302 SPANNER NUT WASHER P0667X0303 DEEP GRV BALL BEARING 6007VV P0667X0304 BUSHING P0667X0305 TIMING BELT 720-BYU-25 P0667X0306 SPINDLE PULLEY P0667X0307 SPINDLE PULLEY BOTTOM CAP PS68M PHLP HD SCR M6-1 X 10 P0667X0309 BRAKE BEARING CAP PS11M...
  • Page 7 Drive System Parts List REF PART # DESCRIPTION P0667X0398 COOLING FAN ASSY P0667X0399 CONTROL PANEL BOX PSB26M CAP SCREW M6-1 X 12 PS17M PHLP HD SCR M4-.7 X 6 P0667X0403 CONTROL PANEL 403-1 P0667X0403-1 SPINDLE SPEED READOUT 403-2 P0667X0403-2 EMERGENCY STOP SWITCH 403-3 P0667X0403-3 MOTOR START SWITCH REF PART # DESCRIPTION...
  • Page 8 Ram Breakdown & Parts List REF PART # DESCRIPTION PSB31M CAP SCREW M8-1.25 X 25 P0667X0502 DOWEL PIN 8 X 30 P0667X0503 GEAR 33T P0667X0115 RIVET P0667X0505 SCALE P0667X0506 RAM ADAPTER P0667X0507 INDICATOR PLATE P0667X0508 WORM THRUST WASHER P0667X0509 UPPER WORM LOCK COLLAR PSS02M SET SCREW M6-1 X 6 PK36M...
  • Page 9 Column, Knee & Saddle Breakdown...
  • Page 10 Column, Knee & Saddle Parts List REF PART # DESCRIPTION P0667X0601 COLUMN P0667X0115 RIVET P0667X0603 INDICATOR PLATE P0667X0604 COOLANT PUMP COVER PS09M PHLP HD SCR M5-.8 X 10 PSS49 SET SCREW 1/2-20 X 1/2 PS40M PHLP HD SCR M5-.8 X 16 PW02M FLAT WASHER 5MM PSB11M...
  • Page 11 Table Breakdown...
  • Page 12 REF PART # DESCRIPTION PN01 HEX NUT 1/2-20 P0667X0702 HANDLE P0667X0703 BALL CRANK HANDLE P0667X0704 DIAL RETAINER P0667X0705 GRADUATED DIAL P0667X0706 DIAL SLEEVE PSB01M CAP SCREW M6-1 X 16 P0667X0708 BEARING RETAINER RING P6204 BALL BEARING 6204ZZ PRP05M ROLL PIN 5 X 30 PSB14 CAP SCREW 3/8-16 X 1 P0667X0712...

  • Page 13: Accessories Breakdown & Parts List

    Accessories Breakdown & Parts List REF PART # DESCRIPTION P0667X0812 WAY COVER REAR P0667X0813 WAY COVER FRONT P0667X0814 TOOL BOX P0667X0815 HEX WRENCH SET 1.5–10MM P0667X0816 FREQ DRIVE INSTRUCTION MANUAL P0667X0817 LUBRICATION SQUEEZE BOTTLE REF PART # DESCRIPTION P0667X0818 POWER FEED OPERATION MANUAL P0667X0819 OPEN END WRENCH 12/14MM P0667X0820...
  • Page 14 Electrical Cabinet Breakdown...
  • Page 15 Electrical Cabinet Parts List REF PART # DESCRIPTION P0667X0901 ELECTRICAL CABINET PANEL 901-1 PSB15M CAP SCREW M5-.8 X 20 P0667X0902 FREQUENCY DRIVE VS-606-V7 P0667X0903 FUSE HOLDER 3-POS P0667X0904 FUSE 20A P0667X0905 CONTACTOR RIKEN 09T10 P0667X0906 AUX CONTACTOR RIKEN RA1-T20 P0667X0907 RELAY OMRON MY4J 24V 907-1 P0667X0907-1 CONTROL RELAY SOCKET PYF-14A P0667X0905...
  • Page 16 Coolant System Breakdown & Parts List REF PART # DESCRIPTION 1201 PSB02M CAP SCREW M6-1 X 20 1202 PW03M FLAT WASHER 6MM 1203 P0667X1203 COOLANT PUMP 1/8HP 220V 1-PH 1204 P0667X1204 HOSE FITTING 1205 P0667X1205 HOSE CLAMP 3/4" 1206 P0667X1206 HOSE 1/2"...

  • Page 17: Label Placement & List

    MUST maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact Grizzly at (800) 523-4777 or www.grizzly.com to order new labels. REF PART #...
