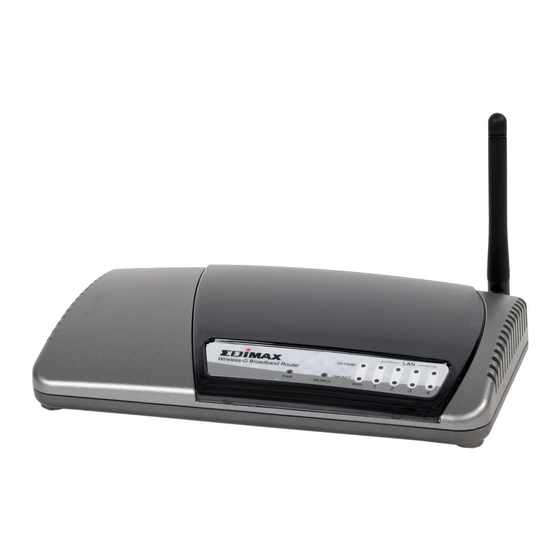

Edimax BR-6114WG User Manual

Wireless broadband router
Hide thumbs Also See for BR-6114WG:
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Broadband Router
BR-6114WG
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR-6114WG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax BR-6114WG

Summary of Contents for Edimax BR-6114WG

  • Page 1 Wireless Broadband Router BR-6114WG User’s Manual...

  • Page 2: Table Of Contents

    Introduction .................. 4 Features ..................4 Minimum Requirements .............. 4 Package Content ................4 Note ....................4 Get to know the Broadband Router..........5 Back Panel ..................5 Front Panel..................6 Setup Diagram ................7 Getting started ................8 Chapter 1 ..................16 Quick Setup .................
  • Page 3 2.4 Wireless.................. 42 2.4.1 Basic Settings..............43 Active Wireless Client Table 2.4.2 Advanced Settings.............. 50 2.4.3 Security ................52 2.5 NAT..................61 2.5.1 Port Forwarding ..............63 2.5.2 Virtual Server..............65 2.5.3 Special Applications............68 2.5.4 UPnP ................. 688 2.5.5 ALG Settings ..............62 2.6 Firewall ..................

  • Page 4: Introduction

    Introduction Congratulations on purchasing this Wireless Broadband Router. This Wireless Broadband Router is a cost-effective IP Sharing Router that enables multiple users to share the Internet through an ADSL or cable modem. Simply configure your Internet connection settings in the Wireless Broadband Router and plug your PC to the LAN port and you're ready to share files and access the Internet.

  • Page 5: Get To Know The Broadband Router

    Get to know the Broadband Router Back Panel The diagram (fig1.0) below shows the broadband router’s back panel. The router’s back panel is divided into three sections, LAN, WAN and Reset: Figure 1.0 1) Local Area Network (LAN) The Broadband router’s 4 LAN ports are where you connect your LAN’s PCs, printer servers, hubs and switches etc.

  • Page 6: Front Panel

    Front Panel On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of each LED and its description. Light Status Description Router’s power supply is on WAN 10/100M WAN port 100Mbps is connected WAN port 10Mbps is connected WAN LNK/ACT WAN is connected...

  • Page 7: Setup Diagram

    Setup Diagram Figure 1.2 below shows a typical setup for a Local Area Network (LAN). Figure 1.2...

  • Page 8: Getting Started

    Getting started This is a step-by-step instruction on how to start using the router and get connected to the Internet. 1) Setup your network as shown in the setup diagram above (fig 1.2). You then need to set your LAN PC clients so that it can obtain an IP address automatically. All LAN clients require an IP address.
  • Page 9 8: Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3 2b) Windows XP 1: Click the Start button and select Settings, then click Network Connections.
  • Page 10 5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN. Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
  • Page 11 automatically and Obtain DNS server address automatically as shown on the following screen. 6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server. Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.
  • Page 12 button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation. 5: After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of Network Protocols and then click the Properties button. 6: Check each of the tabs and verify the following settings: •...
  • Page 13 3) Once you have configured your PCs to obtain an IP address automatically, the router’s DHCP server will automatically give your LAN clients an IP address. By default the Broadband Router’s DHCP server is enabled so that you can obtain an IP address automatically.
  • Page 14 can just configure the General Setup section, since the General Setup/WAN and the Quick Setup Wizard contain the same configurations. Status Information (Chapter 3) The Status Information section is for you to monitor the router’s current status information only. Tools (Chapter 4) If you want to Reset the router (because of problems) or save your configurations or upgrade the firmware then the Tools section is the place to do this.
  • Page 15 Access Control, Hacker Attack Prevention, DMZ, Special applications and other functions to meet your LAN requirements. Status Information (Chapter 3) In this section you can see the Broadband router's system information, Internet Connection, Device Status, Security Log and DHCP client Log information.

  • Page 16: Chapter 1

    Chapter 1 Quick Setup The Quick Setup section is designed to get you using the broadband router as quick as possible. In the Quick Setup you are required to fill in only the information necessary to access the Internet. Once you click on the Quick Setup Wizard in the HOME page, you should see the screen below. Step 1) Time Zone The Time Zone allows your router to base its time on the settings configured here, this will affect functions such as Log entries and Firewall settings.

  • Page 17: Step 2) Broadband Type

    Enable Daylight Savings The router can also take Daylight savings into account. If you wish to use this function, you must check/tick the enable box to enable your daylight saving configuration (below). Start Daylight Savings Time Select the period in which you wish to start daylight Savings Time End Daylight Savings Time Select the period in which you wish to end daylight...
  • Page 18 Menu Description 1.1 Cable Modem Your ISP will automatically give you an IP address 1.2 Fixed-IP xDSL Your ISP has given you an IP address already 1.3 PPPoE Your ISP requires you to use a Point-to-Point Protocol over Ethernet (PPPoE) connection. 1.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling Protocol (PPTP) connection.

  • Page 19: Cable Modem

    1.1 Cable Modem Choose Cable Modem if your ISP will automatically give you an IP address. Some ISP’s may also require that you fill in additional information such as Host Name and MAC address (see screen below). Note: The Host Name and MAC address section is optional and you can skip this section if your ISP does not require these settings for you to connect to the Internet.

  • Page 20: Fixed-Ip Xdsl

    1.2 Fixed-IP xDSL Select Fixed-IP xDSL if your ISP has given you a specific IP address for you to use. Your ISP should provide all the information required in this section. Parameters Description This is the IP address that your ISP has given you. Gateway IP This is the ISP’s IP address gateway This is the ISP’s DNS server IP address...

  • Page 21: Pppoe

    1.3 PPPoE Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description User Name Enter the User Name provided by your ISP for the PPPoE connection Password Enter the Password provided by your ISP for the PPPoE...
  • Page 22 Connection Type If you select “Continuous”, the router will always connect to the ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP. If you select “Connect On Demand”, the router will auto- connect to the ISP when someone want to use the Internet and keep connected until the WAN idle timeout.

  • Page 23: Pptp

    1.4 PPTP Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Parameter Description Obtain an IP address The ISP requires you to obtain an IP address by DHCP automatically before connecting to the PPTP server.
  • Page 24 Subnet Mask Enter the Subnet Mask provided by your ISP (e.g. 255.255.255.0) Gateway Enter the IP address of the ISP Gateway User ID Enter the User Name provided by your ISP for the PPTP connection. Sometimes called a Connection ID Password Enter the Password provided by your ISP for the PPTP connection...
  • Page 25 Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the PPTP connection. You can start using the router now, if you wish to use some of the advance features supported by this router see chapter 2, 3, 4.

  • Page 26: Chapter 2

    Chapter 2 General Settings Once you click on the General Setup button at the Home Page, you should see the screen below. If you have already configured the Quick Setup Wizard you do NOT need to configure anything thing in the General Setup screen for you to start using the Internet. The General Setup contain advanced features that allow you to configure the router to meet your network’s needs such as: Wireless, Bridge, Address Mapping, Virtual Server, Access Control,...
  • Page 27 Below is a general description of what advance functions are available for this broadband router. Menu Description 2.1 System This section allows you to set the Broadband router’s system Time Zone, Password and Remote Management Administrator. 2.2 WAN This section allows you to select the connection method in order to establish a connection with your ISP (same as the Quick Setup Wizard section) 2.3 LAN...

  • Page 28: System

    2.1 System The system screen allows you to specify a time zone, to change the system password and to specify a remote management user for the broadband router. Parameters Description System Settings 2.1.1 Time Zone Select the time zone of the country you are currently in. The router will set its time based on your selection.

  • Page 29: Password Settings

    Parameter Description Set Time Zone Select the time zone of the country you are currently in. The router will set its time based on your selection. Enable Daylight Savings The router can also take Daylight savings into account. If you wish to use this function, you must check/tick the enable box to enable your daylight saving configuration (below).

  • Page 30: Remote Management

    Parameters Description Current Password Enter your current password for the remote management administrator to login to your Broadband router. Note: By default there is NO password New Password Enter your new password Re-Enter Password Enter your new password again for verification purposes for Verification Note: If you forget your password, you’ll have to reset the router to the factory default (No password) with the reset button (see...
  • Page 31 Parameters Description Host Address This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site. This means if you are at home and your home IP address has been designated the Remote Management host IP address for this router (located in your company office), then you are able to configure this router from your home.
  • Page 32 Port The port number of remote management web interface. Enabled Select “Enabled” to enable the remote management function. Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place)

  • Page 33: Wan

    2.2 WAN Use the WAN Settings screen if you have already configured the Quick Setup Wizard section and you would like to change your Internet connection type. The WAN Settings screen allows you to specify the type of WAN port connect you want to establish with your ISP. In the WAN Settings screen you can also specify the router to act as a Bridge.

  • Page 34: Dynamic Ip

    Once you have made a selection, click <More Configuration> at the bottom of the screen and proceed to the manual’s relevant sub-section 2.2.1 Dynamic IP Choose the Dynamic IP selection if your ISP will automatically give you an IP address. Some ISP’s may also require that you fill in additional information such as Host Name, Domain Name and MAC address (see chapter 1 “Cable Modem”...
  • Page 35 Parameter Description Obtain an IP address The ISP requires you to obtain an IP address by DHCP automatically before connecting to the L2TP server. Use the following IP address The ISP give you a static IP to be used to connect to the L2TP server.
  • Page 36 Connection Type If you select “Continuous”, the router will always connect to the ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP. If you select “Connect On Demand”, the router will auto- connect to the ISP when someone want to use the Internet and keep connected until the WAN idle timeout.

  • Page 37: Telstra Big Pond

    2.2.6 Telstra Big Pond Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Telstra Big Pond protocol is used by the ISP in Australia. Parameter Description User Name...

  • Page 38: Dns

    2.2.7 DNS A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as www.router.com, a DNS server will find that name in its index and the matching IP address. Most ISPs provide a DNS server for speed and convenience.

  • Page 39: Ddns

    2.2.8 DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS and TZO. Parameters Default Description Enable/Disable Disable...

  • Page 40: Lan

    2.3 LAN The LAN Port screen below allows you to specify a private IP address for your router’s LAN ports as well as a subnet mask for your LAN segment. Parameters Default Description LAN IP IP address 192.168.2.1 This is the router’s LAN port IP address (Your LAN clients default gateway IP address) IP Subnet Mask 255.255.255.0...
  • Page 41 802.1d Spanning Tree Disabled If 802.1d Spanning Tree function is enabled, this router will use the spanning tree protocol to prevent from network loop happened in the LAN ports. DHCP Server Enabled You can enable or disable the DHCP server. By enabling the DHCP server the router will automatically give your LAN clients an IP address.

  • Page 42: Wireless

    2.4 Wireless Wireless Access Point builds a wireless LAN and can let all PCs equipped with IEEE 802.11g or 802.11b wireless network adaptor connect to your Intranet. It supports WEP encryption to enhance the security of your wireless network. Parameters Default Description Enable or disable...

  • Page 43: Basic Settings

    2.4.1 Basic Settings This wireless router supports AP, Bridge and WDS modes. "AP Mode" provides pure access point function. The simplest way to build up a wireless LAN is to use "AP Mode". "AP Bridge Mode" provides the function to bridge more than 2 wired Ethernet networks together by wireless LAN.
  • Page 44 Channel Number The channel used by the wireless LAN. All devices in the same wireless LAN should use the same channel. Associated Clients Click "Show Active Clients" button, then a "Active Wireless Client Table" will pop up. You can see the status of all active wireless stations that are connecting to the access point.
  • Page 45 AP Bridge-WDS mode setting page...
  • Page 46 Parameter Description ESSID The ESSID (up to 31 printable ASCII characters) is the unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs. Please make sure that the ESSID of all stations in the same WLAN network are the same. The default ESSID is “default”. You should assign Alias Name in “AP mode”, “Station-Ad Hoc mode”, “Station-Infrastructure mode”...
  • Page 47 will pop up. You can see the status of all active wireless stations that are connecting to the access point. Set Security Click “Set Security” to set up the WEP encryption used for the communication between all access points or wireless routers that join the bridging job.

  • Page 48: Active Wireless Client Table

    Key Format You may select to select ASCII Characters (alphanumeric format) or Hexadecimal Digits (in the "A- F", "a-f" and "0-9" range) to be the WEP Key. For example: ASCII Characters: guest Hexadecimal Digits: 12345abcde Default Tx Key: Select one of the four keys to encrypt your data. Only the key you select it in the "Default key"...
  • Page 49 Parameters Default Description MAC Address MAC address of this active wireless station. Tx Packet The number of transmitted packets that are sent out from this active wireless station. Rx Packet The number of received packets that are received by this active wireless station. TX Rate The transmission rate in Mbps.

  • Page 50: Advanced Settings

    2.4.2 Advanced Settings You can set advanced wireless LAN parameters of this router. The parameters include Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Preamble Type …… You should not change these parameters unless you know what effect the changes will have on this router. Parameters Default Description...
  • Page 51 RTS Threshold When the packet size is smaller the RTS threshold, the wireless router will not use the RTS/CTS mechanism to send this packet. Beacon Interval The interval of time that this wireless router broadcast a beacon. Beacon is used to synchronize the wireless network.

  • Page 52: Security

    2.4.3 Security By using Encryption, the data will be transmitted securely over the wireless network. You have to setup the same encryption key both on your router and wireless client devices. Parameters Default Description WEP Mode Disabled You can select the WEP key length for encryption, 64-bit, 128-bit or 152-bit.
  • Page 54 Parameters Default Description Key Format You may select to select ASCII Characters (alphanumeric format) or Hexadecimal Digits (in the "A-F", "a-f" and "0-9" range) to be the WEP Key. For example: ASCII Characters: guest Hexadecimal Digits: 12345abcde Key Length You may disable or enable the WEP function from the setting item.
  • Page 55 128-bit WEP: input 26-digit Hex values (in the "A-F", "a-f" and "0-9" range) or 10-digit ASCII characters as the encryption keys. Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place) 802.1x IEEE 802.1x is an authentication protocol.

  • Page 56: X Wep Static Key

    The service port of the external RADIUS server. RADIUS Server Port The password used by external RADIUS server. RADIUS Server Password Click Apply button at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the Access Point. 802.1x WEP static key IEEE 802.1x is an authentication protocol.
  • Page 57 The WEP keys are used to encrypt data transmitted in the wireless Key 1 - Key 4 network. Fill the text box by following the rules below. 64-bit WEP: input 10-digit Hex values (in the “A-F”, “a-f” and “0-9” range) or 5-digit ASCII character as the encryption keys.
  • Page 58 Parameter Description TKIP can change the encryption key frequently to enhance the wireless TKIP LAN security. AES is an efficient and highly secure encryption algorithm that can enhance the wireless LAN security very much. You may select to select ASCII Characters (alphanumeric format) or Key Format Hexadecimal Digits (in the “A-F”, “a-f”...
  • Page 59 Parameter Description TKIP TKIP can change the encryption key frequently to enhance the wireless LAN security. AES is an efficient and highly secure encryption algorithm that can enhance the wireless LAN security very much. RADIUS Server IP address The IP address of external RADIUS server. The service port of the external RADIUS server.
  • Page 60 2.4.4 Access Control This wireless router provides MAC Address Control, which prevents the unauthorized MAC Addresses from accessing your wireless network. Parameters Description Enable wireless access control Enable wireless access control Add MAC address into the list Fill in the "MAC Address" and "Comment" of the wireless station to be added and then click "Add".

  • Page 61: Nat

    2.5 NAT Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.
  • Page 62 and others. In this section you can configure the router to support these types of applications. 2.5.4 UPnP UPnP is more than just a simple extension of the Plug and Play peripheral model. It is designed to support zero-configuration, "invisible" networking, and automatic discovery for a breadth of device categories from a wide range of vendors.

  • Page 63: Port Forwarding

    2.5.1 Port Forwarding The Port Forwarding allows you to re-direct a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address. It help you to host some servers behind the router NAT firewall. Parameter Description Enable Port Forwarding Enable Port Forwarding...
  • Page 64 click "Add". Then this Port Forwarding setting will be added into the "Current Port Forwarding Table" below. If you find any typo before adding it and want to retype again, just click "Clear" and the fields will be cleared. Remove Port Forwarding into the table If you want to remove some Port Forwarding settings from the "...

  • Page 65: Virtual Server

    2.5.2 Virtual Server Use the Virtual Server function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type.
  • Page 66 Public Port Enter (service/Internet application) the service port number from the Internet that will be re-directed to the above Private IP address host in your LAN Note: Virtual Server function will have priority over the DMZ function if there is a conflict between the Virtual Server and the DMZ settings.

  • Page 68: Special Applications

    2.5.3 Special Applications Some applications require multiple connections, such as Internet games, video conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Parameters Description Enable Trigger Port Enable the Special Application function.
  • Page 69 Comment The description of this setting. Popular applications This section lists the more popular applications that require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-10) in the Copy to selection box and then click the Copy to button.

  • Page 70: Upnp

    2.5.4 UPnP UPnP can automatic discovery for a breadth of device categories from a wide range of vendors. With UPnP, a device can dynamically join a network, obtain an IP address, convey its capabilities, and learn about the presence and capabilities of other devices-all automatically; truly enabling zero configuration networks.
  • Page 71 Figure 1 Figure2...

  • Page 72: Alg Settings

    2.5.5 ALG Settings You can select applications that need “Application Layer Gateway” to support. Parameters Default Description Enable You can select to enable “Application Layer Gateway”, then the router will let that application correctly pass though the NAT gateway. Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advance settings in place)

  • Page 73: Firewall

    2.6 Firewall The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).

  • Page 74: Access Control

    2.6.1 Access Control If you want to restrict users from accessing certain Internet applications/services (e.g. Internet websites, email, FTP etc.), then this is the place to set that configuration. Access Control allows users to define the traffic type permitted in your LAN. You can control which PC client can have access to these services.
  • Page 75 Add PC Fill in “Client PC MAC Address” and “Comment” of the PC that is allowed to access the Internet, and then click “Add”. If you find any typo before adding it and want to retype again, just click "Reset" and the fields will be cleared. Remove PC If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove...
  • Page 76 Client PC Description The description for this client PC rule. Client PC IP Addresses Enter the IP address range that you wish to apply this Access Control rule. This is the user’s IP address(es) that you wish to setup an Access Control rule. You can select a range of users simply by inputting the starting users’...
  • Page 77 Example: Access Control In the example below, LAN client A can only access websites that use Port 80. However, LAN client B is able to access websites and any other service that uses ports between 80 and 999.

  • Page 78: Url Blocking

    2.6.2 URL Blocking You can block access to some Web sites from particular PCs by entering a full URL address or just keyword of the Web site. Parameters Description Enable URL Blocking Enable/disable URL Blocking Add URL Keyword Fill in “URL/Keyword” and then click “Add”. You can enter the full URL address or the keyword of the web site you want to block.
  • Page 79 You can now configure other advance sections or start using the router (with the advance settings in place)

  • Page 80: Hacker Prevention

    2.6.3 Hacker Prevention The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. Parameters Description Intrusion Detection Feature Ping of Death Protections from Ping of Death attack Discard Ping From WAN The router’s WAN port will not respond to any...

  • Page 81: Dmz

    2.6.4 DMZ If you have a local client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN.
  • Page 82 Note: You need to give your LAN PC clients a fixed/static IP address for DMZ to work properly. You can now configure other advance sections or start using the router (with the advance settings in place)

  • Page 83: Chapter 3

    Chapter 3 Status The Status section allows you to monitor the current status of your router. You can use the Status page to monitor: the connection status of the Broadband router's WAN/LAN interfaces, the current firmware and hardware version numbers, any illegal attempts to access your network, and information on all DHCP client PCs currently connected to your network.

  • Page 84: Status And Information

    3.1 Status and Information The Status and Information section allows you to view the router’s system information Parameters Description Information You can see the router’s system information such as the router’s: LAN MAC Address, WAN MAC Address, Hardware version, Serial Number, Boot code Version, Runtime code Version...

  • Page 85: Internet Connection

    3.2 Internet Connection View the Broadband router’s current Internet connection status and other related information Parameters Description Internet Connection This page displays whether the WAN port is connected to a Cable/DSL connection. It also displays the router’s WAN port: WAN IP address, Subnet Mask, and ISP Gateway as well as the Primary DNS and Secondary DNS being used.

  • Page 86: Device Status

    3.3 Device Status View the Broadband router’s current configuration settings. The Device Status displays the configuration settings you’ve configured in the Quick Setup Wizard/General Setup section. Parameters Description Device Status This page shows the Broadband router’s current device settings. This page displays the Broadband router LAN port’s current LAN IP Address and Subnet Mask.

  • Page 87: Security Log

    3.4 Security Log View any attempts that have been made to illegally gain access to your network. Parameters Description Security Log This page shows the current security log of the Broadband router. It displays any illegal attempts to access your network. At the bottom of the page, the security log can be saved <Save>...

  • Page 88: Active Dhcp Client Table

    3.5 Active DHCP Client Table View your LAN client's information that is currently linked to the Broadband router's DHCP server Parameters Description DHCP Client Log This page shows all DHCP clients (LAN PCs) currently connected to your network. The “Active DHCP Client Table” displays the IP address and the MAC address and Time Expired of each LAN Client.

  • Page 89: Statistics

    3.6 Statistics View the statistics of packets sent and received on WAN, LAN and Wireless LAN. Parameters Description Statistics Shows the counters of packets sent and received on WAN, LAN and Wireless LAN.

  • Page 90: Chapter 4

    Chapter 4 Tool This page includes the basic configuration tools, such as Configuration Tools (save or restore configuration settings), Firmware Upgrade (upgrade system firmware) and Reset. Parameters Description 4.1 Configuration Tools You can save the router’s current configuration, restore the router’s saved configuration files and restore the router’s factory default settings 4.2 Firmware Upgrade...

  • Page 91: Configuration Tools

    4.1 Configuration Tools The Configuration Tools screen allows you to save (Backup) the router’s current configuration setting. Saving the configuration settings provides an added protection and convenience should problems occur with the router and you have to reset to factory default. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection.

  • Page 92: Firmware Upgrade

    4.2 Firmware Upgrade This page allows you to upgrade the router’s firmware Parameters Description Firmware Upgrade This tool allows you to upgrade the Broadband router’s system firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page.

  • Page 93: Reset

    4.3 Reset You can reset the router’s system should any problem exist. The reset function essentially Re-boots your router’s system Parameters Description Reset In the event that the system stops responding correctly or in some way stops functioning, you can perform a reset. Your settings will not be changed.

  • Page 94: Appendix A

    Appendix A How to Manually find your PC’s IP and MAC address 1) In Window’s open the Command Prompt program 2) Type Ipconfig /all and <enter> • Your PC’s IP address is the one entitled IP address (192.168.1.77) • The router’s IP address is the one entitled Default Gateway (192.168.1.254) •...

  • Page 95: Glossary

    Glossary Bridge: A bridge is an intelligent, internetworking device that forwards or filters packets between different networks based on data link layer (MAC) address information. Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination.
  • Page 96 ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for the Internet router located at the ISP's office. ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.
  • Page 97 Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the Internet, which must be assigned by InterNIC).
