- Page 1 BR-6428nS V2 BR-6428nC Quick Installation Guide 09-2013 / v1.1 ...
-
Page 2: Package Contents

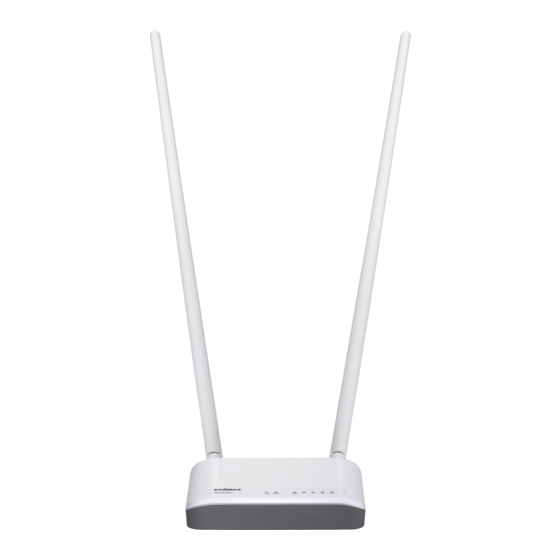

Package Contents Before you start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): BR‐6428nS V2 Power Adapter or BR‐6428nC (5dBi Antenna x 2) (9dBi Antenna x 2) Ethernet Cable Quick Installation Guide CD‐ROM 1 ... -
Page 3: Installation
Installation Plug the included power adapter into the device’s 5V DC power port and the other end into an electrical socket. Ensure that the power LED is lit. If not, the device is not properly connected. Use a Wi‐Fi device (e.g. computer, tablet, smartphone) to search for a Wi‐Fi network with the SSID “edimax.setup” and connect to it. iOS 4 or Android 4 and above are required for setup on a smartphone or tablet. Open a web browser and if you do not automatically arrive at the “Get Started” screen shown below, enter the URL http://edimax.setup and click “Get Started” to begin the setup process. 2 ... - Page 4 If you cannot access http://edimax.setup, please make sure your computer is set to use a dynamic IP address. This is a simple procedure and step‐by‐step instructions can be found in the user manual. Select a mode for your BR‐6428nS V2/nC and click “Next” to continue. 3 ...
- Page 5 Wi‐Fi Router The device connects to your modem and enables Internet (wireless and Ethernet) access on your network devices. Access Point The device connects to an existing router via Ethernet cable and provides Internet (wireless and Ethernet) access for your network devices. Range Extender The device connects wirelessly to your existing network and repeats the wireless signal. Follow the on‐screen instructions to complete setup. For more information, please refer to the user manual. 4 ...
-
Page 6: Browser Based Configuration Interface
Browser Based Configuration Interface After setup you can access the browser based configuration interface to configure or change the settings of the BR‐6428nS V2/nC. To access the browser based configuration interface, enter http://edimax.setup into the URL bar of a web browser on a network device which is connected to the BR‐6428nS V2/nC. If you can not access edimax.setup, connect the BR‐6428nS V2/nC to a computer using an Ethernet cable and try again. You will be prompted for a username and password. The default username is “admin” and the default password is “1234”. You will arrive at the “Status” screen shown below. Use the menu down the left side to navigate. For more information, refer to the user manual. 5 ... -
Page 7: Troubleshooting
Troubleshooting 1. In range extender mode, how do I connect to a network which has a hidden SSID? a. During iQ Setup select “Setup extender manually” as shown below. Manually enter the SSID of the hidden network, an SSID for your device and the encryption information for the hidden network. SSID Enter the SSID (network name) of your existing, hidden network. Device SSID Enter an SSID for the BR‐6428Ns V2/nC or leave it blank to use a default which consists of your existing router’s SSID (above) +"_2EX". Encryption Enter the encryption information for your existing, hidden network. 2. I can’t access the Internet. a. Ensure that all cables are connected properly. Try a different Ethernet cable. b. Check if you can access the web based configuration interface. If not, please ensure your computer is set to use a dynamic IP address. Refer to the user manual for guidance if you are unsure how to do this. c. Login to the web based configuration interface and go to Internet > WAN Setup and check that the connection type is correct. If you are unsure which internet connection type you have, please contact your Internet Service Provider (ISP). ... - Page 8 d. Connect your computer directly to your modem and check if you can access the internet. If you can’t, please contact your Internet service provider for assistance. 3. I can’t open the web based configuration interface. a. Please ensure your computer is set to use a dynamic IP address. Refer to the user manual for guidance if you are unsure how to do this. 4. How do I reset my device to factory default settings? a. To reset the device back to its factory default settings, press and hold the WPS/Reset button for over 10 seconds, until the power LED begins to flash. Please wait a few minutes for the product to restart. When the device restarts, all settings will be reset. Default settings are displayed on the product label on the back of the device, as shown below: 7 ...
-
Page 9: I Forgot My Password
Router Login Enter this URL in a web browser to run iQ Setup or configure advanced settings. You must be connected to the device by Wi‐Fi or Ethernet cable. Username/Password This is the default username and password to access the browser based configuration interface when you go to the “Router Login” URL (above). Wi‐Fi Network This is the default Wi‐Fi network name for the Name device. Search for this name (SSID) and connect to it in order to access the “Router Login” URL (above). MAC A MAC address is unique to every device and is used for identification within a network. Your device’s unique MAC address is displayed here. PIN CODE This is your device’s PIN code for Wi‐Fi Protected Setup (WPS). 5. I forgot my password. a. Reset the router to its factory default settings and use the default username admin and default password 1234. Default settings are displayed on the product label on the back of the device, as shown above. 6. My BR‐6428nS V2/nC has a weak wireless signal in range extender mode. a. Weak signals are usually caused by interference from other devices or obstacles blocking the BR‐6428nS V2/nC’s wireless signal: b. Keep the device away from other radio devices such as microwaves or wireless telephones. c. - Page 10 7. Do the WAN and LAN ports work the same when the device is in different modes? No, the WAN and LAN ports have slightly different functions depending on the operating mode of the device. a. In Wi‐Fi router mode, the WAN port is for a direct connection to your xDSL modem. The LAN ports are for wired network clients. b. In access point mode, the WAN port is not functional. Connect your existing router to the device’s LAN port, and the other LAN ports can connect wired network clients. c. In range extender mode, the WAN port is not functional and the LAN ports are for wired network clients. Do not connect your existing router to the device’s WAN or LAN ports, as this can cause the device to malfunction. 9 ...
- Page 11 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This device and its antenna must not be co‐located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 2.5cm (1 inch) during normal operation. Federal Communications Commission (FCC) RF Exposure Requirements This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1‐1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. The equipment version marketed in US is restricted to usage of the channels 1‐11 only. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. ...
- Page 12 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2009/125/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1999/5/CE, 2009/125/CE Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 1999/5/ES, 2009/125/ES. Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi Dyrektywą UE 1999/5/EC, 2009/125/EC Română: Acest echipament este în conformitate cu cerințele esențiale şi alte prevederi relevante ale Directivei 1999/5/CE, 2009/125/CE. Русский: Это оборудование соответствует основным требованиям и положениям Директивы 1999/5/EC, 2009/125/EC. Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek (1999/5/EK, 2009/125/EC) Türkçe: Bu cihaz 1999/5/EC, 2009/125/EC direktifleri zorunlu istekler ve diğer hükümlerle ile uyumludur. Українська: Обладнання відповідає вимогам і умовам директиви 1999/5/EC, 2009/125/EC. Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc 1999/5/ES, 2009/125/ES. ...
-
Page 13: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: N300 Multi‐Function Wi‐Fi Router Model No.: BR‐6428nS V2 / BR‐6428nC The following European standards for essential requirements have been followed: Directives 1999/5/EC Spectrum ETSI EN 300 328 V1.8.1 (2012-06); EN 301 489-1 V1.9.2 (2011-09); EN 301 489-17 V2.2.1 (2012-09); Safety (LVD) IEC 60950-1:2005 (2 Edition); Am1:2009 EN 60950-1:2006+A11:2009+A1:2010+A12:2011... - Page 14 Notice According to GNU General Public License Version 2 This product includes software that is subject to the GNU General Public License version 2. The program is free software and distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more than the costs of physically performing source distribution, a complete machine‐readable copy of the corresponding source code. Das Produkt beinhaltet Software, die den Bedingungen der GNU/GPL‐Version 2 unterliegt. Das Programm ist eine sog. „Free Software“, der Autor stellt das Programm ohne irgendeine Gewährleistungen zur Verfügung. Wir bieten Ihnen für einen Zeitraum von drei Jahren an, eine vollständige maschinenlesbare Kopie des Quelltextes der Programme zur Verfügung zu stellen – zu nicht höheren Kosten als denen, die durch den physikalischen Kopiervorgang anfallen. GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110‐1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software‐‐to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. ...
- Page 15 intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine‐readable source code, which must be distributed under ...
- Page 16 6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty‐free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and ‘“any later version’“, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. 10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the ...
