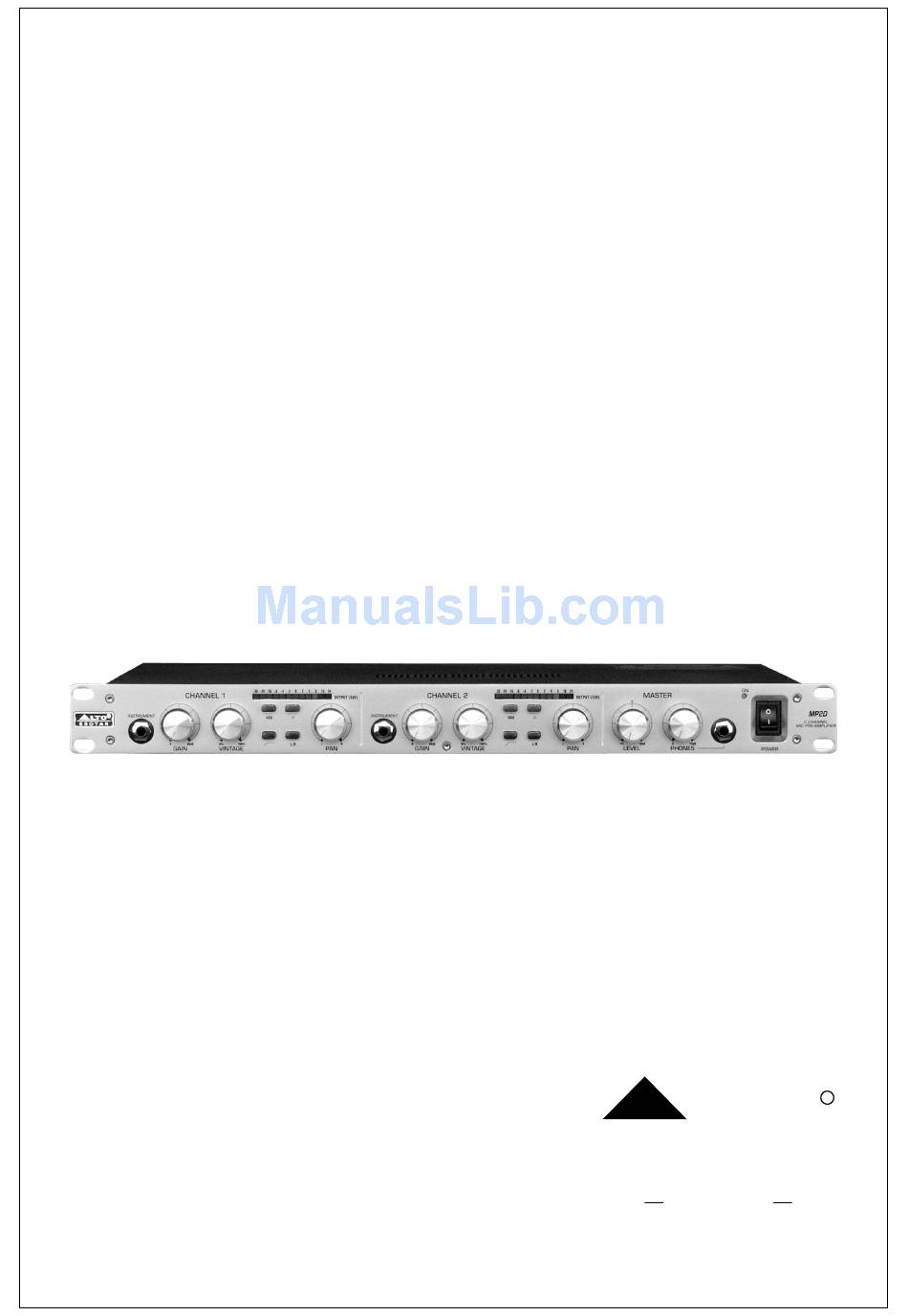

- Page 1 User's Manual MP2D TWO CHANNELS MICROPHONE / INSTRUMENT PREAMPLIFIER WITH STEREO BUS www.altoproaudio.com Version 1.1 November 2005 English English...
- Page 2 Fuse SAFETY RELATED SYMBOLS To prevent fire and damage to the product, use only the recommended fuse type as indicated in this CAUTION manual. Do not short-circuit the fuse holder. Before RISK OF ELECTRIC SHOCK DO NOT OPEN replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.
- Page 3 Nothing else to add, but that we would like to thank all the people that made the MP2D Two Channel Microphone /...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUC ION ..............................4 2. FEATURES.................................4 3. CONTROL ELEMENTS............................4 4. INSTALLATION AND CONNECTION........................7 5. BLOCK DIAGRAM..............................8 6. TECHNICAL SPECIFICATION..........................9 7. WARRANTY.................................10... -
Page 5: Introduc Ion T
"vintage" function to add warm, tube-like sounds to your mix. The MP2D includes a sophisticated 24 bit digital output interface with external / internal clock and AES / EBU and S/ PDIF connectors. We believe MP2D is your perfect choice for enhancing the performance of any console or digital audio workstation by providing two very high-end microphone preamplifiers. - Page 6 This 1/4" socket will send out the signal to a pair of headphones. The signal monitored by the headphones is the same signal provided by the stereo Bus to the Mix output XLR's on the rear panel of the MP2D.
- Page 7 Signals are assigned to these outputs using the L / R assign switches on the individual channels. SEND Connector This 1/4 inch socket is used to sent out the signal from the MP2D to external devices such as effects or sound processors.
-
Page 8: Installation And Connection
4.1 Mains Connection Please ensure that the MP2D is set to the correct supply voltage before plugging the power cord into the wall outlet, use the same fuse as marked on the fuse holder at the AC power connection. The mains connection of the MP2D is made by using the enclosed mains cord and a standard IEC receptacle. -
Page 9: Block Diagram
5. BLOCK DIAGRAM... -
Page 10: Technical Specification
The MP2D has a stereo summing bus for combining the input signals assigned Main L/R bus selection to the bus using the L/R function switch on the front panel of the MP2D INDICATORS 12 element LED display: -30/-24/-16/-8/-4/-2/0/2/4/8/16/24 dB. -
Page 11: Warranty
7. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service. - Page 12 No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151 Taiwan http://www.altoproaudio.com Tel: 886-4-22313737 email: alto@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden. Copyright 2005 SEIKAKU GROUP NF02205-1.1...
