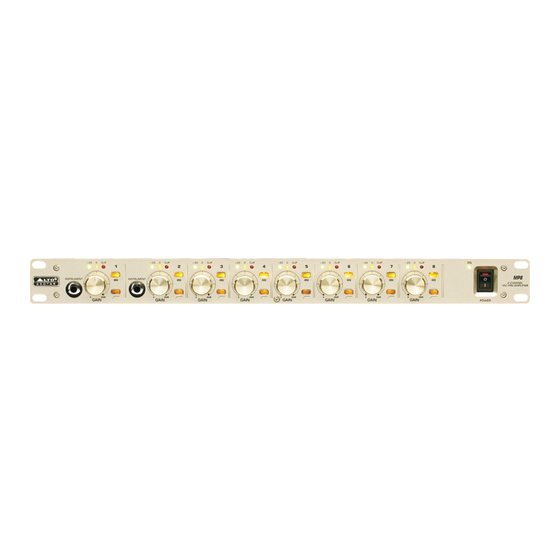

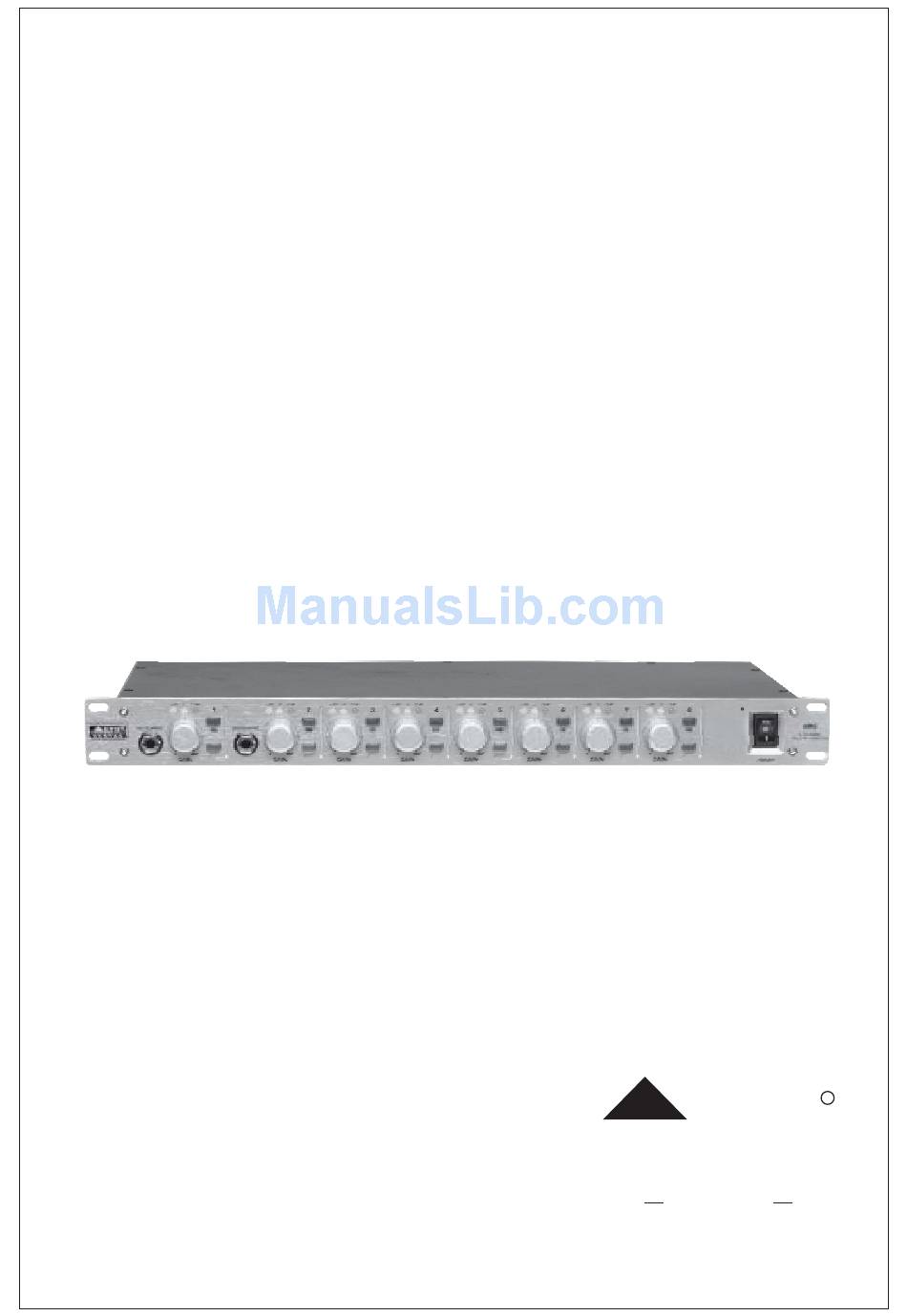

- Page 1 User's Manual EIGHT CHANNELS MICROPHONE/ INSTRUMENT PREAMPLIFIER www.altoproaudio.com Version 1.2 April 2006 English...
- Page 2 SAFETY RELATED SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol, wherever used, alerts you to the pre- sence of un-insulated and dangerous voltages with- in the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death.
- Page 3 Nothing else to add, but that we would like to thank all the people that made the MP8 Eight Channel Micro phone/...
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUC ION ...4 2. FEATURES..4 3. CONTROL ELEMENTS...4 4. INSTALLATION AND CONNECTION...6 5. BLOCK DIAGRAM...8 6. TECHNICAL SPECIFICATION...9 7. WARRANTY...10... -
Page 5: Introduc Ion T
These first 2 channels of our MP8 include high gain mic /line input with an integrated DI box feature. - Page 6 MP8. When the phantom power switch is engaged, the +48v power is supplied for condenser microphone. Insert The MP8 provides a stereo1/4" TRS socket for each channel. It can sent the analog signal out into signal path via a TRS connector. CH.8 CH.7...
-
Page 7: Installation And Connection
4.1 Mains Connection Please ensure that the MP8 is set to the correct supply voltage before plugging the power cord into the wall outlet, use the same fuse as marked on the fuse holder at the AC power connection. The mains connection of the MP8 is made by using the enclosed mains cord and a standard IEC receptacle. - Page 8 Please allow at least an additional 4" depth for the connectors on the rear panel. Be sure that there is enough air space around the unit for sufficient ventilation and please do not place the MP8 on high temperature devices such as power amplifiers etc. to avoid overheating.
-
Page 9: Block Diagram
5. BLOCK DIAGRAM... -
Page 10: Technical Specification
>128dBu, weighted, 22Hz to 22kHz <0.007% <-100dB, 22Hz to 22Khz True RMS detection Eight channel of the MP8 has 48V Phantom power available. >80Hz 3 element LED display: -20 / 0 / CLIP dB. LED indicator for each ~120VAC, 60Hz... -
Page 11: Warranty
7. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service. - Page 12 SE KAKU TECHNICAL GROUP LIMITED No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151 Taiwan http://www.altoproaudio.com Tel: 886-4-22313737 email: alto@altoproaudio.com Fax: 886-4-22346757 All rights reserved to ALTO. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden.
