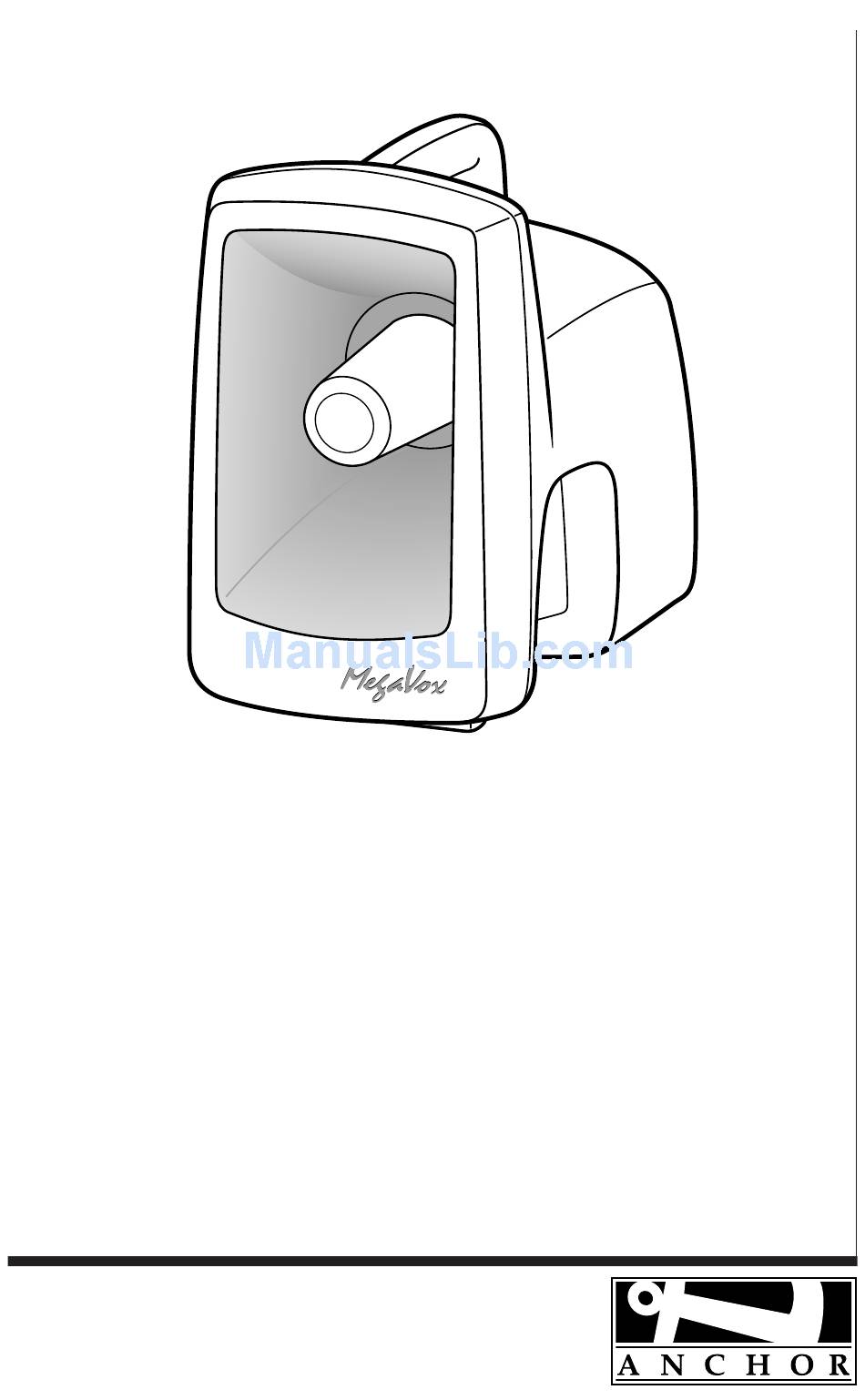

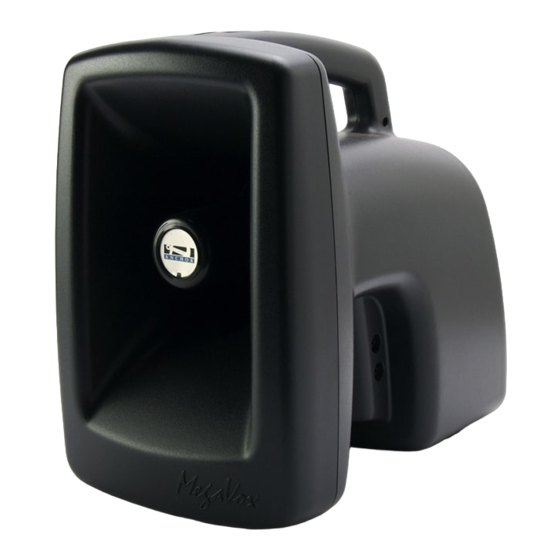

- Page 1 MEGA-6000 MEGA-6000U1 MEGA-6000U2 Owner’s Manual...
-
Page 2: Important Safeguards
(service) dans le livret d'instruction accompagnant l'appareil. DATE OF MANUFACTURE The date of manufacture of this Anchor Audio product can be determined by the eight digit serial number code. The fourth digit denotes the year, the third digit (letter) denotes the month (A=Jan, B=Feb, etc.) Example: "AWDO1432"... -
Page 3: Table Of Contents
Thank you for choosing an Anchor Audio portable sound system. Our products incorporate state-of- the-art design and the finest quality of materials and workmanship. We’re proud of our products and appreciate the confidence which you have shown by selecting an Anchor system. -
Page 4: Getting Started
Notify your dealer of the pending freight claim. Returning Systems For Service or Repair Should your unit require service, contact your dealer or the Anchor IMPORTANT: Save the Audio Customer Service Department at (800) 262-4671 to obtain a shipping Return Authorization (RA) number. -
Page 5: System Setup
3. Tighten the Lower Collar Knob. Lower Collar Knob 4. Extend the center pole by loosening the Upper Collar Knob. 5. Adjust the height and retighten the Upper Collar Knob. Cross Braces 6. Place the Anchor sound system on the stand. - Page 6 SYSTEM SETUP Single Unit Setup Place the unit along the aisle with the least amount of pedestrian traffic. Point the unit towards the center of the audience. Connect A MegaVox Pro Companion Speaker Use a speaker cable (SC-50) to connect Speaker Out on the primary NOTE: The line-out unit to the unpowered companion speaker (MEGA-6001).
-
Page 7: System Setup
SYSTEM SETUP Daisy-Chaining By using the Line Output method described above you can connect up to six powered MegaVox Pro PA Systems together expanding your coverage area. MegaVox Pro Daisy-Chain Daisy-Chain Setup To connect your MegaVox Pro units, use a shielded cable with 1/4” NOTE: Auditoriums phone plugs on each end (EX-50PP). -
Page 8: Precautions
PRECAUTIONS Feedback Feedback is a howling or shrill sound that is self-generated by the sound system. It is caused by microphone pickup of the sound emanating from the speaker and then being re-amplified. Once generated, this can be a self-sustaining phenomenon. Causes of Feedback •... -
Page 9: Battery Operation
BATTERY OPERATION Caring For Built-in Batteries It is very important that you fully charge the batteries in your system IMPORTANT: before first use and as soon as possible after each and every use, For longer battery life, even if operated only briefly to preserve battery life. always store your system When The Battery LED Flashes or Won’t Light... -
Page 10: General Operation
GENERAL OPERATION MegaVox Pro Control Panel 1. Set all input level controls to minimum before turning on the NOTE: Instructions power. for wireless 2. Plug a microphone into a Mic jack, or an audio source into operation can the Line-in jack. be found on 3. -
Page 11: General Operation
“daisy chain” another powered sound system to the MegaVox Pro for greater crowd coverage. Speaker Out Use the speaker output to drive Anchor’s model MEGA-6001 companion speaker (in addition to MegaVox Pro's built-in speakers) for greater output. When an external speaker is powered by the MegaVox Pro, battery service per charge will decrease considerably. -
Page 12: Wireless Operation
WIRELESS OPERATION Diversity Wireless by Anchor Audio Anchor Audio UHF wireless is a 16 channel, diversity wireless system that utilizes two independent antennae to receive signal. The diversity feature means that the receiver will process the stronger of the two antenna signals, effectively minimizing dropouts and interference from other transmitting sources. -
Page 13: Wireless Operation
WIRELESS OPERATION Wireless Microphone Operation NOTE: Both the receiver and microphone must be set to the same channel. When using a 1. If you are using a body-pack transmitter, insert the plug from dual wireless the mic into the jack marked MIC on the transmitter. unit, make sure each 2. -
Page 14: Accessories
ACCESSORIES MEGA-6001 Unpowered MegaVox Pro companion speaker SS-550 Heavy-duty brushed aluminum speaker stand HC-1650MV Custom travelling hardcase with built-in wheels & fold down handel VL-35 Vinyl storage slip cover RC-6000 Replacement AC charger/adapter MEGA-BAT Replacement battery WH-6000 Handheld wireless microphone/ transmitter WB-6000 Wireless body-pack transmitter (order mic separately) CM-60... -
Page 15: Specifications
SPECIFICATIONS MegaVox Pro Rated power output: 22 watts Max SPL @ rated power: 126 dB @ 1 meter Frequency response: 400 Hz - 10 kHz Inputs Line input: Hi-Z, unbalanced, 1/4"-phone Mic input 1: Lo-Z, unbalanced, 1/4"-phone (used for wireless on MEGA-6000U1) Mic input 2: Lo-Z, unbalanced, 1/4"-phone Outputs... -
Page 16: Troubleshooting Guide
• no mic plugged into belt-pack transmitter No sound (RX ON indicator off): • sound system not turned on • transmitter power switch turned off • low battery or no battery in transmitter ANCHOR Audio, Inc. (310) 784-2300 100-0058-000 / Revision D - 05/03...
