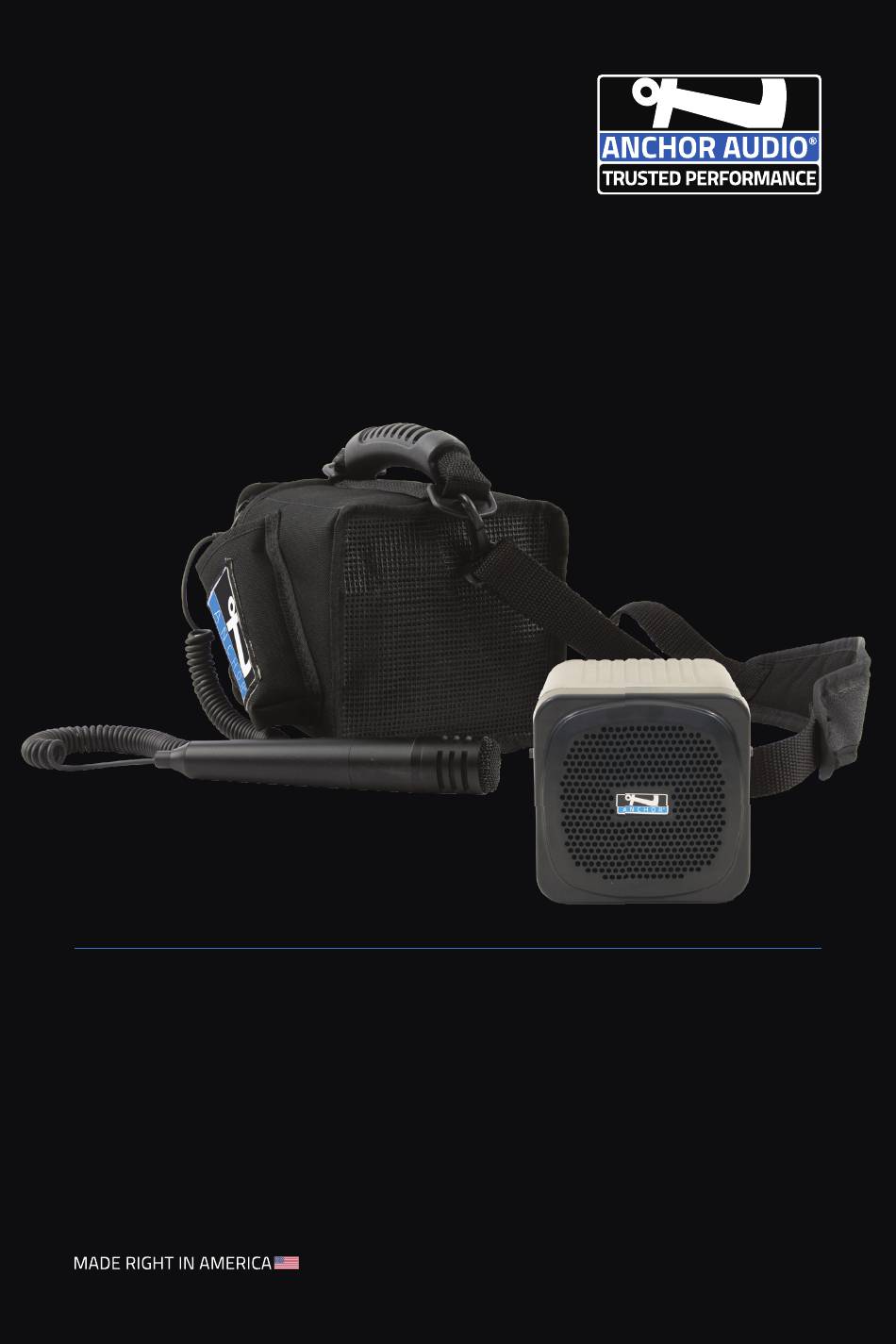

  • Page 1 M I N I OWNER’S MANUAL...

  • Page 2: Table Of Contents

    50 years of experience, our Engineering, Production, Sales, and Tech Support teams will provide you with the most reliable portable audio products and customer service. Welcome to the Anchor Audio family! Feel free to contact us at any time. We’d love to hear from you.

  • Page 3: Quick Look

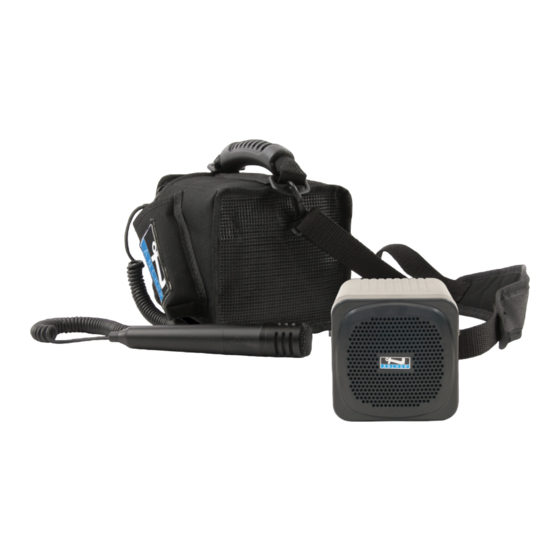

    The Mini is a wearable, ultra-lightweight PA solution. Weighing just 2.5 lbs, put this dynamo in its soft case for hands-free portability and take it anywhere. The Mini can be AC or bat- tery-powered for 100 dB of clear, present sound covering crowds of 100+. The Mini can play for 10-12 hours with a single charge on the battery, and that is a superpower.

  • Page 4: Return For Service Or Repair

    Return Merchandise Authorization (RMA) number. Once you ship your product back to Anchor Audio with the RMA number clearly noted on the box, we will diagnose and repair your unit and then ship it back to you. All products must be shipped prepaid.

  • Page 5: Before You Start

    It’s important to fully charge the speaker for six hours before its first use. If you notice some static the first time you use your Mini, the likely cause is the speaker not being fully charged. This will stop when you fully charge the unit.

  • Page 6: Back Panel

    BACK PANEL The back panel of the Mini with the dual wireless receiver and Bluetooth options. Made in the USA MIC BOOST Increases overall BLUETOOTH microphone volume POWER VOLUME INPUT INPUT Master Control Wired Accessories connect Wired laptops, audio devices...

  • Page 7: Battery Installation/Rechargeable Battery Kit

    1. Remove the battery compartment cover (located below the back panel of the Mini) by pressing down the lock tabs at the top of the cover. 2. Slide out the battery pack from the Mini battery compartment. Do not pull any wires attaching the battery pack to the speaker.

  • Page 8: Basic System Operation

    1. Connect a 3.5 mm (mini plug) to the line or headphone output of your audio source. 2. Connect the other end of the 3.5 mm (mini plug) to the Line In port on the Mini back panel. 3. Adjust the volume of the external audio source as needed using the controls on the external...

  • Page 9: Wireless Microphones

    USING YOUR ANCHOR AUDIO WIRELESS MICROPHONES The very first time you connect an Anchor Audio wireless microphone to your Mini, you will need to pair it. After the first time, your speaker will recognize the microphone automatically when you turn the microphone on.
  • Page 10 Unpair a belt pack microphone microphone 1. Start with the Mini turned on, and the VOL knob in the off position. (Turn the knob counter-clockwise until it stops.) 2. Press and hold the PAIRING button. 3. While holding the PAIRING button, turn the VOL knob clockwise.

  • Page 11: Anchorlink Frequently Asked Questions

    Q: Do I need to pair my microphone with my Anchor system for each use? A: You only need to pair your wireless microphone to your Mini the first time you use the microphone. After the first pairing, that microphone will always be paired to that speaker.

  • Page 12: Troubleshooting/Technical Specifications

    • Minimize obstructions between the system and wireless microphone Poor Wireless Range / • If wireless range continues to be poor, call Anchor Audio Poor Wireless Audio Quality Tech Support • Check battery level, charge battery, or plug in AC cord •...

  • Page 13: Additional Support

    If you need a member of our service team to assist, you can submit a support ticket here: https://www.anchoraudio.com/technical-support You can also reach Anchor Audio’s technical support team by phone at (800) 262-4671 x2 or email: techsupport@anchoraudio.com You may also find these videos helpful:...

  • Page 14: Safety Instructions

    European Union CE Mark European Union CE Mark The presence of the CE Mark on Anchor Audio equipment means that it has been designed, tested, and certified as complying with all applicable European Union (CE) regulations and recommendations.
  • Page 15 IMPORTANT SAFETY INSTRUCTIONS (cont.) Inspection for Damage Anchor Audio products are carefully packaged at the factory to minimize the possibil- ity of damage during shipping. Inspect the box for external signs of damage or mis- handling. Inspect the contents for damage. If there is visible damage to the instru- ment upon receipt, inform the shipping company and Anchor Audio immediately.
  • Page 16 IMPORTANT SAFETY INSTRUCTIONS (cont.) 1. Read Instructions – All the safety and operation instructions should be read before the product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
  • Page 17 IMPORTANT SAFETY INSTRUCTIONS (cont.) 12. Grounding or Polarization – This product may be equipped with a polarized alternating- cur- rent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
  • Page 18 IMPORTANT SAFETY INSTRUCTIONS (cont.) 21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled or objects have fallen into the product. c.

  • Page 19: Warranty

    BATTERIES PERIPHERALS Anchor Audio products are warranted to be free from defects in materials and workmanship for the period of SIX (6) YEARS from the date of original purchase unless listed below. Our Lithium-Ion Batteries have a FOUR (4) YEAR warranty.
  • Page 20 ANCHOR AUDIO RETURN AUTHORIZATION PROCEDURES • In all cases, dealers and end users must first obtain approval from Anchor Audio for any product they are attempting to return to Anchor Audio. Upon approval, a Return Merchandise Authorization (RMA) number will be issued by the Anchor Audio Customer Service Department and must accompany all products returned.
  • Page 21 CONTACT US 5931 Darwin Court Carlsbad, CA 92008 USA | anchoraudio.com Technical Suppor t Team 800.262.4671 x782 techsupport@anchoraudio.com Sales Team 800.262.4671 x772 sales@anchoraudio.com 100-0328-100 rev A...
