B
A
LADE
TTACHMENT
B
A
LADE
TTACHMENT
1. Place fiber washer on screw. Insert this assembly through the blade and start the screw into the blade arm. Repeat
this procedure without tightening the screw until all 3 screws have been started into the blade arm (Fig. 1).
NOTE: Fans that have painted finishes may be packed with gaskets that can be used between the blade arm and blade to
help prevent a clicking noise that may develop if blade screws loosen over time.
2. Tighten each screw starting with center screw.
3
Fasten blade assembly to motor with provided screws and metal lockwashers (Fig. 2). Repeat procedure for remain-
ing blades. Make sure screws are TIGHT! Loose motor screws can contribute to unnecessary hum and wobble dur-
ing operation.
NOTE: Cordless power screw-
drivers are NOT recommended, as
they tend to strip the heads of the
screws and usually will not fully
compress the spring washers on the
motor screws. Use a large flat blade
screwdriver for final tightening to
fully compress the spring washers.
This will help ensure proper align-
ment of the blades and noise-free,
wobble-free running.
:

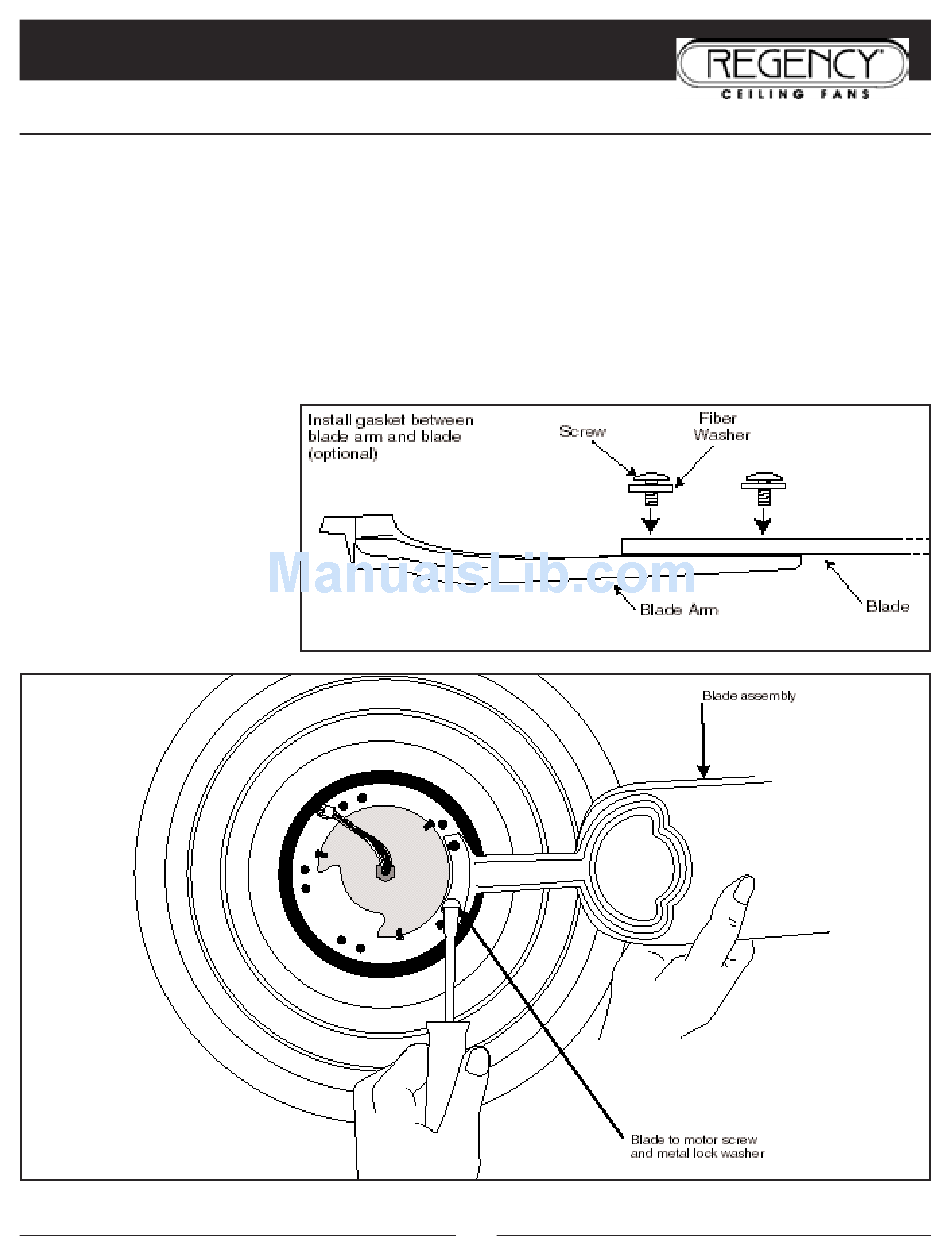

Fig. 1
8
Fig. 2
