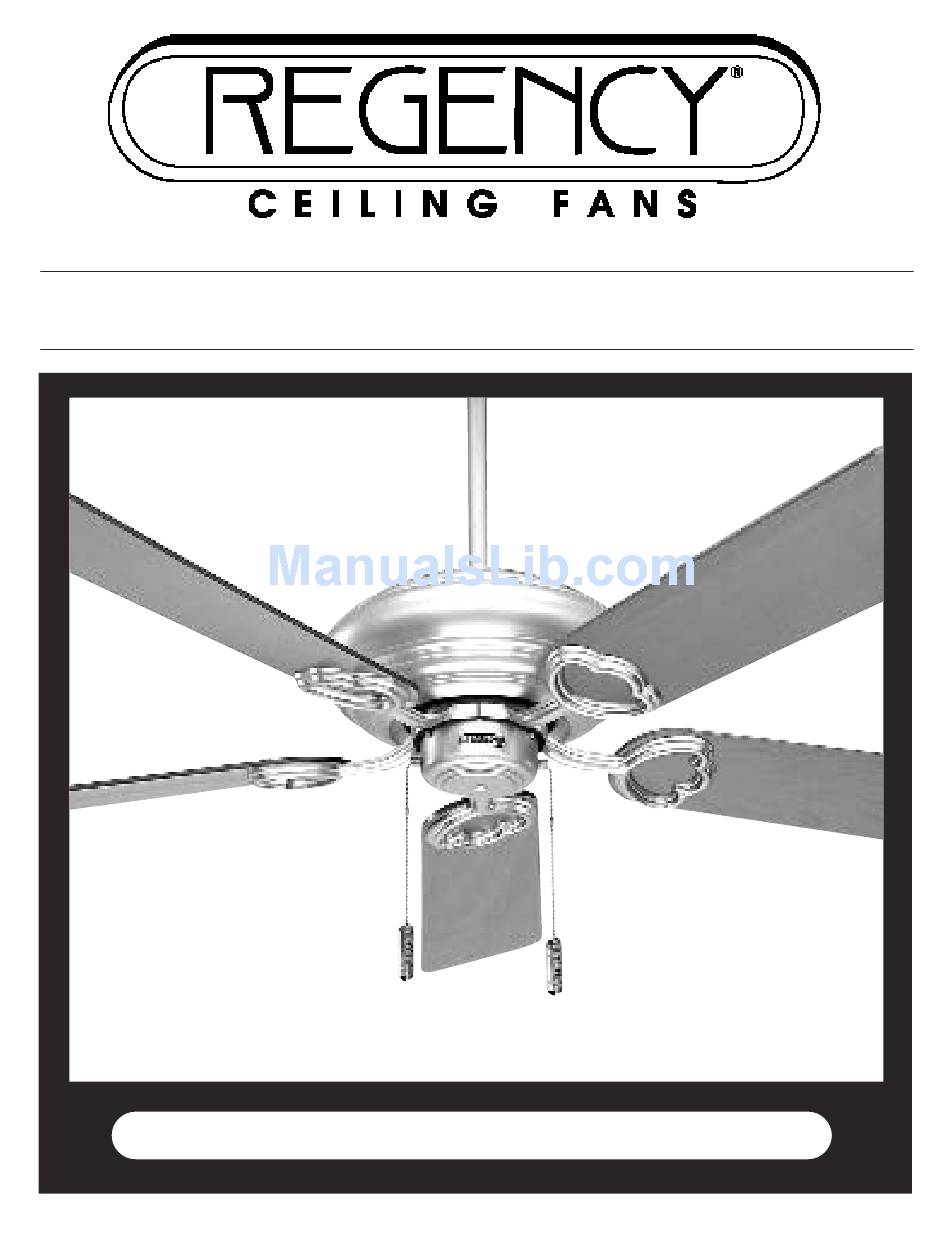

- Page 1 ’ • • EILING WNER ANUAL • E • NVOY 5/04 WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 & O ENERAL NSTALLATION PERATION NSTRUCTIONS MPORTANT AFEGUARDS 1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning. 2. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All electrical connections must be made in accordance with local codes, ordinances and/or the National Electric Code.
-
Page 3: Important Safety Precautions
MPORTANT AFETY RECAUTIONS Thank you for choosing a Regency Ceiling Fan. You have chosen the best! Your new ceiling fan has been designed to provide many years of service and enjoyment. Warnings: • Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting. -
Page 4: Unpacking Your Fan
NPACKING 1. Unpack your fan and check the contents. Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing. Remove all parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged. -
Page 5: Installing The Mounting Bracket
REPARATION Uplights (on top Parts Canopy of fan motor identification housing) Collar Downrod Cover assembled Blade Motor Housing Detachable Switch Blade Housing Pull Pull Chain Chain REPARATION Verify you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove motor from packing. -
Page 6: Installing The Fan
NSTALLING TTACH OWNROD 1. Carefully support fan body (motor) in its styrofoam packing with the mounting collar (where the wires come out) facing upward. 2. Remove ball from downrod by loosening set screw in the side of the ball. Slide ball down and remove ball pin; remove ball. - Page 7 NSTALLING THE ANG THE FAN 1. Lift ball/downrod/fan into hanger bracket opening. NOTE: The tab opposite hanger bracket opening should fit in slot on ball. 2. Make wire connections, (refer to section titled “Electrical Connections”). 3. Slide canopy up and fasten to hanger bracket with 4 screws provided. WARNING: To avoid damaging the blade arms and blades, do not install them onto fan until fan is fastened to ceiling.
-
Page 8: Electrical Connections
LECTRICAL ONNECTIONS Be sure electricity is turned off at the main power box before wiring LECTRICAL ONNECTIONS 1. Four wires are connected to the fan. Black – this is the “hot” power to run fan. White – this is the “common” power to run fan and light. Blue –... -
Page 9: Blade Attachment
LADE TTACHMENT LADE TTACHMENT 1. Place fiber washer on screw. Insert this assembly through the blade and start the screw into the blade arm. Repeat this procedure without tightening the screw until all 3 screws have been started into the blade arm (Fig. 1). NOTE: Fans that have painted finishes may be packed with gaskets that can be used between the blade arm and blade to help prevent a clicking noise that may develop if blade screws loosen over time. - Page 10 NSTALLATION OF EMOVABLE WITCH OUSING NOTE: Be sure the power is off before installing. 1. Loosen the 3 side screws on switch housing hub halfway. 2. If installing light kit, carefully remove light kit plug in bottom of switch housing. Attach light kit to switch housing per instructions supplied with light kit.
-
Page 11: Operation
PERATION Turn on the power and check operation of the fan. The fan is controlled by the use of the fan speed pull chain as follows: one pull = high speed two pulls = medium speed three pulls = low speed four pulls = off For proper functions, ensure that the fan speed pull chain is pulled down fully and released each time. -
Page 12: Care And Cleaning
HANK YOU FOR PURCHASING A EGENCY EILING Write to us at: Regency Ceiling Fans P.O. Box 730 Fenton, MO 63026 Visit us on the Web at: www.regencyfan.com 5/04 Regency Ceiling Fans...
