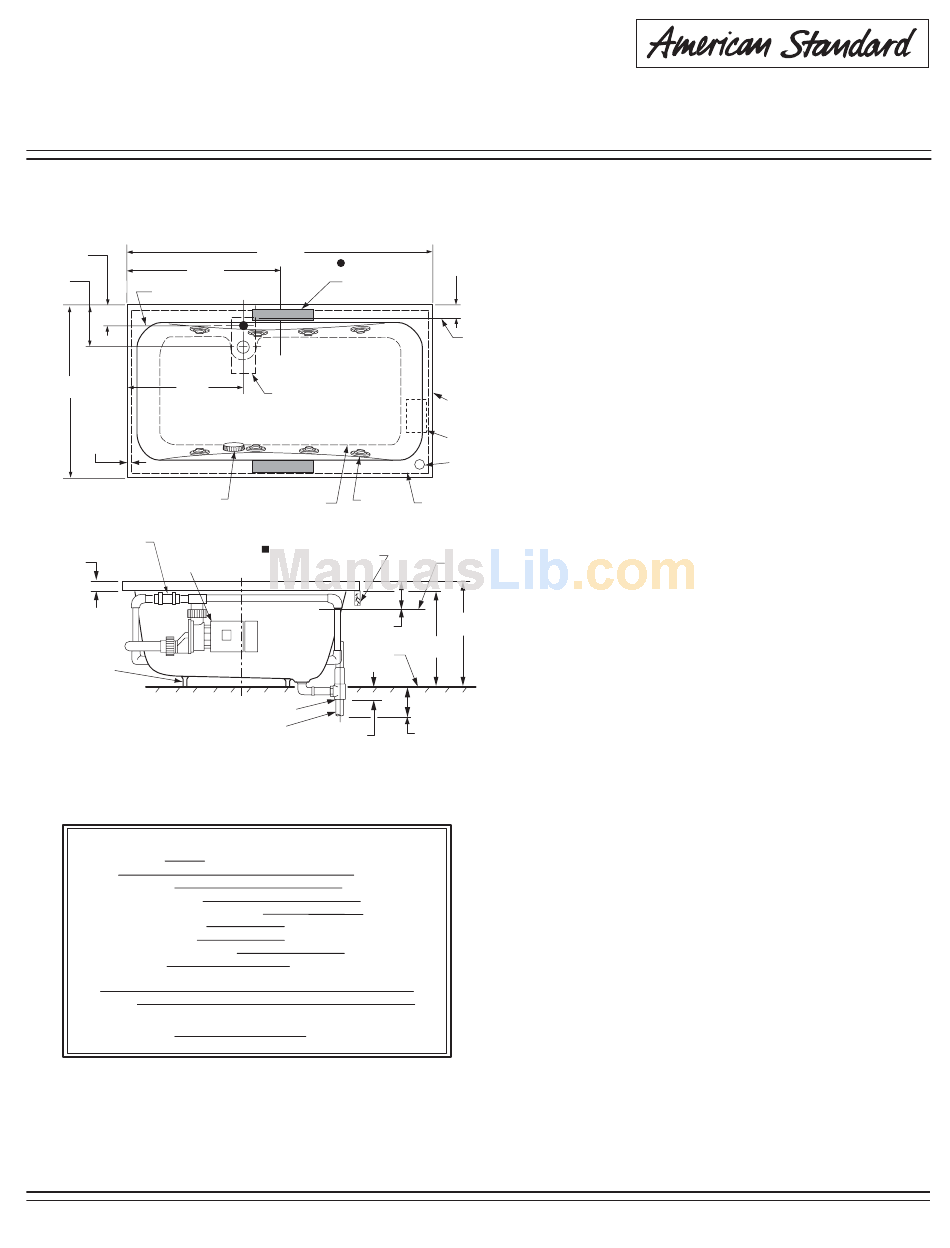

American Standard Town Square 2742.XXXW Series Installation Instructions

TOWN SQUARE™
6' X 42"
HIGH GLOSS ACRYLIC
SHOWN LESS ALL FITTINGS
4"
(102mm)
35-3/4"
(908mm)
13-1/4"
(337mm)
C/L OF DRAIN OUTLET
41-3/4"
26-3/4
(1060mm)
(679mm)
3/4"
(19mm)
SUCTION
SAFE-T-
HEATER
REMOVABLE
BLANK
2"
(51mm) PUMP
INTEGRAL
FEET
SUPPORT
1-1/2" N.P.T. THREADS
1-1/2" O.D.TAILPIECE
GENERAL SPECIFICATIONS FOR 2742 WHIRLPOOL
INSTALLED SIZE
71-1/2 x 41-3/4 x 22 In. (1816 x 1060 x 559mm)
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT 3 )
WHIRLPOOL ELECTRICAL SPECIFICATIONS
WHIRLPOOL PUMP
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
753027-100 REV. E
2742.XXXW SERIES
WHIRLPOOL/BATHING POOL

INSTALLATION INSTRUCTIONS

71-1/2"
(1816mm)
INTEGRAL
FITTING DECK
2-1/4" X 14"
(57 X 356mm)
FLOOR CUTOUT
5" X 15"
(127 X 381mm)
OUTLINE OF
JETS (8)
SKID RESISTANT
SURFACE
LEVELING STRINGER
(NOT FOR SUPPORT)
3-1/4"
(83mm)
ROUGH
(508mm)
FLOOR
3"
5/8"
(76mm)
(16mm)
115 Lbs. (52 Kg.)
690 Lbs. (313 Kg.)
69 Gal. (261 L)
60 Gal. (227 L)
41 x 21-1/2 In. (1041 x 546mm)
62 x 31-1/2 In. (1574 x 800mm)
14-1/4 In. (362mm)
33 Lbs./Sq.Ft. (163 Kgs./Sq.m)
27.8
55.7
2.1 HP, 14.4 AMPS ,120V.
T HANK Y OU .. .
for selecting an American Standard bath. Your
new bath is shipped to you after careful
inspection. The whirlpool version is completely
assembled with pump, motor, and system
3"
piping. All you need to finish the installation
(76mm)
are your selected fittings and electrical
connections for a whirlpool.
To insure maximum performance and pleasure
EDGE OF
FLOOR
from
CUTOUT
instructions and cautions.
PROVIDE ACCESS
List of Optional Components (not included):
TO PUMP FOR
SERVICE ON ALL
• Safe-T-Heater 9075.120*
INSTALLATIONS
List of Required Components (not included):
PUMP
• Drain 1594.170
ON/OFF
SWITCH
• Bath Filler
OUTLINE OF CUTOUT List of Required Tools and Supplies:
70" X 40-1/4"
Tools
(1778 X 1022mm)
• Level
• Tape Measure
C/L OF
OVERFLOW • Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard
22"
(559mm)
Woodworking Tools
20"
• Personal Safety
Equipment
• Caulking Gun
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for
any shipping damage. If such damage is found,
report it to your vendor immediately.
After inspection and during installation, protect
the bath from construction damage. After
installation, and before enclosing with wallboard,
tile, etc., water test the unit and check for leaks.
Do not make modifications to the whirlpool
system or remove pump from factory mounting.
This could adversely affect the safety and
performance of the whirlpool and void the
warranty. Do not handle or move the whirlpool by
the pump, motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not
provided with the bath and must be ordered
separately. Framing and enclosing materials are
provided by others.
Protect all finished surfaces of the whirlpool
during construction and installation using a drop
cloth.
WARNING! Do not lift whirlpool by the piping
harness at any time.
© American Standard Inc. 2007
All product names listed herein are trademarks
of American Standard Inc. unless otherwise noted.
this product, please
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 3 or 2 x 2
Stringers
• Drop Cloth
• 20 amp GFI Outlet
• Cement, Plaster,
Grout
follow the
