Summary of Contents for Tannoy V8
- Page 1 User Manual...
-
Page 2: Table Of Contents
12.5 Secur – ET VTH Pole mount 12.6 Secur – ET VCS Ceiling Saddle 12.7 Secur – ET VPC Pole Clamp 12.8 Secur – ET V8B Wall Mounting Bracket System Configuration & OEM Controllers V8 Recommended Service Parts & Accessories Warranty Declaration of Conformity... -
Page 3: Introduction

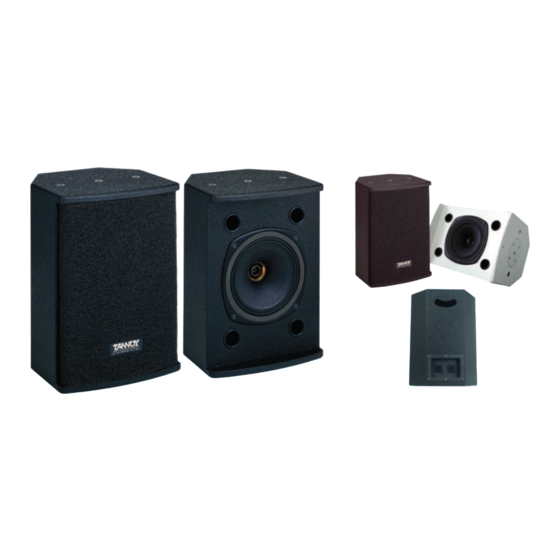

Dual Concentric™ which allows either vertical or horizontal mounting without affecting sound quality or compromising performance. The V8 comprises one 200mm (8”) Dual Concentric driver in which the low frequency (LF) and high frequency (HF) sources are coincidentally aligned to a point source, resulting in a smooth uniform frequency response over a wide area of coverage either as a portable stand alone system or in a multi-cabinet array. -
Page 4: Polarity Checking
Cable choice consists mainly of selecting the correct cross sectional area in relation to the cable length and the load impedance. A small cross sectional area would increase the cables series resistance, inducing power loss and response variations (damping factor). Connectors should be wired with a minimum of 2.5 sq. -
Page 5: Amplification & Power Handling
6. Crossovers The V8 is supplied as standard for passive operation via the internal crossover network. If higher peak outputs and additional low frequency output is required then the V8 can be used in conjunction with... -
Page 6: Arraying
60deg As shown in the above diagram, one of the V8 cabinets is inverted to allow the optimum splay angle to be achieved. The grill can be simply removed from this cabinet and be replaced in the correct orientation. -
Page 7: Dimensions
9. Dimensions 45deg 30deg 145.0 180.0 275.0 180.0 145.0 280.0 50.8 388.0 107.9 194.0... -
Page 8: Performance Data
Unprocessed Anechoic Frequency Response, 1 watt @ 1 metre Impedance A comprehensive range of measurements including off axis frequency response curves, octave & third octave polar diagrams (single & two cabinet arrays) and beamwidth plots as well as Ease data can be downloaded http://www.tannoy.com/ from... -
Page 9: Technical Specifications
(3) Unweighted pink noise input, measured at 1m in an anechoic chamber. All Tannoy V Series products can be used with the Tannoy TDX2 Digital Controller for optimum system performance and when being used with various sub bass systems. Please visit our website at www.tannoy.com... -
Page 10: Rigging & Suspension
Tannoy Professional products, or any other devices. Using Tannoy Professional hardware for any purpose other than that indicated in this guide is considered to be improper use. Such use can be very dangerous as overloading, modifying, assembling in anyway other than that clearly stated in the manual, or damaging Tannoy Professional hardware will compromise safety. -
Page 11: Secur - Et V8Y Yoke Bracket
The V8Y is a discreet yoke style bracket, available in both black and white, and is used to mount the Tannoy V8 in both portrait and landscape orientations. The Tannoy V8 loudspeaker is fixed to the bracket using the M10 bolts and washers supplied in the accessory pack Only the screws, fasteners, shakeproof and plain washers specified on figure 3. -
Page 12: Secur Et- Vcb2 & Vcb4
The VCB2 cluster bar is available in both black and white finishes and provides a platform onto which 2 x Tannoy V8 loudspeakers can be mounted using the V8Y yoke bracket (not supplied in the VCB2 kit). A number of different loudspeaker arrangements can be made depending on the application and the coverage pattern required (see figures 1 &... - Page 13 VCB2 Contents of VCB2 Description Quantity Cluster Bar Washer M10 Plain Screw M10x40 Button Head M10 Nyloc Nut Blanking Plug VCB4 Contents of VCB4 Description Quantity Cluster Bar Washer M6 Washer M10 Plain Screw M10x40 Button Head Screw M6 x35 Button Head M6 Nyloc Nut M10 Nyloc Nut Joining Plate...
-
Page 14: Secur - Et Veb Eyebolts
12.4 SECUR ET – VEB Eyebolt The Tannoy V8 loudspeaker can be flown with high quality VEB M10 eyebolts with collar to BS4278:1984. To install the VEB M10 eyebolts remove the original M10 counter sunk screws from the locations you wish to install the VEB M10 eyebolts. -
Page 15: Secur - Et Vth Pole Mount
Fig 1. 12.7 SECUR – ET VPC Pole Clamp The VPC pole clamp can be used along with the V8Y, VCB2 & VCB4 to suspend a Tannoy V8 loudspeakers from an overhead bar, truss or suitable structure. The following items are included with each... -
Page 16: Secur - Et V8B Wall Mounting Bracket
12.8 SECUR – ET V8B Wall Mounting Bracket The V8 can be wall or ceiling mounted by using the V8B bracket which is designed to offer the maximum flexibility in selecting desired angles. The V8B is supplied with M8 bolts for fixing to the loudspeaker, hinge clips which can be used to alter the angle of the wall fixing plate and an allen key to secure the arm length adjustment as well as the desired angle of ‘tilt’... -
Page 17: System Configuration & Oem Controllers
TX1 & TDX2 as part of a large scale integrated system. The V8 has been designed to need no external equalisation to overcome system limitations. If the V8 is to be used alone with additional bass enhancement required and have the frequency response limits... -
Page 18: Warranty
Work under warranty should only be carried out by a Tannoy Professional dealer or service agent. This warranty in no way affects your statutory rights. For further information please contact your dealer or distributor in your country. If you cannot locate your distributor please contact Customer Services, Tannoy Ltd at the address given below. -
Page 19: Declaration Of Conformity
16. Declaration of Conformity The following apparatus is/are manufactured in the United Kingdom by Tannoy Ltd of Rosehall Industrial estate, Coatbridge, Scotland, ML5 4TF and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives relevant to Domestic Electrical Equipment. The apparatus is designed... - Page 20 Strathclyde, ML5 4TF, SCOTLAND Telephone: +44 (0)1236 420199 Fax: +44 (0)1236 428230 Tannoy North America Inc, Suite 1. 335 Gage Avenue, Kitchener, Ontario, CANADA, N2M 5E1 Telephone: (519) 745 1158 Fax: (519) 745 2364 Tannoy Nederland BV, Anthonetta Kuijlstraat 19, 3066 GS, Rotterdam THE NETHERLANDS Telephone: (010) 2860554 Fax: (010) 2860431 Issue 1.0 Part No.
