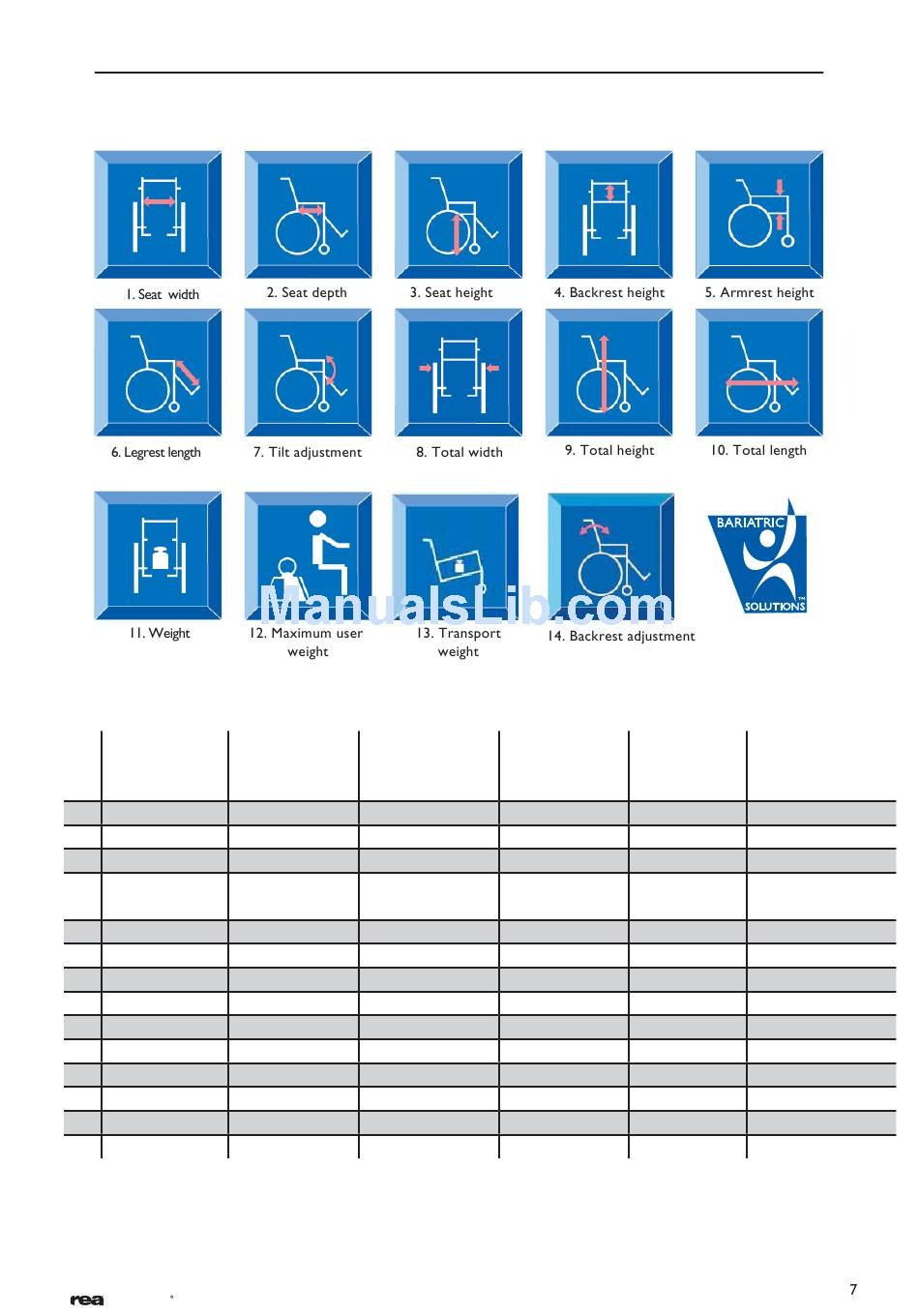

3.1 DIMENSIONS AND WEIGHT

AZALEA AZALEA
ASSIST
1. 390-550 MM 390-590 MM
2. 430-500 MM 430-500 MM
3. 400/450 MM 400/450 MM
4. 560-790 MM 560-790 MM
540-715 MM 540-715 MM
5. 240-360 MM 240-360 MM
6. 330-500 MM 330-500 MM
7. -1° - 25° -1° - 25°
8. SW+250 MM SW+220 MM
9. 950 - 1020 MM 950 - 1020 MM
10. 950 - 1020 MM 950 - 1020 MM
11. 34 KG 34 KG
12. 135 KG 135 KG
13. 16.5 KG 20.5 KG
14. 0° - 30° 0° - 30°
Azalea
R

3. Technical data

AZALEA TALL AZALEA BASE AZALEA
390-590 MM 340-590 MM
480-550 MM 380-500 MM
500 MM 400/450 MM
560-790 MM
540-715 MM
240-360 MM 240-360 MM
330-500 MM 330-500 MM
-1° - 25° -3° - 30°
SW+220 MM SW+220 MM
1000 - 1300 MM 900 -1300 MM
950 - 1070 MM 950 - 1020 MM
36 KG 20 KG
135 KG 135 KG
18.7 KG 15 KG
0° - 30° -3° - 30°
MINOR
340-440 MM
380-450 MM
400/450 MM
- 550-650 MM
240-360 MM
330-500 MM
-1° - 25°
SW+ 220 MM SW+250 MM
900-1250 MM
900-970 MM
32 KG
75 KG
14.5 KG
0° - 30°
AZALEA MAX
550-710 MM
530-600 MM
400/450 MM
500 MM
320-420 MM
330-500 MM
1°-23°
1020-1240 MM
1050-1120 MM
54 KG
180 KG
26 KG
0° - 30°
