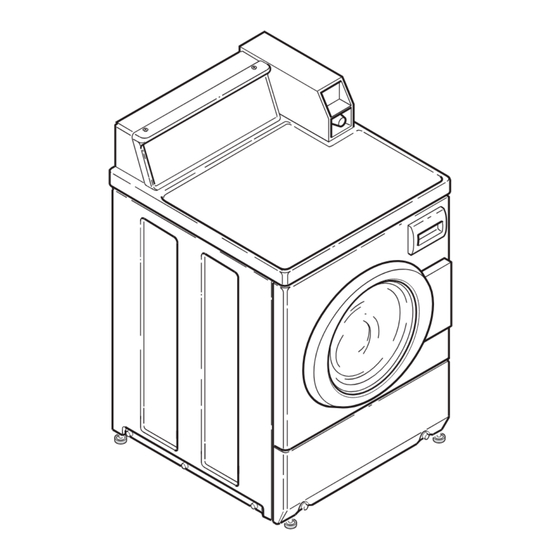

Alliance Laundry Systems FLW1526C Installation & Operation Manual

Frontload washers metered commercial
Hide thumbs Also See for FLW1526C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual

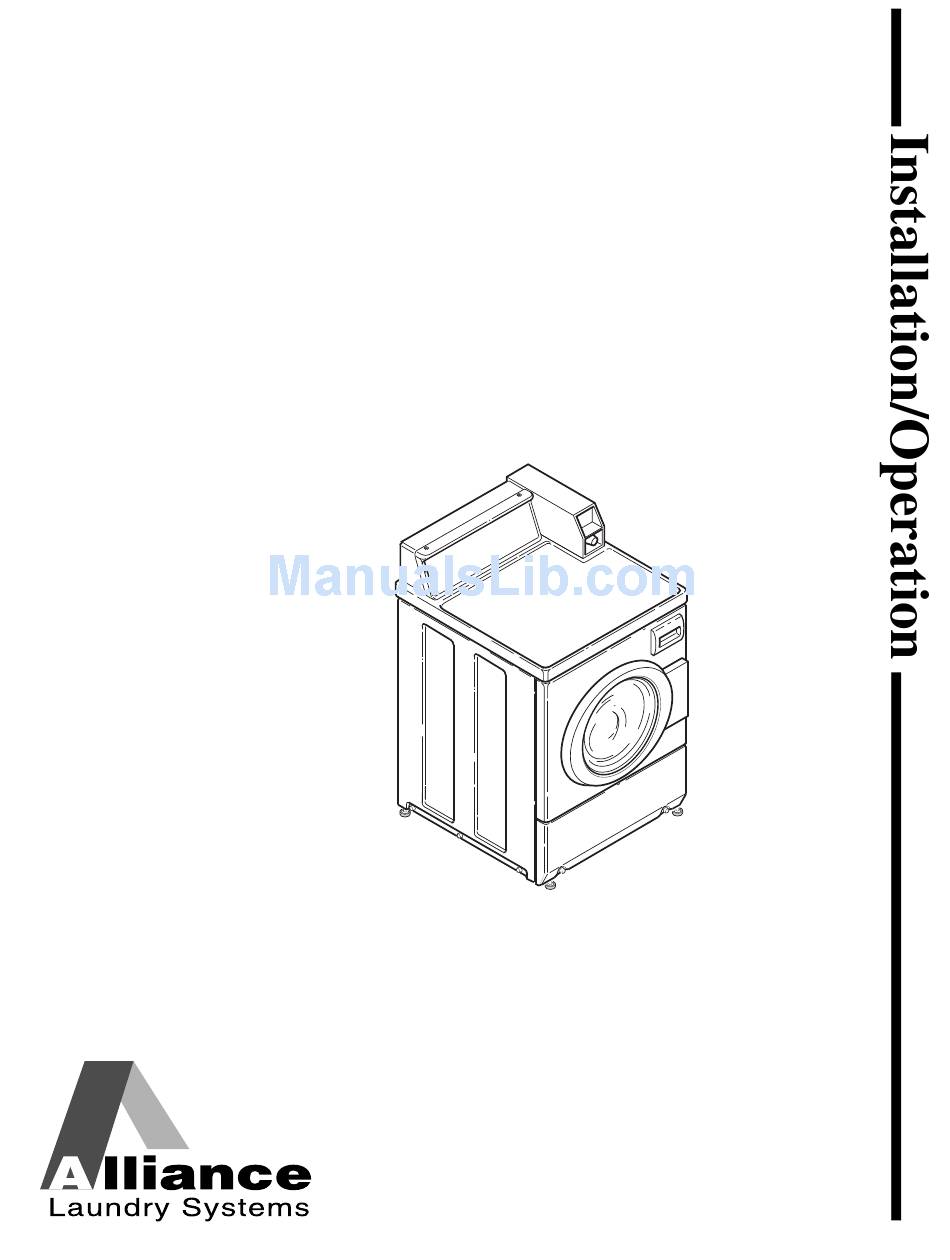

Frontload Washers
NOTA: Para bajar una copia de
estas instrucciones en español,
visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Metered Commercial
www.comlaundry.com
FLW1526C
Part No. 803148R1
March 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLW1526C and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems FLW1526C

Summary of Contents for Alliance Laundry Systems FLW1526C

  • Page 1 Frontload Washers Metered Commercial NOTA: Para bajar una copia de FLW1526C estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 803148R1 www.comlaundry.com March 2009...
  • Page 3 WARNING Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage. W030 NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.

  • Page 4: Table Of Contents

    Table of Safety Information................Explanation of Safety Messages............Important Safety Instructions ............... Contents Installation................... Dimensions and Specifications............. Before You Start ................... Tools ....................Installing the Washer ................Step 1: Position Washer Near Installation Area ......Step 2: Connect Fill Hoses............... Step 3: Connect Drain Hose to Drain Receptacle ......

  • Page 5: Safety Information

    Safety Information Explanation of Safety Messages Important Safety Instructions Throughout this manual and on machine decals, you (Save These Instructions) will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific WARNING instructions. These precautions are intended for the personal safety of the operator, user, servicer, and To reduce the risk of fire, electric shock, those maintaining the machine.
  • Page 6 Safety Information 11. Do not repair or replace any part of the washer, or 20. Be sure water connections have a shut-off valve attempt any servicing unless specifically and that fill hose connections are tight. CLOSE recommended in the user-maintenance the shut-off valves at the end of each wash day.

  • Page 7: Installation

    Installation Dimensions and Specifications 22.06 in. (56.03 cm) 24 in. (61.0 cm) 13.1 in. (33.3 cm) 28 in. (71.1 cm) 26.9 in. (68.3 cm) 2 in. FLW2209N (5.1 cm) 1.5 in. (3.8 cm) FLW2209N 803148 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 8: Before You Start

    Installation Before You Start NOTE: If the washer is delivered on a cold day (below freezing), or is stored in an unheated room Tools or area during the cold months, do not attempt to operate it until the washer has had a chance to For most installations, the basic tools you will need warm up.

  • Page 9: Installing The Washer

    Installation Installing the Washer Step 2: Connect Fill Hoses Step 1: Position Washer Near Installation WARNING Area Under certain conditions, hydrogen gas Move washer so that it is within 4 feet (1.2 meters) of may be produced in a hot water system the desired area of installation.
  • Page 10 Installation Turn on the water supply faucets and flush the lines for IMPORTANT: Hoses and other natural rubber approximately two minutes to remove any foreign parts deteriorate after extended use. Hoses may materials that could clog the screens in the water develop cracks, blisters or material wear from the mixing valve.

  • Page 11: Step 3: Connect Drain Hose To Drain Receptacle

    Installation Risers Risers (or air cushions) may have to be installed if the pipes knock or pound when flow of water stops. The risers are more efficient when installed as close as possible to the water supply faucets (refer to Figure 5).

  • Page 12: Step 4: Position And Level The Washer

    Installation Step 4: Position and Level the Washer NOTE: DO NOT slide washer across floor if the leveling legs have been extended, as legs and base could become damaged. WARNING Remove rubber feet from accessories bag and place on Washers elevated above floor level must all four leveling legs.

  • Page 13: Step 5: Remove The Shock Sleeves And Shipping Brace

    Installation Step 5: Remove the Shock Sleeves and Shipping Brace Remove front access panel by removing the two screws at the bottom of the panel. Remove the five bolts and lockwashers from shipping brace with 9/16 in. wrench and remove brace. Refer to Figure 9.

  • Page 14: Step 7: Plug In The Washer

    Installation Step 7: Plug In the Washer Electrical Requirements (120 Volt, 60 Hertz with 3-Prong Grounding Plug) NOTE: The wiring diagram is located in the control hood. 120±12 0 V.A.C. V.A.C. WARNING 120±12 To reduce the risk of fire, electric shock, V.A.C.

  • Page 15: Step 8: Check Installation

    Installation Grounding Instructions NOTE: You have the option of using a screw type lock or a 1/4 turn lock on the meter case service The washer must be grounded. In the event of door. If you choose to use a screw lock, then the malfunction or breakdown, grounding will reduce the special bracket (located inside the meter case) must risk of electric shock by providing a path of least...

  • Page 16: Operation

    Operation Operation Instructions Step 2: Close Loading Door Close loading door tightly. The washer will not IMPORTANT: Prior to first wash, use an all- operate with the loading door open. purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside of washtub.

  • Page 17: Step 3: Add Laundry Supplies

    Operation Step 3: Add Laundry Supplies Step 4: Set Fabric Selector Open dispenser drawer. Measure and add low sudsing, Push touchpad for NORMAL, PERM PRESS or high efficiency (HE) detergent (1), bleach (2) and DELICATES/BULKY cycle. Light indicates fabric softener (3) to the dispenser drawer (refer to selection.

  • Page 18: Step 6: Set Soil Level

    Operation Step 6: Set Soil Level To Insert Card Push Soil Level touchpad to select LIGHT, MEDIUM Insert card into opening. or HEAVY. Light indicates selection. FLW2230N DRY1927N FLW2230N Figure 18 Figure 20 Step 7: Insert Coin(s) or Card Step 8: Start Washer To Insert Money After vend price has been satisfied, push the START pad.

  • Page 19: Indicator Lights

    Operation Indicator Lights LIGHT LIGHT is lit when the LIGHT soil level is selected. INSERT COINS/CARD MEDIUM INSERT COINS/CARD is lit to prompt the user to insert coins or card to satisfy the vend price. When MEDIUM is lit when the MEDIUM soil level is INSERT COINS/CARD is lit, the digits show the vend selected.

  • Page 20: Maintenance

    Maintenance User-Maintenance Instructions Replacing Hoses Hoses and other natural rubber parts deteriorate after Cold Weather Care extended use. Hoses may develop cracks, blisters or If the washer is delivered on a cold day (below material wear from the temperature and constant high freezing), or is stored in an unheated room or area pressure they are subjected to.

  • Page 21: Reinstallation Of Shipping Materials

    Maintenance Reinstallation of Shipping Materials Cleaning Foreign Object Trap To prevent damage while moving the washer, the The washer’s pump has a trap that may collect foreign shipping materials MUST be reinstalled. objects. The trap may need to be cleaned if water is draining slower than usual.

  • Page 22: Troubleshooting

    Troubleshooting Try these troubleshooting tips before making a service call. They may save time and money. Washer Symptom Possible Cause/Solution • Make sure power cord is plugged all the way into the electrical outlet. Won’t Fill • Make sure hot and cold water faucets are turned on. •...
  • Page 23 Troubleshooting Washer Symptom Possible Cause/Solution • Make sure washer is level. Uneven leveling can cause vibration. Vibrates/Moves Slightly • Make sure washer is installed on a solid, sturdy and level floor. The washer should not be installed on carpeting, soft tile, a platform or other weakly supported structures. •...

  • Page 24: Contact Information

    Contact Information If service is required, contact the nearest Factory When calling or writing about your unit, PLEASE Authorized Service Center. GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the If you are unable to locate an authorized service center nameplate.

  • Page 26: Installer Checklist

    Installer Checklist Fast Track for Installing the Washer (Refer to the manual for more detailed information)   • Position Washer • Remove the Near Installation Shock Sleeves and Area. Shipping Brace. FLW2124N FLW2124N CHECK CHECK H135IE0A H135IE0A   •...
