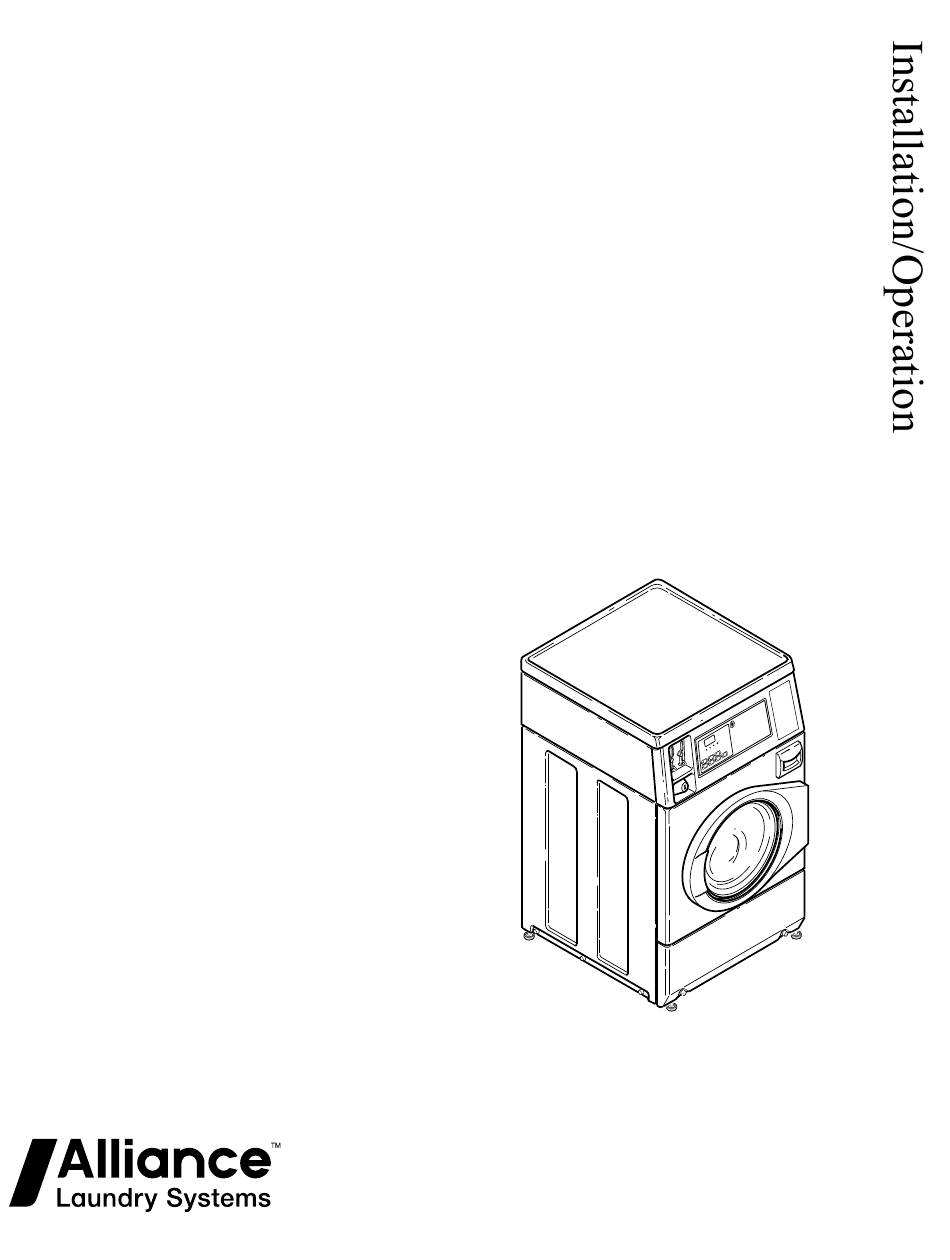

- Page 1 Frontload Washers Metered Commercial Original Instructions Keep These Instructions for Future Reference. FLW1542C_SVG CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No. 805987R3 www.alliancelaundry.com April 2019...
- Page 3 Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand. Read all instructions before using unit. This product uses FreeRTOS V7.2.0 (www.freertos.org). © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT...
-
Page 4: Table Of Contents
Cold Weather Care..................21 © Copyright 2019, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. - Page 5 Cleaning Glass Sealing Area..............21 Replacing Hoses..................21 Filter Screens.................... 21 Extended Non-Use..................21 Cleaning Foreign Object Trap..............21 Reinstallation of Shipping Materials............22 Troubleshooting..................23 Contact Information................25 Installer Checklist.................26 © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT...
-
Page 6: Safety Information
(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, un- less they have been given supervision or instruction concern- © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... - Page 7 Failure to install, maintain, and/or operate this washer accord- ing to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT...
-
Page 8: Dimensions And Specifications
371 mm [14.6 in.] 683 mm [26.875 in.] 52 mm [2.04 in.] 704 mm [27.73 in.] I (with door closed) 40 mm [1.59 in.] 333 mm [13.1 in.] © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... - Page 9 107 mm [4.2 in.] 104 mm [4.1 in.] 52 mm [2.04 in.] 704 mm [27.73 in.] K (with door closed) 40 mm [1.59 in.] 333 mm [13.1 in.] © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT...
-
Page 10: Installation
NOTE: Install dryer before washer. This allows room for attaching exhaust duct. NOTE: Some moisture in the wash drum is normal. Wa- FLW2378N_SVG ter is used during testing at the manufacturer. Figure 2 © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 11: Connect Fill Hoses
Warm water temperature is dependent upon the water temperature and the pressure of both the hot and cold water supply lines. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 12: Connecting Hoses
If using black rubber hoses with black and brass cou- plings: Insert filter screens into the BLACK colored hose couplings (BSPP thread). Insert rubber washers © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 13: Risers
The risers are more ef- ficient when installed as close as possible to the water supply 2.4 m [8 ft.] 0 [0] taps. Refer to Figure 8 . © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 14: Standpipe Installation
Cut hose to desired length. stalling elbows, or causing bends will decrease c. Reattach hose and hose clamp. drain flow rates and increase drain times, impairing machine performance. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 15: Position And Level The Washer
3. Place a level on the raised portion of cabinet top and check if the unit is level from side to side and front to back. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 16: Plug In The Washer
DO NOT use an adapter. 2. Earth/Ground Prong • DO NOT operate other appliances on the same circuit. 3. 240 Volt/50 Hertz 4. 0 Volt Figure 14 © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 17: Earth/Ground Instructions
Check Installation 1. Refer to Installer Checklist on the back cover of this manual and make sure that unit is installed correctly. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 18: Operation
Close Loading Door Close loading door tightly. The washer will not operate with the loading door open. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 19: Set Fabric Selector And Wash Temperature
2. Door must be closed to start washer. FLW2361N_SVG Figure 18 Insert Coins or Card Insert Coins 1. Insert coin(s) in coin slot. 2. Check pricing as seen on digital display. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 20: Indicator Lights
To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all moving parts have stopped. W092 © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 21: Maintenance
Usually a mild soap solution will work. If there is an extreme build-up of minerals from a hard water supply, the surfaces may need to be cleaned with a lime removal chemical. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 22: Reinstallation Of Shipping Materials
Refer to Figure 23 . 8. Tighten bolt while pressing washer against rear panel to en- sure spacer is fully inserted. FLW2296N_SVG 1. Shipping Brace Figure 22 © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 23: Troubleshooting
Refer to the Installation instructions to make sure that the drain hose has been proper- ly installed. • Foreign object trap in pump may be clogged. Clean the trap. Refer to Maintenance section. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... - Page 24 “H” on the valve bracket) and cold tap is connected to cold mixing valve (indica- ted with “C” on the valve bracket). • Make sure laundry room water heater is adjusted properly. © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT...
-
Page 25: Contact Information
+1 (920) 748-3950 for the name Table continues... and address of the nearest authorized parts distributor. FLW2305N_SVG 1. Serial Plate Figure 24 © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT... -
Page 26: Installer Checklist
Non-Gravity Drain Plug In the Washer Models - Connect Drain Hose to Drain Receptacle. CHECK CHECK TLW2170N_SVG FLW2338N_SVG1 Refer to the manual for more detailed information © Copyright, Alliance Laundry Systems LLC - Part No. 805987R3 DO NOT COPY or TRANSMIT...
