Frontload Washers
Metered Commercial
Original Instructions
Keep These Instructions for Future Reference.
FLW1542C_SVG
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 807869ENR2
www.alliancelaundry.com
July 2023
Advertisement
Table of Contents
Related Manuals for Alliance Laundry Systems FLW1542C SVG
Summary of Contents for Alliance Laundry Systems FLW1542C SVG

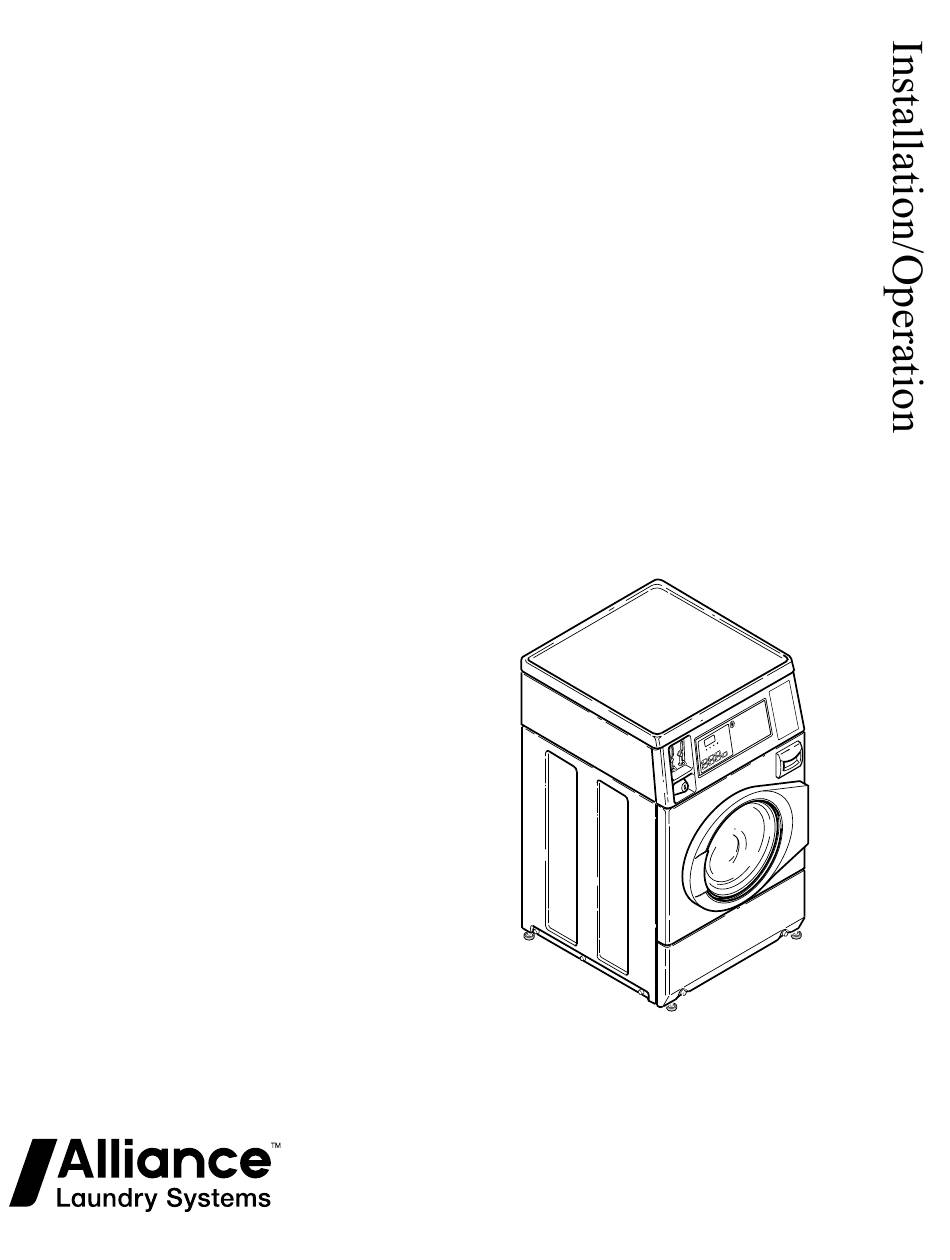

- Page 1 Frontload Washers Metered Commercial Original Instructions Keep These Instructions for Future Reference. FLW1542C_SVG CAUTION: Read the instructions before using the machine. (If this machine changes ownership, this manual must accompany machine.) Part No. 807869ENR2 www.alliancelaundry.com July 2023...
- Page 3 Channel 1 through 11. Users of this product are cautioned not to make modifications or changes that are not approved by Alliance Laundry Systems, CANADA - CAN ICES-3(B)/NMB-3(B) LLC. Doing so may void the compliance of this product with ap-...
- Page 4 The user must stop operating the device immediately should harmful interference is caused and shall not resume until © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
- Page 5 This is a safety rule for all appliances. • Cleaning and user maintenance shall not be made by children without supervision. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
- Page 6 Common sense, caution and care must be exer- cised when installing, maintaining, or operating the washer. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
-
Page 7: Table Of Contents
Cold Weather Care..................23 © Copyright 2023, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. - Page 8 Filter Screens.................... 23 Extended Non-Use..................23 Laundry IQ (Select Models)............... 23 Cleaning Foreign Object Trap..............23 Reinstallation of Shipping Materials............24 Troubleshooting..................25 Contact Information................27 Installer Checklist.................28 © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
-
Page 9: Dimensions And Specifications
27.73 in. [704 mm] I (with door closed) 1.59 in. [40 mm] 13.1 in. [333 mm] * For ADA compliance turn legs out from base 0.5 inches. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... - Page 10 27.73 in. [704 mm] K (with door closed) 1.59 in. [40 mm] 13.1 in. [333 mm] * For ADA compliance turn legs out from base 0.5 inches. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
-
Page 11: Installation
NOTE: Install dryer before washer. This allows room for attaching exhaust duct. NOTE: Some moisture in the wash drum is normal. Wa- ter is used during testing at the manufacturer. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 12: Connect Fill Hoses
This will release any accumula- ted hydrogen gas. The gas is flammable. Do not smoke or use an open flame during this time. W029 © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 13: Water Supply Requirements
No. 20618 Fill Hose: 10 feet [3.05 m] connections at the rear of the washer. 4. Thread hose couplings onto valve connections finger tight. Then turn 1/4 turn with pliers. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 14: Risers
8.6 [32.7] 5 ft. [1.5 m] 6.8 [25.9] 6 ft. [1.8 m] 6.0 [22.7] 7 ft. [2.1 m] 5.1 [19.5] 8 ft. [2.4 m] 4.0 [15.2] © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 15: Gravity Drain Models - Connect Drain Outlet To Drain System
3. Place a level on the raised portion of cabinet top and check if the unit is level from side to side and front to back. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 16: Wipe Out Inside Of Wash Drum
Prior to first wash, use an all purpose cleaner or a detergent and water solution and a damp cloth to remove shipping dust from inside of the washer. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 17: Control Function Test
W824 When plugging in the washer: © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 18: Earth/Ground Instructions
Do not cut or Figure 15 remove the earth/ground prong from this plug. W823 © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 19: Connect Laundry Iq To Gateway (Select Models)
When washer spins at high speed, verify that it is stable. e. If it is not, after cycle is complete, refer to Position and Level the Washer to readjust leveling legs. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 20: Operation
Close Loading Door Close loading door tightly. The washer will not operate with the loading door open. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 21: Set Cycle
Set Wash Temperature 1. Insert coin(s) in coin slot. 2. Check pricing as seen on digital display. 1. Push touchpad for COLD, WARM or HOT. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 22: Start Washer
To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all START COLD moving parts have stopped. W092 FLW2479N_SVG Figure 24 © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 23: Maintenance
Hoses and other rubber parts deteriorate after extended use. Ho- ses may develop cracks, blisters or material wear from the tem- perature and constant high pressure they are subjected to. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 24: Reinstallation Of Shipping Materials
Refer to Figure 26 . 8. Tighten bolt while pressing washer against rear panel to en- sure spacer is fully inserted. FLW2296N_SVG 1. Shipping Brace Figure 25 © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 25: Troubleshooting
Refer to the Installation instructions to make sure that the drain hose has been proper- ly installed. • Foreign object trap in pump may be clogged. Clean the trap. Refer to Maintenance section. Table continues... © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... - Page 26 “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indicated with “C” on the valve bracket). • Make sure laundry room water heater is adjusted properly. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
-
Page 27: Contact Information
The serial plate will be in the location shown in Figure 27 . FLW2305N_SVG 1. Serial Plate Figure 27 © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT... -
Page 28: Installer Checklist
Receptacle. TLW2391N_SVG CHECK CHECK FLW2338N_SVG1 Gravity Drain Models - Connect Drain Outlet to Drain System. CHECK FLW2339N_SVG1 Refer to the manual for more detailed information. © Copyright, Alliance Laundry Systems LLC - Part No. 807869ENR2 DO NOT COPY or TRANSMIT...
